5 axis laser cutting machine for metal pipe processing
5 axis laser cutting machine for metal pipe processing
Specifications
Brand Name :
Mingzhou
Model Number :
L12
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Piece
Price :
USD10000~30000
Payment Terms :
By T/T
Supply Ability :
1000 Pcs/m
Delivery Time :
15 Days
Packaging Details :
Wooden Case, Pallet, Carton, Plastic Paper
Powersupply :
380V, 50Hz, 3-phase
Laser Cutting Accuracy :
±10um
Environment Temperature :
5—35 °C
Laser Generator :
BWT Or RECI Or MAX Or RAYCUS
Application :
Metal Pipe Cutting
Pipe :
φ10mm-φ120mm
Acceleration :
2.0G
Cutting Accuracy :
±0.02mm
Description

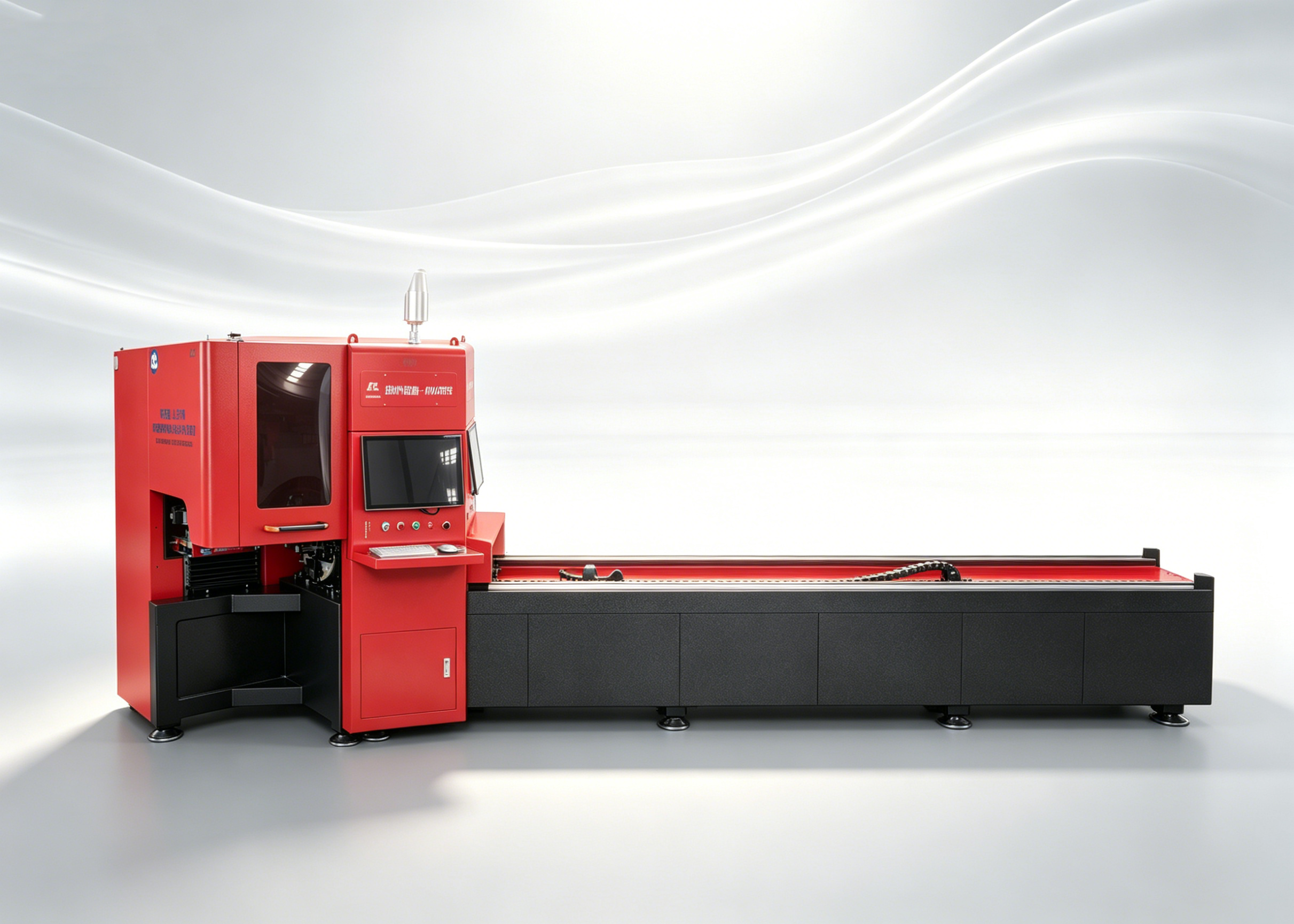

5 Axis Laser Cutting Machine for Metal Pipe Processing
The multi-functional 5-axis bevel laser pipe cutting machine integrates multiple processes including bevel cutting, straight cutting, drilling, and grooving, enabling complete pipe processing with a single machine. Utilizing advanced 5-axis linkage technology, this equipment ensures exceptional cutting precision across various metal materials such as carbon steel, stainless steel, and aluminum alloy. Suitable for both small-batch customization and large-scale production, it serves as comprehensive pipe cutting equipment for small and medium-sized processing enterprises.
5 axis laser cutting machine for metal pipe processing
Key Features
  • High-precision 5-axis linkage control system with fast response and superior positioning accuracy. Capable of bevel forming at any angle (0-60° adjustable) with bevel angle error ≤ ±0.1°. Produces flat cut surfaces free of burrs, edge collapse, and dross adhesion, eliminating need for subsequent grinding.
  • Robust machine frame constructed from high-strength steel with aging treatment for stress relief, ensuring exceptional stability, shock resistance, and minimal deformation during long-term operation. Features advanced laser generator and high-precision transmission components for extended service life and reliable performance in high-intensity industrial production.
  • User-friendly human-machine interface with built-in bevel processing parameter templates for quick recall and flexible adjustment. Supports 3D drawing import from SW and UG software, along with automatic nesting and breakpoint resume cutting functions to reduce manual intervention and improve processing efficiency.
  • High-efficiency laser cutting technology with low energy consumption, dust-free operation, and minimal noise pollution. Complies with green industrial production standards while minimizing material loss and maximizing material utilization for energy conservation and sustainable production.
Technical Specifications
Warranty 12 Months
Beam Quality 1.1m²
Acceleration 2.0G
Tolerance ±0.02mm
Application Metal Pipe Cutting
Environment Temperature 5-35 °C
Laser Generator BWT Or RECI Or MAX Or RAYCUS
Cutting Accuracy ±0.02mm
Effective Cutting Length <6000mm
Power Supply 380V, 50Hz, 3-phase
Competitive Advantages
  • Comprehensive after-sales service with 24/7/365 professional support including remote troubleshooting, on-site maintenance, and genuine spare parts to ensure uninterrupted production.
  • Original factory manufacturing with extensive R&D and production experience, delivering machines optimized for high-efficiency, material-saving, and intelligent cutting operations.
  • Advanced fiber laser technology providing high cutting speeds, stable operation, and strong adaptability to meet complex processing requirements.
  • Rigorous quality control throughout the entire production process, from raw materials to finished products, ensuring compliance with international standards for durable and reliable equipment.
  • Intelligent integration of control and high-precision cutting technology enabling easy operation without specialized drawing skills, improving efficiency and reducing operational costs.
