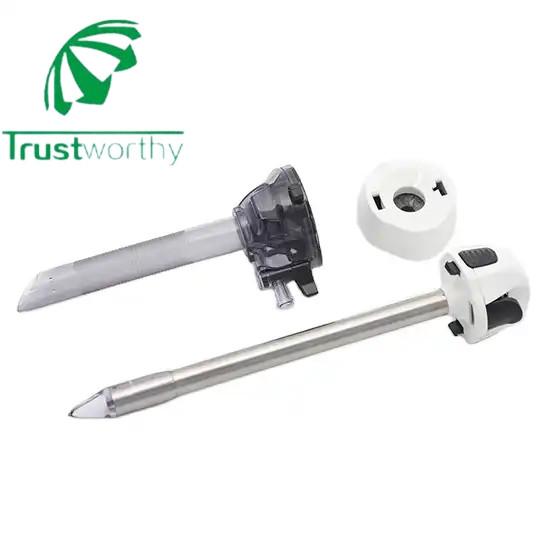

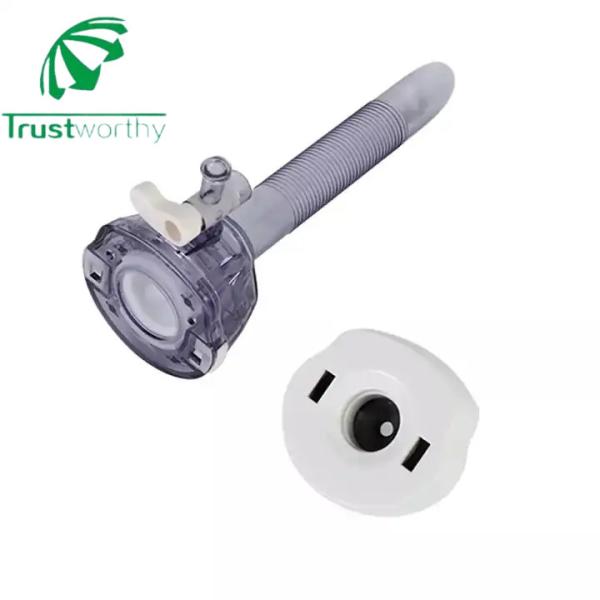

5/10/12mm Easy Operate Balloon Disposable Bladeless Trocar Laparascopy Abdominal
Specification:
Size:
| Product Name | Disposable Bladeless Trocar |
| Appearance | Reasonable color matching,easy and comfortable shape,anti- visual fatigue |
| Main Material | Puncture cone (06Cr19Ni10),Sealing cover(ABS),Injection valve and sleeve(PC) |
| Feature | Visible:The endoscope can be inserted with the puncture device so that the whole minimally invasive surgery can be visible,to avoid the damage caused by blind penetration Safe and Reliable:The unique serrated design of the cannula increases the friction between the cannula and the abdominal wal and prevents the cannula from falling off during the operation Air Tightness:Excellent dynamic sealing performance,small device switching resistance,different sizes of equipment replacement,no need for converter,convenient and fast,high surgical efficiency Detachable:The sealing assembly can be removed to facilitate the removal of large foreign body tissue. Rigidity:The puncture rod is made of high strength medical polymer material and medical stainless steel which has good rigidity |
| Package | Aseptic packaging shall be intact and the bonded sealing area shall be free of channels or perforations.The peel strength of the packaging seal shall not be less than 0.1 N/mm,the two contact surfaces shall be smooth and continuous and uniform without lamination or tearing |
| Sterility | Sterilized with confirmed ethylene oxide and product should be sterile |
| Residual EO | After sterilization with ethylene oxide,the residual ethylene oxide should not be more than 10μg/g |
Dimension:
| Model | Specification | lnner diameter for puncture casing(mm) | Outer diameter for puncture core(mm) | Total Length(mm) | Length for Puncture casing(mm) |
| DFTC-05 | 03 | 3.9 | 3.7 | 137 | 70 |
| 05 | 5.9 | 5.7 | 163 | 93 | |
| 10 | 5.9 | 5.7 | 170 | 100 | |
| 12 | 10.9 | 10.7 | 171 | 100 | |
| 15 | 12.9 | 12.7 | 193.5 | 100 |
Application operation
The disposable trocar is applicable to all the patients with laparoscopic surgery operation.
Widely used in laparoscopic surgery.
For example: gynecologic surgery, gastrointestinal surgery, hepatological surgery
A trocar is a device used to puncture human tissue to obtain a sample or perform treatment. It usually consists of a sharp needle and a connector that connects to other devices, such as a catheter or syringe. The main function of the trocar is to penetrate the skin and tissue to enter the body cavity or tissue for diagnosis or treatment without open surgery.
01 With the ergonomic appearancedesign, the trocar is comfortableto hold and use.
02 Single use to avoid cross infection.
03 Integrated design without needingthe converter improves the operation efficiency.
04 Silicone valves with high sealingprevent from airleakage
05The design oftrocar head bringsonly small wound that no needs suturing.
06 The sleeves with screw thread design provide stronger adhesive force.
