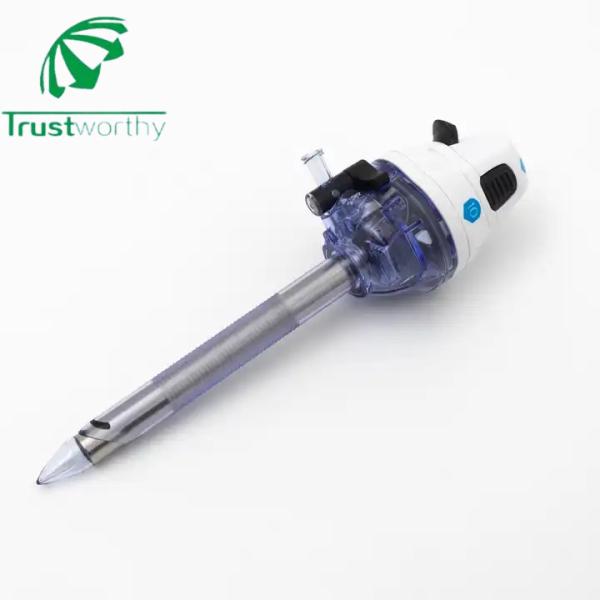

New Published Laparoscopic Abdominal Disposable Bladeless Trocar With OEM
Application operation
The disposable trocar is applicable to all the patients with laparoscopic surgery operations.
Widely used in laparoscopic surgery.
For example: gynecologic surgery, gastrointestinal surgery, hepatological surgery
Sterile Disposable Laparoscopic Trocar has applications in urologic, gynecologic laparoscopy and other abdominal procedures to establish a path of entry for endoscopic instruments. It helps to provide patient less post-operative pain, fewer wound complications, and faster recovery time.
● Low insertion force provides controlled and predictable entry, and leaves minimal fascial defects.
● Seal durability maintains the device insufflation during lengthy operation.
● Integrated stability thread design deliver high abdominal wall fixation and low drag forces to accommodate frequent instrument exchanges.
● Clear radiolucent, nonconductive sleeve allows visualization during removal of specimen.
● Single patient use, avoiding cross infection.

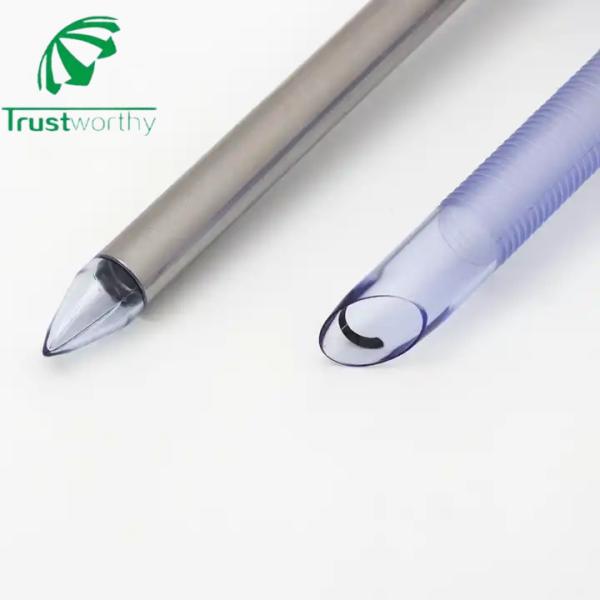

● Bladeless Optical Tip reduces need for fascial closure.
● Visualization is optically guided by a 0° endoscope.
Size:
| Item Code | Description |
| TRU103 | Bladeless trocar,stability sleeve,3 mm diameter,60 mm length |
| TRU105 | Bladeless trocar,stability sleeve,5 mm diameter,100 mm length |
| TRU110 | Bladeless trocar,stability sleeve,10 mm diameter,100 mm length |
| TRU112 | Bladeless trocar,stability sleeve,12 mm diameter,100 mm length |
| TRU205 | Dilating tip trocar,stability sleeve,5 mm diameter,100 mm length |
| TRU210 | Dilating tip trocar,stability sleeve,10 mm diameter,100 mm length |
| TRU212 | Dilating tip trocar,stability sleeve,12 mm diameter,100 mm length |
| TRU303 | Bladeless optical trocar,stability sleeve,3 mm diameter,60 mm ength |
| TRU305 | Bladeless optical trocar,stability sleeve,5 mm diameter,100 mm ength |
| TRU310 | Bladeless optical trocar,stability sleeve,10 mm diameter,100 mm ength |
| TRU312 | Bladeless optical trocar,stability sleeve,12 mm diameter,100 mm ength |
Dimension:
| Model | Specification | lnner diameter for puncture casing(mm) | Outer diameter for puncture core(mm) | Total Length(mm) | Length for Puncture casing(mm) |
| DFTC-05 | 03 | 3.9 | 3.7 | 137 | 70 |
| 05 | 5.9 | 5.7 | 163 | 93 | |
| 10 | 5.9 | 5.7 | 170 | 100 | |
| 12 | 10.9 | 10.7 | 171 | 100 | |
| 15 | 12.9 | 12.7 | 193.5 | 100 |
Application operation
The disposable trocar is applicable to all the patients with laparoscopic surgery operation.
Widely used in laparoscopic surgery.
For example: gynecologic surgery, gastrointestinal surgery, hepatological surgery
A trocar is a device used to puncture human tissue to obtain a sample or perform treatment. It usually consists of a sharp needle and a connector that connects to other devices, such as a catheter or syringe. The main function of the trocar is to penetrate the skin and tissue to enter the body cavity or tissue for diagnosis or treatment without open surgery.
01 With the ergonomic appearancedesign, the trocar is comfortableto hold and use.
02 Single use to avoid cross infection.
03 Integrated design without needingthe converter improves the operation efficiency.

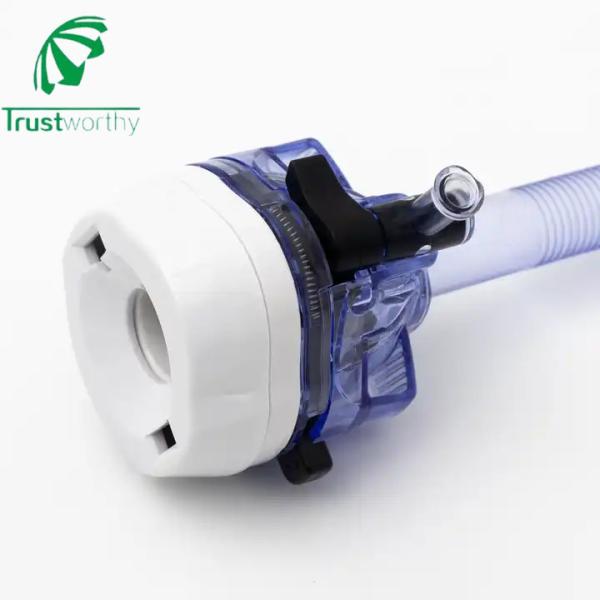

04 Silicone valves with high sealingprevent from airleakage
05The design oftrocar head bringsonly small wound that no needs suturing.
06 The sleeves with screw thread design provide stronger adhesive force.
