Surgical Instruments Medical Ultrasonic Scalpel System For Cutting Hemostasis
Surgical Instruments Medical Ultrasonic Scalpel System For Cutting Hemostasis
Surgical Instruments Medical Ultrasonic Scalpel System For Cutting Hemostasis
Surgical Instruments Medical Ultrasonic Scalpel System For Cutting Hemostasis
Surgical Instruments Medical Ultrasonic Scalpel System For Cutting Hemostasis
Surgical Instruments Medical Ultrasonic Scalpel System For Cutting Hemostasis
Surgical Instruments Medical Ultrasonic Scalpel System For Cutting Hemostasis
Surgical Instruments Medical Ultrasonic Scalpel System For Cutting Hemostasis
Surgical Instruments Medical Ultrasonic Scalpel System For Cutting Hemostasis
Surgical Instruments Medical Ultrasonic Scalpel System For Cutting Hemostasis
Surgical Instruments Medical Ultrasonic Scalpel System For Cutting Hemostasis
Surgical Instruments Medical Ultrasonic Scalpel System For Cutting Hemostasis
Specifications
Brand Name :
Trustworthy/ODM/OEM
Model Number :
TRW-US
Certification :
CE/ISO13485/CFDA
Place of Origin :
Chongqing, China
MOQ :
10 pieces
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500000 pieces per month
Delivery Time :
Sample order: within 5 days/ 1-10000 pcs: within 20 days
Packaging Details :
Plastic bag, Plastic boxes，Carton box
Application :
Ultrasonic Scalpel
Brand :
Trustworthy
Features :
Easy to Use, Durable
MOQ :
1pcs
Power Sourceassification :
Electrical
Material :
Metal, Plastic, Stainless Steel, Titanium
Instrument classification :
Class II
Shipping :
By Sea, By Air, By Express
After-sale Service :
Online technical support
Quality Certification :
CE/ISO13485/CFDA
Shelf Life :
3 years
Description

Surgical Instruments Medical Ultrasonic Scalpel System For Cutting Hemostasis

Our Quality Your Brand
Our factory has 18 years OEM manufacturing experience of supplying qualified products to world widely customers, we support refund or return policy due to any product quality issue.
Products Description
Product Name
Model
Description
Package
Generator
K500
User-friendly UI With Compact Design
1 set/case
Hand Piece
QUHP35
Resonant Frequency : 55.5 kHz
1 piece/case
Foot switch
QFS02
Foot switch , waterproof level : IPX8
1 piece/case
Shear
QUHS45S
Length 450 mm
3 piece/case
QUHS36S
Length 360 mm
QUHS23S
Length 230 mm
QUHS14S
Length 140 mm

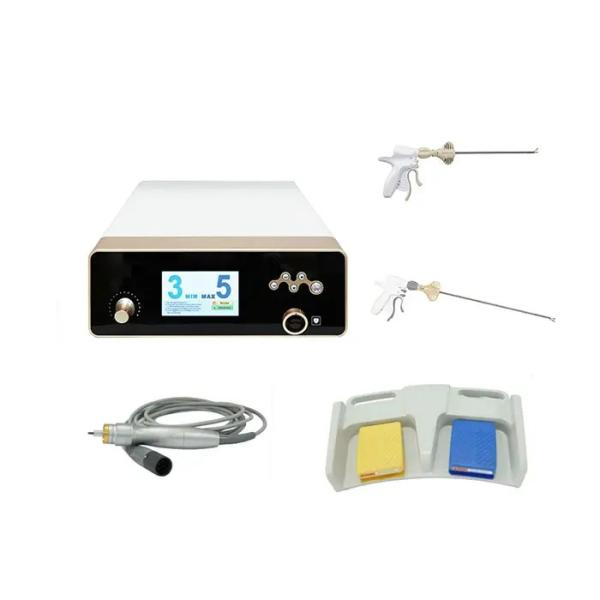

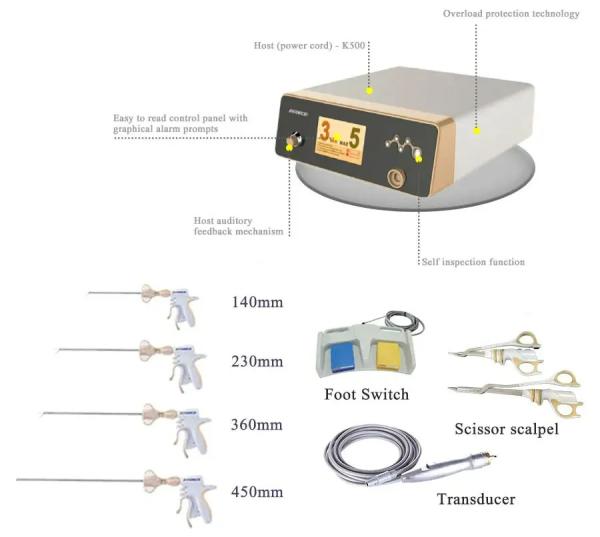

Composition of ultrasonic cutting hemostasis knife system

The system is mainly composed of five parts:generator (K500), handle (QUHP35), cutter head (QHS14S, QHS23S and QHS36S), foot switch (QFS - 02 optional) and transducer (C100 optional).

Generator

It is the control section of ultrasonic scalpel system and its output power can be controlled by handle and foot switch. The output power can be divided into 5 levels, of which level 1 is the minimum and level 5 is the maximum. Ultrasonic scalpel in level5 will show relatively strong separation capacity; and ultrasonic scalpel in level 1 will show relatively strong hemostasis capacity.

Handle
There is an electroacoustic transducer in the handle, which can convert the electrical energy provided by the generator into precise mechanical motion(ultrasonic vibration). The transducer is connected to the ultrasonic horn;The horn amplifies the motion generated by the transducer. The handle receives the electric energy from the generator and transfers it to the cutter head through accurate and controllable mechanical movement. System handle model: QUHP35
Shear
Cutter head Mechanical motion is transferred from the handle to the tip, while ultrasound energy is transferred to hemostasis or coagulation and cutting of tissue. The tip is a sterile single-use medical device that is disposed of after use and cannot be sterilized for reuse (human market). The tips are sterilized by ethylene oxide or cobalt-60 irradiation at the time of delivery; the irradiation sterilization is valid for four years, beyond the expiration date or if the sterilization package is damaged, the tips should be stopped immediately and scrapped or destroyed. The system can be equipped with QUHS14S, QUHS23S and QUHS36S. Operating frequency of the cutter head: 55.5 k Hz ±1 k Hz.
TRW-UK Series tool head with manual button, connected with the main machine, transducer, rotary knob and torque wrench integrated.

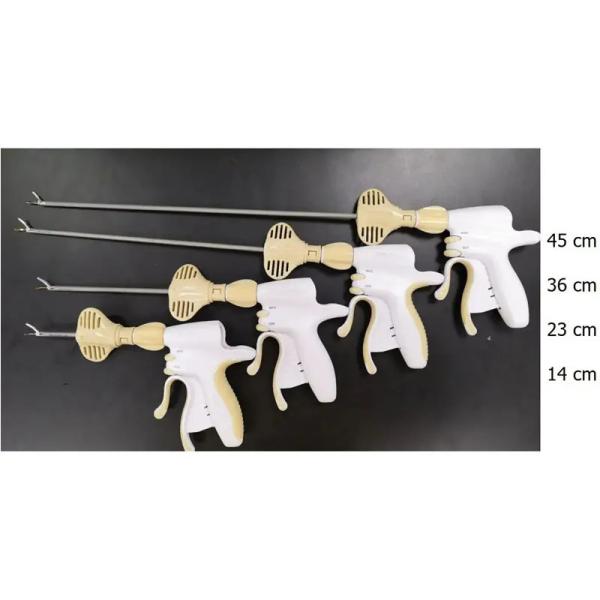

There are 4 types of cutter head according to the length of cutter: TRW-UK-14,TRW-UK-23,TRW-UK-36,TRW-UK-45.
Compatible host:
RXCD-300
GEN04(Johnson & Johnson)
GEN11(Johnson & Johnson)
Disinfection method: support 134℃ high temperature.
Foot switch

The left pedal on foot switch is the switch of level 5 high power and the right one on foot switch is the switch of level 1-4

lower power with protection level of IPX8. 1.2.5 Cutters: cutters are disposable.

Application & Feature

Surgical Instruments Medical Ultrasonic Scalpel System For Cutting Hemostasis

Company Profile
Chongqing Teriwo Trading Co,.Ltd

Teruiwo provides high-quality high-end medical and surgical equipment for laparoscopic and general surgical applications. For more information about us, in addition to other products, teruiwo also provides surgical consumables, anorectal, orthopaedic, dental and other equipment consumables for various indications, and teruiwo holdings also provides laboratory equipment, adult supplies,etc.

In addition, teruiwo provides academic training for surgeons. By working with leading surgeons in their respective surgical and medical specialties, understand the correct technical uses of the products provided. Teruiwo is committed to supplementing doctors' surgical and medical expertise. Recommend correct high-end equipment according to application requirements.

Exhibition
Certifications
FAQ

FAQ

1. Who are we?

We are based in Chongqing, China, start from 2017, sell to Southeast Asia(20.00%),Mid East(20.00%),South America(20.00%),North America(20.00%),Western Europe(10.00%),Eastern Europe(10.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3. What can you buy from us?

  • Disposable Skin Stapler
  • Disposable Circumcision Stapler
  • Ultrasonic Scalpel System
  • Other Disposable Medical Consumables
  • Disposable Endoscopic Linear Cutter Stapler & Loading Cartridge

4. Why should you buy from us not from other suppliers?

we are the professional manufacturer have 7 years experience for producing various kinds of disposable medical instruments . We supply to worldwide countries with best price and quality

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,EXW,FCA,Express Delivery；

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,Cash;

Language Spoken:English,Chinese,Spanish,Japanese
