Ultrasonic Laparoscopic Scalpel Surgical Instruments 55HZ Generator OEM
Ultrasonic Laparoscopic Scalpel Surgical Instruments 55HZ Generator OEM
Ultrasonic Laparoscopic Scalpel Surgical Instruments 55HZ Generator OEM
Ultrasonic Laparoscopic Scalpel Surgical Instruments 55HZ Generator OEM
Ultrasonic Laparoscopic Scalpel Surgical Instruments 55HZ Generator OEM
Ultrasonic Laparoscopic Scalpel Surgical Instruments 55HZ Generator OEM
Specifications
Brand Name :
Trustworthy
Model Number :
TRWQA-60
Certification :
CE ，ISO 13485，FDA
Place of Origin :
Chongqing ,China
MOQ :
10 pieces
Price :
$100-3200
Payment Terms :
T/T In advance
Supply Ability :
500000 pieces
Delivery Time :
Sample order: within 5 days/ 1-10000 pcs: within 20 days
Packaging Details :
Plastic bag, Plastic boxes，Carton box
Product Name :
Ultrasonic Scalpel System
Application :
tissue resection, transection and anastomosis in all kinds of open or endoscopic surgery
Brand :
Trustworthy
MOQ :
10pcs
Material :
Stainless, Plastic, Titanium
Package :
Plastic blister box, paper box, Carton
Type :
Scissors Abdominal Surgery Equipments
Safety standard :
IEC 60601
After-sale Service :
Return and Replacement
Generator Power :
100~250VAC
foot switch :
Anti-infusion IPX8
Shelf Life :
2 years
Foot Switch Waterproof Level :
IPX8
Description
Surgical instrument laparoscopic Ultrasonic Scalpel System 55HZ Generator
Application:
tret be iserd tre saneral s urer las ic sonr p one aic e teit spine 0 foevityurology, thoracic surgery, surgery for expocutting and coagulation of lymphatic vessels, and other open and endoscopic surgeri
PRODUCTS CODE DESCRIPTION PACKING
Generato K500 Simple and easy operation pc/case
shear QUHS14S Diameter 5mm,Length 140mm 3 pcs/case
QUHS23S Diameter 5mm.Length 230mm
QUHS36S Diameter 5mm,Length 360mm
QUHS45S Diameter 5mm,Length 450mm
Handpiece QUHP35 Resonant Frequency:55.5 kHz pc/case
Foot Switch QFSO2 Foot switch (optional) 1 pc/case
Cart C100 Mobile Cart (optional) pc/carton

I.Composition of ultrasonic cutting hemostasis knife system

The system is mainly composed of five parts:generator (K500), handle (QUHP35), cutter head (QHS14S, QHS23S and QHS36S), foot switch (QFS - 02 optional) and trolley (C100 optional).
It is the control section of ultrasonic scalpel system and its output power can be controlled by handle and foot switch.
The output power can be divided into 5 levels, of which level 1 is the minimum and level 5 is the maximum.
Ultrasonic scalpel in level 5 will show relatively strong separation capacity.
ultrasonic scalpel in level 1 will show relatively strong hemostasis capacity.

II．Profile

Ultrasonic Scalpel System
The host generator is a device (or generator) used to generate and provide electrical energy and output control to the ultrasonic driver handle. Power output is provided by activating the foot switch or manual switch adapter. The host generator generates electrical signals, which are transmitted through cables to the drive handle, which converts electrical signals into ultrasonic mechanical motion.

The input voltage:Ac 90V to 240V
Input frequency:50 / 60Hz
Working current:3A
Driving frequency:55.5KHz
The power consumption of the largest:300VA
Solid interface:Ricks foot FSW01, Johnson GEN300 foot FSW01
Handle to the interface:Rix transducer HPT55.5,Johnson transducer HP054,HPBLUE.
Adaptive bit:Rikers HPS36P series, all j&J head, such as ACE36E,HAR36, etc

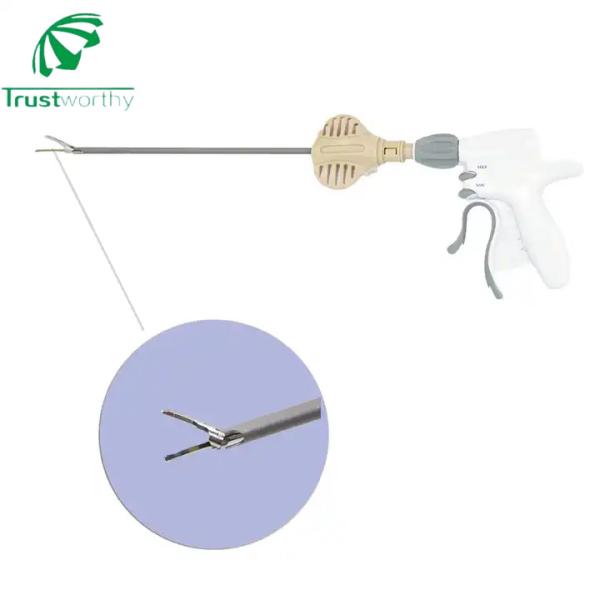

Hand Piece Scalpel
HPS36PSeries tool head with manual button, connected with the main machine, transducer, rotary knob and torque wrench integrated.
There are 3 types of cutter head according to the length of cutter: HPS36P,HPS23P,HPS14P
HPS36P, Suitable for laparoscopic surgery
HPS23P, Suitable for open surgery
HPS14P, Suitable for superficial surgery
Compatible host:RXCD-300
GEN04(Johnson & Johnson)
GEN11(Johnson & Johnson)
Disinfection method: support 134℃ high temperature.

Ultrasonic Laparoscopic Scalpel Surgical Instruments 55HZ Generator OEM
Hand Piece Transducer
Apply to the host:RXCD-300
The output frequency:55.5KHz
Output interface: HPS36P and Johnson &Johnson, for example, ACE36P
Ultrasonic Laparoscopic Scalpel Surgical Instruments 55HZ Generator OEM

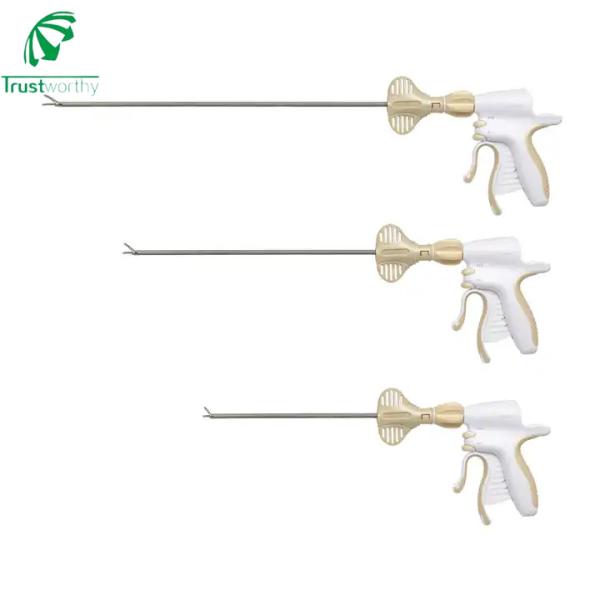

TRW-UK Series tool head with manual button, connected with the main machine, transducer, rotary knob and torque wrench integrated.
There are 4 types of cutter head according to the length of cutter: TRW-UK-14,TRW-UK-23,TRW-UK-36,TRW-UK-45.
Compatible host:
RXCD-300
GEN04(Johnson & Johnson)
GEN11(Johnson & Johnson)
Disinfection method: support 134℃ high temperature.
4.Foot switch
Used to start or stop the output of ultrasound energy as soon as the pedal switch is pressed, the pedal will activate and transmit
information to the main generator. left pedal on foot switch is the switch of level 5 high power right one on foot switch is the
switch of level 1-4 power lower power with protection level of IPX8.
Full Set:
Ultrasonic Laparoscopic Scalpel Surgical Instruments 55HZ Generator OEM
