Prefabricated Concrete Weighbridge Scale Reinforced Accurate Axle Weight Scale
Prefabricated Concrete Weighbridge Scale Reinforced Accurate Axle Weight Scale
Prefabricated Concrete Weighbridge Scale Reinforced Accurate Axle Weight Scale
Prefabricated Concrete Weighbridge Scale Reinforced Accurate Axle Weight Scale
Prefabricated Concrete Weighbridge Scale Reinforced Accurate Axle Weight Scale
Prefabricated Concrete Weighbridge Scale Reinforced Accurate Axle Weight Scale
Specifications
Brand Name :
SMARTWEIGH
Model Number :
SCSC8001
Certification :
ISO/CE/SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
500 Sets/Month
Delivery Time :
3-8 weeks
Type :
Concrete Weighbridge Scale
Capacity :
60-150T
Width :
3m/3.2m/Customized
Length :
6~24m/Customized
CLC :
Over 30% Of Total Capacity
Customization :
Available
Description
Heavy Duty Prefabricated Concrete Weighbridge Scale Reinforced Structure Truck Scale Weighing For Accurate Axle Weighing


The Built-in Concrete Weighbridge is a concrete-deck scale designed for weighing highway vehicles in above-ground installations.

Its 250mm reinforced concrete deck is supported by a modular steel I-beam framework with built-in side rails for added safety.

The structure is assembled on-site for quick installation and long-term durability.

Equipped with high-precision load cells, the scale delivers accurate and reliable weighing performance under heavy traffic conditions.


Main Features:


1. The concrete deck exists no indentation after long time use.

2. The decks are non-conductive, can protect from the lighting effectively, avoiding the load cells from damage.
3. Anti-rust, anti-oxidation, anti-wet, and full adapt to the full chemical rust environment.
4. Applied in rusted chemical companies, sea port and construction sites.
5. Measure linearity is good and especially suitable for high weight trucks requirement.
6. The concrete can be pre-fabricated in modulars or poured in end user’s installation sites
7. Explosive proof weighing system (full take advantage of concrete platforms physical features).
8. Special long deck sizes weighing system (can extend the deck length and no affect from the natural conditions).
9. All purposed universal truck scale weighing functions.
10. Convenient for container shipping.



—— TECHNIQUE SPECIFICATION——

SMARTWEIGH INSTRUMENT CO.,LTD.



Concrete Deck Truck Scale Specification

Procuct Name

Heavy Duty Prefabricated Concrete Weighbridge Scale Reinforced Structure Truck Scale Weighing For Accurate Axle Weighing

Safe Overload

130%

Surface Finish

Ball blasting and Anti-rust epoxy paint

Top Plate Thickness

10mm/ 12mm/ 14mm

Color

Customized

Accuracy

OIML C3

Platform Size

3Mx6M/8M/9M/10M/12M/15M.../Customized

Surface

Checkered/Smooth

Beam/ Ribs No

 6 pcs

Power Supply

AC 220V, DC 12V Battery Backup

Load Cell Type
Single-point load cell or Multi-point load cell
Protection Class
IP65-68
Calibration
Digital calibration with built-in calibration weight
Normal Working Temp
-10°C to +40°C
Type
 Concrete Weighbridge

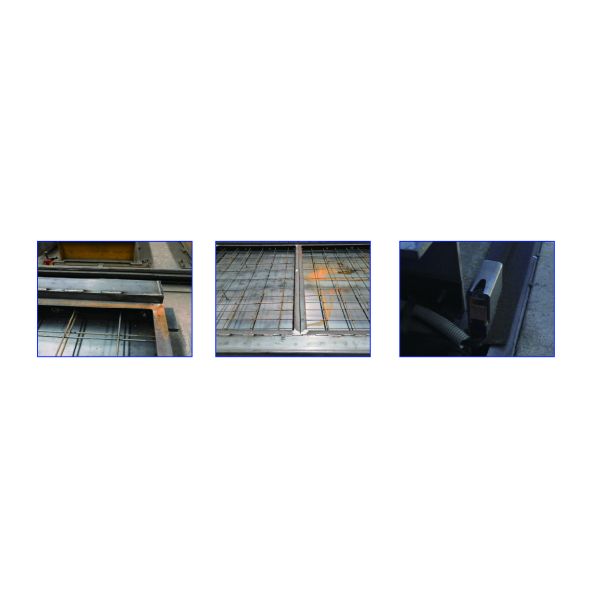

—— PRODUCT DETIALS ——

SMARTWEIGH INSTRUMENT CO.,LTD.

Prefabricated Concrete Weighbridge Scale Reinforced Accurate Axle Weight Scale


Prefabricated Concrete Weighbridge Scale Reinforced Accurate Axle Weight Scale



—— MANUFACTURING PROCESS ——

SMARTWEIGH INSTRUMENT CO.,LTD.



Prefabricated Concrete Weighbridge Scale Reinforced Accurate Axle Weight Scale

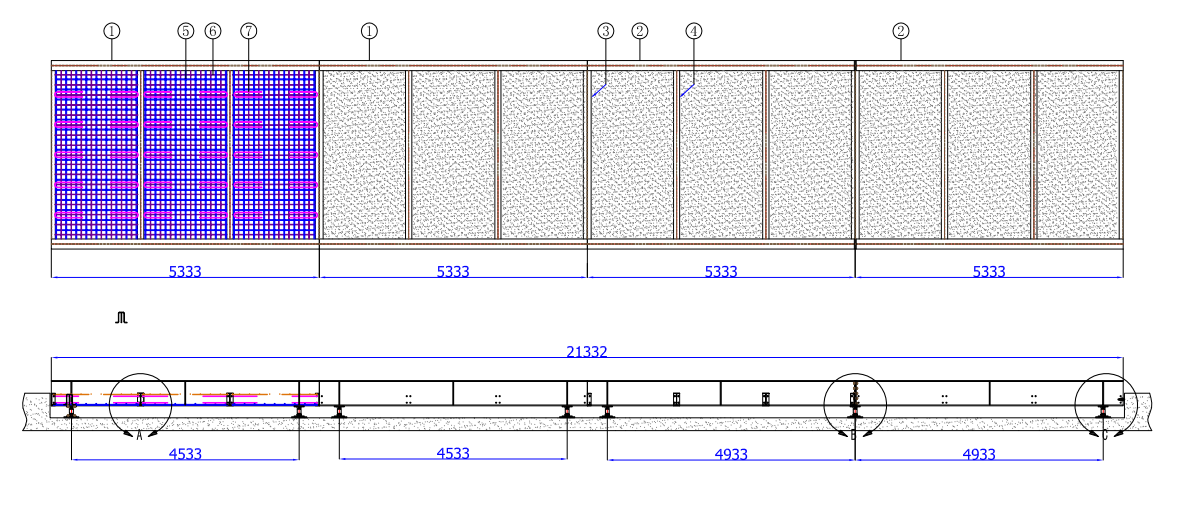

—— PRODUCT SIZE ILLUSTRATION ——

SMARTWEIGH INSTRUMENT CO.,LTD.

Prefabricated Concrete Weighbridge Scale Reinforced Accurate Axle Weight Scale


Truck Weighbridge Scale Specification

Model
 SCS-30 SCS-40 SCS-50 SCS-60 SCS-80 SCS-100 SCS-120 SCS-150
Size

Capacity

30T

 40T 50T 60T 80T 100T 120T 150T

Accuracy

 10kg 10kg 20kg 20kg 20kg 20kg 20kg 20kg

3.0×7M

 ● ●





3.0×9M
● ●




3.0×10M

● ●



3.0×12M

● ●



3.0×14M

● ● ●


3.0×15M

● ● ● ● ●

3.0×16M


● ● ● ● ●

3.0×18M


● ● ● ● ●

3.0×20M



● ● ● ●

3.2×12M

● ●



3.2×14M

● ● ●


3.2×16M

● ● ● ● ●
3.2×18M


● ● ● ● ●
3.2×20M


● ● ● ● ●
3.4×14M

● ● ●


3.4×16M

● ● ● ● ● ●
3.4×18M


● ● ● ● ●
3.4×21M


● ● ● ● ●


Note: The road weighbridge scale deck width 3m/3.2m/3.4m/4m is optional.Prefabricated Concrete Weighbridge Scale Reinforced Accurate Axle Weight Scale

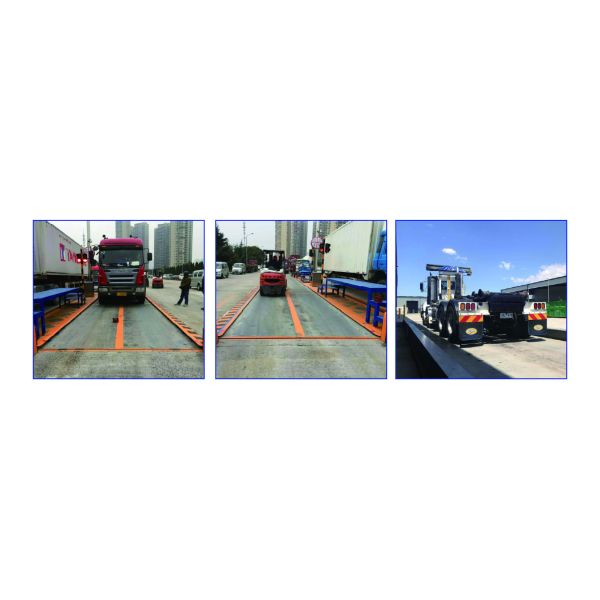

—— APPLICATION SHOWCASE ——

SMARTWEIGH INSTRUMENT CO.,LTD.

Prefabricated Concrete Weighbridge Scale Reinforced Accurate Axle Weight Scale

—— PACKAGEING AND DELIVERY ——

SMARTWEIGH INSTRUMENT CO.,LTD.
Prefabricated Concrete Weighbridge Scale Reinforced Accurate Axle Weight Scale

Delivery:We support professional packaging and worldwide delivery, including leading international carriers like DHL, FedEx, and UPS.
