Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale
Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale
Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale
Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale
Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale
Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale
Specifications
Brand Name :
SMARTWEIGH
Model Number :
SGAB8003
Certification :
ISO/CE/SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
500 Sets/Month
Delivery Time :
3-8 weeks
Type :
Weighbridge Scale
Capacity :
30T-300T
Width :
3m/3.2m/3.4m/4m/ Customized
Weighing Accuracy :
OIML (Grade: III)
CLC :
Max Axle Load 30% Of Total Capacity
Weighing Mode :
Analog
Customization :
Available
Description

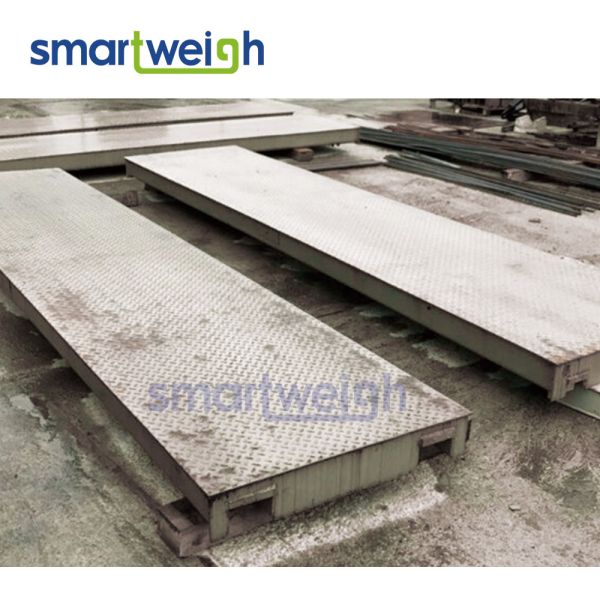

High Load Capacity Pitless Truck Scale Weighbridge Vehicle Weighbridge Scale For Heavy Truck


Truck scales in this category are designed for trucks that are used in normal highway transportation. The modular design of these products allows for customization to

suit your exact needs. Choose from a wide range of steel and concrete deck truck scale designs that use our high-accuracy load cell technology to provide proven

performance and exceptional durability.


Main Features:


1. The modular design of these products allows for customization to suit your exact needs.

2. Designed with a modular system for easy assembly, efficient shipping, and adjustment of size.

3. An optional type of galvanized structure provides full protection from rust and corrosion, reducing maintenance costs.

4. Explosion-proof types suitable for working in hazardous areas are available upon request.

5. Proven design of the bridge type U-type welded ribs helps direct the pressure of a heavy load away from areas.

6. Automatic professional welding along the seam of each rib to the deck ensures lasting strength.

7. High-performance load cells, good accuracy, and reliability make clients' maximum income.

8. Divide into several panels, easy-to-move platforms, and container transportation.

9. Many storage functions: Vehicle number, Tare storage, Accumulation storage, and many data report outputs.

10. High-quality anti-rust zinc epoxy paint for three coats ensures extending the scale's life.



—— TECHNIQUE SPECIFICATION——

SMARTWEIGH INSTRUMENT CO., LTD.



Truck Weighbridge Specification

Product Name

Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale

Safe Overload

130%

Surface Finish

Ball blasting and Anti-rust epoxy paint

Material

Q235B or Q345B steel

Top Plate Thickness

10mm/ 12mm/ 14mm

Color

Customized

Accuracy

OIML C3

Platform Size

3Mx6M/8M/9M/10M/12M/15M.../Customized

Surface

Checkered/Smooth

Beam/ Ribs No

 6 pcs

Power Supply

AC 220V, DC 12V Battery Backup

Load Cell Type
Single-point load cell or Multi-point load cell
Protection Class
IP65-68
Calibration
Digital calibration with built-in calibration weight
Normal Working Temp
-10°C to +40°C
Type
Truck Scale Weighbridge

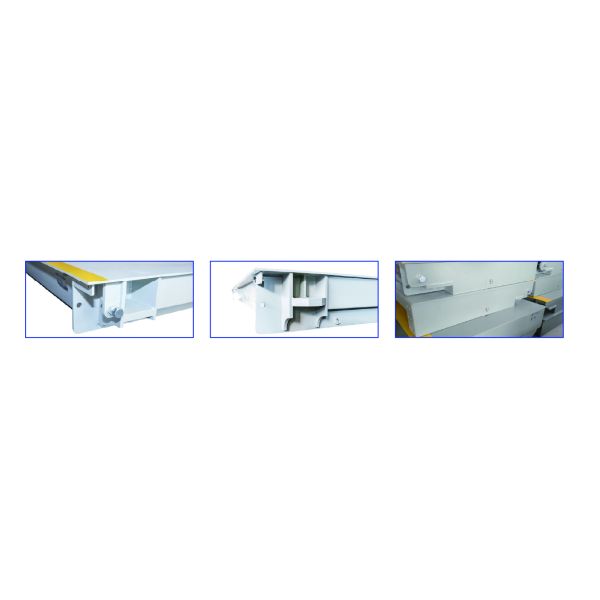

—— PRODUCT DETIALS ——

SMARTWEIGH INSTRUMENT CO., LTD.

Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale


Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale

Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale



—— MANUFACTURING PROCESS ——

SMARTWEIGH INSTRUMENT CO., LTD.



Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale


—— PRODUCT SIZE ILLUSTRATION ——

SMARTWEIGH INSTRUMENT CO., LTD.


Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale

Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale



—— APPLICATION SHOWCASE ——

SMARTWEIGH INSTRUMENT CO., LTD.

Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale

—— PACKAGEING AND DELIVERY ——

SMARTWEIGH INSTRUMENT CO., LTD.
Heavy-Duty Truck Scale Weighbridge 30–300T Vehicle Weighbridge Scale For Truck Weight Scale

Delivery: We support professional packaging and worldwide delivery, including leading international carriers like DHL, FedEx, and UPS.
