Heavy Load Accurate Guard Rails Vehicle Weighing Scales For Mining Use
Heavy Load Accurate Guard Rails Vehicle Weighing Scales For Mining Use
Heavy Load Accurate Guard Rails Vehicle Weighing Scales For Mining Use
Heavy Load Accurate Guard Rails Vehicle Weighing Scales For Mining Use
Specifications
Brand Name :
SMARTWEIGH
Model Number :
SCSW8017
Certification :
ISO/CE/SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
500 Sets/Month
Delivery Time :
3-8 weeks
Type :
Weighbridge Scale
Width :
3m/3.2m/3.4m/4m/ Customized
Weighing Accuracy :
OIML (Grade: III)
Material :
Steel
CLC :
Max Axle Load 30% Of Total Capacity
Capacity :
10-300T
Length :
6-24m/Customized
Verifition Scale Value :
5-100Kg
Customization :
Available
Description
Heavy Load Accurate Guard Rails Vehicle Weighing Scales Weighbridge Scale For Mining Use

Engineered for extreme working conditions, this weighbridge features a high-strength steel platform, precision load cells, and a reliable mounting system. It withstands heavy axle loads and frequent weighing cycles, reducing downtime and maintenance costs.


Main Features:

  • Modular structure enables full customization to match site layout and weighing needs.

  • Easy installation and transport thanks to modular sections that allow quick assembly and size adjustment.

  • An optional hot-dip galvanized structure ensures excellent protection against rust and corrosion, reducing maintenance costs.

  • Explosion-proof versions are available for safe use in hazardous or industrial environments.

  • U-shaped rib bridge design effectively distributes heavy loads, preventing structural stress and deformation.

  • Fully automatic continuous seam welding guarantees high strength and long service life.

  • Equipped with high-performance load cells for superior weighing accuracy and reliability.

  • Convenient modular panels for easy relocation and containerized shipping.

  • Multiple data storage and reporting functions, including vehicle ID, tare weight, accumulation, and statistical records.

  • Triple-layer zinc-rich epoxy coating provides outstanding anti-corrosion protection and extends scale lifespan.

—— TECHNIQUE SPECIFICATION——

SMARTWEIGH INSTRUMENT CO., LTD.



Truck Weighbridge Scale Specification
Product Name

Heavy Load Accurate Guard Rails Vehicle Weighing Scales Weighbridge Scale For Mining Use
Safe Overload

130%

Surface Finish

Ball blasting and Anti-rust epoxy paint

Material

Q235B or Q345B steel

Top Plate Thickness

10mm/ 12mm/ 14mm

Color

Customized

Accuracy

OIML C3

Platform Size

3Mx6M/8M/9M/10M/12M/15M.../Customized

Surface

Checkered/Smooth

Beam/ Ribs No

 6 pcs

Power Supply

AC 220V, DC 12V Battery Backup

Load Cell Type
Single-point load cell or Multi-point load cell
Protection Class
IP65-68
Calibration
Digital calibration with built-in calibration weight
Normal Working Temp
-10°C to +40°C
Type
Truck Scale Weighbridge

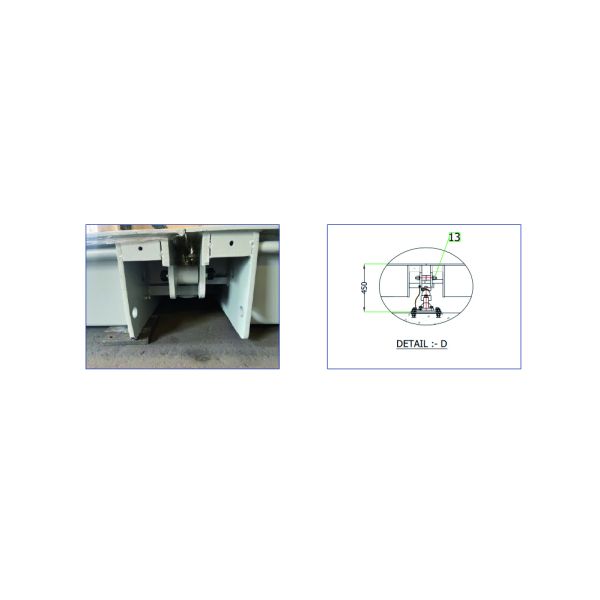

—— PRODUCT DETIALS ——

SMARTWEIGH INSTRUMENT CO., LTD.


Heavy Load Accurate Guard Rails Vehicle Weighing Scales For Mining Use



—— ACCESSORIES ——

SMARTWEIGH INSTRUMENT CO., LTD.

Heavy Load Accurate Guard Rails Vehicle Weighing Scales For Mining Use

Heavy Load Accurate Guard Rails Vehicle Weighing Scales For Mining Use



—— MANUFACTURING PROCESS ——

SMARTWEIGH INSTRUMENT CO., LTD.



Heavy Load Accurate Guard Rails Vehicle Weighing Scales For Mining Use


—— PRODUCT SIZE ——

SMARTWEIGH INSTRUMENT CO., LTD.



Truck Scale Specification
Truck Scale
Capacity
Section
Parts
Load Cell
TEU Container
3.0×6M
20-50t
1
2
4
40GP

3.0×7M
20-50t
1
2
4
40GP

3.0×8M
20-50t
2
4
6
20GP

3.0×9M
30-60t
2
4
6
20GP

3.0×10M
30-60t
2
4
6
20GP

3.0×12M
30-60t
2
4
6
40GP
3.0×14M
50-100t
3
6
8
20GP
3.0×15M
60-100t
3
6
8
20GP
3.0×16M
60-100t
3
6
8
20GP

3.0×18M
60-100t
3
6
8
40GP

3.0×20M
60-100t
4
8
10
20GP

3.0×24M
60-100t
4
8
10
40GP
3.4*12M
30-60t
2
4
6
40GP
3.4*14M
50-100t
3
6
8
20GP
3.4*16M
60-100t
3
6
8
20GP
3.4*18M
60-100t
3
6
8
40GP
3.4*20M
60-100t
4
8
10
20GP
3.4*24M
60-100t
4
8
10
40GP


Heavy Load Accurate Guard Rails Vehicle Weighing Scales For Mining Use



—— APPLICATION SHOWCASE ——

SMARTWEIGH INSTRUMENT CO., LTD.

Heavy Load Accurate Guard Rails Vehicle Weighing Scales For Mining Use

—— PACKAGEING AND DELIVERY ——

SMARTWEIGH INSTRUMENT CO., LTD.
Heavy Load Accurate Guard Rails Vehicle Weighing Scales For Mining Use

Delivery: We support professional packaging and worldwide delivery, including leading international carriers like DHL, FedEx, and UPS.
