30T - 300T Electronic Pitless Type Weighbridge Industrial Accurate Weighing Scale
30T - 300T Electronic Pitless Type Weighbridge Industrial Accurate Weighing Scale
30T - 300T Electronic Pitless Type Weighbridge Industrial Accurate Weighing Scale
30T - 300T Electronic Pitless Type Weighbridge Industrial Accurate Weighing Scale
Specifications
Brand Name :
SMARTWEIGH
Model Number :
SCSW8001
Certification :
ISO/CE/SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
500 Sets/Month
Delivery Time :
3-8 weeks
Type :
Weighbridge Scale
Capacity :
30T-300T
Width :
3m/3.2m/3.4m/4m/Customized
Length :
6~24m/Customized
Weighing Accuracy :
OIML (Grade: III)
Customization :
Available
Description
Industrial Electronic Truck Scale 30–300T Pitless Type Weighbridge Scale for Accurate Weighing

These truck scales are specifically designed for vehicles operating in standard highway transport. Their modular construction allows flexible customization to meet diverse site and operational requirements. Available in both steel and concrete deck designs, each model uses high-accuracy load cell technology to deliver proven performance, reliability, and long-lasting durability.


Main Features:


  • Modular structure enables full customization to match site layout and weighing needs.

  • Easy installation and transport thanks to modular sections that allow quick assembly and size adjustment.

  • An optional hot-dip galvanized structure ensures excellent protection against rust and corrosion, reducing maintenance costs.

  • Explosion-proof versions are available for safe use in hazardous or industrial environments.

  • U-shaped rib bridge design effectively distributes heavy loads, preventing structural stress and deformation.

  • Fully automatic continuous seam welding guarantees high strength and long service life.

  • Equipped with high-performance load cells for superior weighing accuracy and reliability.

  • Convenient modular panels for easy relocation and containerized shipping.

  • Multiple data storage and reporting functions, including vehicle ID, tare weight, accumulation, and statistical records.

  • Triple-layer zinc-rich epoxy coating provides outstanding anti-corrosion protection and extends scale lifespan.

—— TECHNIQUE SPECIFICATION——

SMARTWEIGH INSTRUMENT CO., LTD.



Weighbridge Scale Specification

Product Name

Industrial Electronic Truck Scale 30–300T Pitless Type Weighbridge Scale for Accurate Weighing

Safe Overload

130%

Surface Finish

Ball blasting and Anti-rust epoxy paint

Material

Q235B or Q345B steel

Top Plate Thickness

10mm/ 12mm/ 14mm

Color

Customized

Accuracy

OIML C3

Platform Size

3Mx6M/8M/9M/10M/12M/15M.../Customized

Surface

Checkered/Smooth

Beam/ Ribs No

 6 pcs

Power Supply

AC 220V, DC 12V Battery Backup

Load Cell Type
Single-point load cell or Multi-point load cell
Protection Class
IP65-68
Calibration
Digital calibration with built-in calibration weight
Normal Working Temp
-10°C to +40°C
Type
Truck Scale Weighbridge


—— PRODUCT DETIALS ——

SMARTWEIGH INSTRUMENT CO., LTD.



30T - 300T Electronic Pitless Type Weighbridge Industrial Accurate Weighing Scale



—— ACCESSORIES ——

SMARTWEIGH INSTRUMENT CO., LTD.

30T - 300T Electronic Pitless Type Weighbridge Industrial Accurate Weighing Scale

30T - 300T Electronic Pitless Type Weighbridge Industrial Accurate Weighing Scale



—— MANUFACTURING PROCESS ——

SMARTWEIGH INSTRUMENT CO., LTD.



30T - 300T Electronic Pitless Type Weighbridge Industrial Accurate Weighing Scale

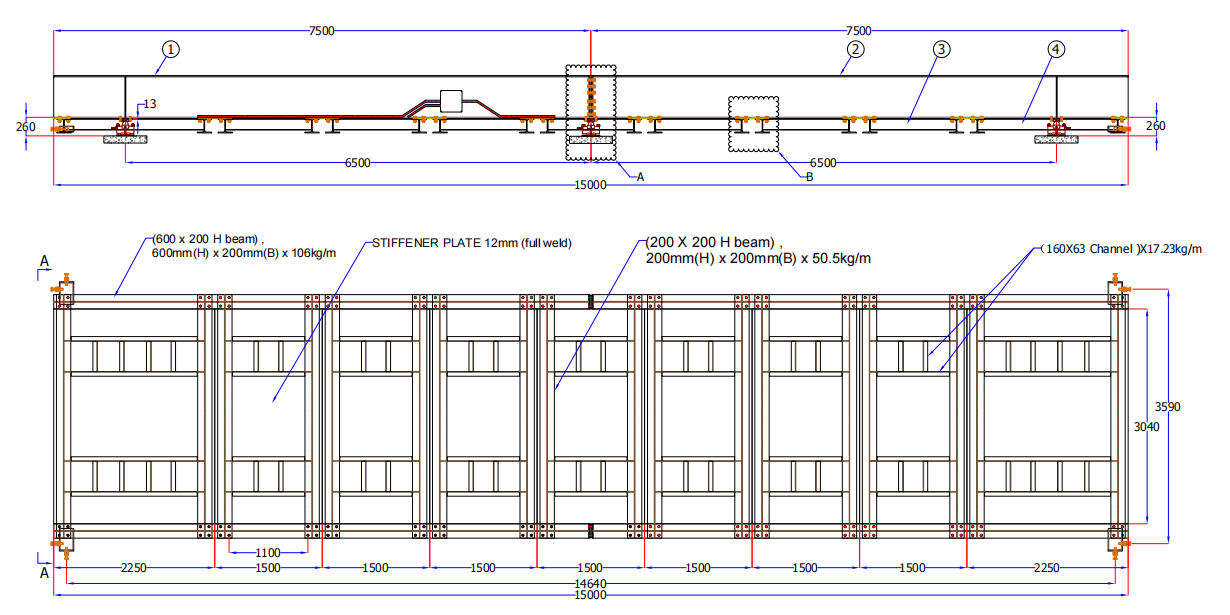

—— PRODUCT SIZE ILLUSTRATION ——

SMARTWEIGH INSTRUMENT CO., LTD.


30T - 300T Electronic Pitless Type Weighbridge Industrial Accurate Weighing Scale

30T - 300T Electronic Pitless Type Weighbridge Industrial Accurate Weighing Scale



—— APPLICATION SHOWCASE ——

SMARTWEIGH INSTRUMENT CO., LTD.

30T - 300T Electronic Pitless Type Weighbridge Industrial Accurate Weighing Scale

—— PACKAGEING AND DELIVERY ——

SMARTWEIGH INSTRUMENT CO., LTD.
30T - 300T Electronic Pitless Type Weighbridge Industrial Accurate Weighing Scale

Delivery: We support professional packaging and worldwide delivery, including leading international carriers like DHL, FedEx, and UPS.
