Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads
Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads
Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads
Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads
Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads
Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads
Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads
Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads
Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads
Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads
Specifications
Brand Name :
SMARTWEIGH
Model Number :
SCSC8003
Certification :
ISO/CE/SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
500 Sets/Month
Delivery Time :
3-8 weeks
Type :
Weighbridge Scale
The Weighing Method :
Dynamic Weighbridge
Capacity :
60-150T
Width :
3m/3.2m/3.4/mCustomized
Weighing Accuracy :
OIML (Grade: III)
Platform Length :
6-24m(Customized)
CLC :
Over 30% Of Total Capacity
Customization :
Available
Description
Reinforced Concrete Weighbridge Scale Durable Precast Truck Scale Weighbridge For Heavy Loads

The Heavy Duty Precast Concrete Weighbridge is engineered for long-term, high-capacity vehicle weighing. Its reinforced

concrete deck provides excellent strength, durability, and resistance to heavy impacts and corrosion. The modular precast

design ensures easy installation, stable performance, and minimal maintenance, making it ideal for industrial sites, logistics centers, and construction projects.



Main Features:


1. The concrete deck has no indentation after a long time of use.

2. The decks are non-conductive, can protect from the lightning effectively, avoiding the load cells from damage.
3. Anti-rust, anti-oxidation, anti-wet, and fully adapt to the full chemical rust environment.
4. Applied in rusted chemical companies, seaports, and construction sites.
5. Measure linearity is good and especially suitable for high-weight trucks' requirements.
6. The concrete can be pre-fabricated in modulars or poured at the end user’s installation sites
7. Explosive proof weighing system (full take advantage of the concrete platforms' physical features).
8. Special long deck sizes weighing system (can extend the deck length and not be affected by the natural conditions).
9. All-purpose universal truck scale weighing functions.
10. Convenient for container shipping.



—— TECHNIQUE SPECIFICATION——

SMARTWEIGH INSTRUMENT CO., LTD.



Concrete Weighbridge Scale Specification

Product Name

Reinforced Concrete Weighbridge Scale Durable Precast Truck Scale Weighbridge For Heavy Loads

Safe Overload

130%

Surface Finish

Ball blasting and Anti-rust epoxy paint

Top Plate Thickness

10mm/ 12mm/ 14mm

Color

Customized

Accuracy

OIML C3

Platform Size

3Mx6M/8M/9M/10M/12M/15M.../Customized

Surface

Checkered/Smooth

Beam/ Ribs No

 6 pcs

Power Supply

AC 220V, DC 12V Battery Backup

Load Cell Type
Single-point load cell or Multi-point load cell
Protection Class
IP65-68
Calibration
Digital calibration with built-in calibration weight
Normal Working Temp
-10°C to +40°C
Type
Truck Scale Weighbridge

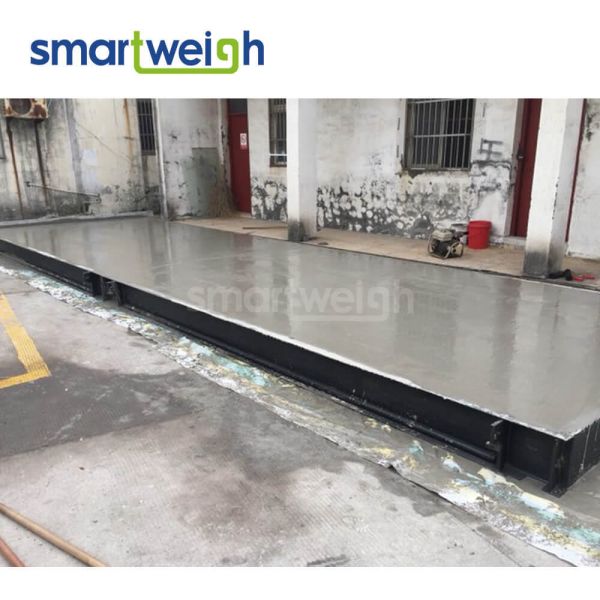

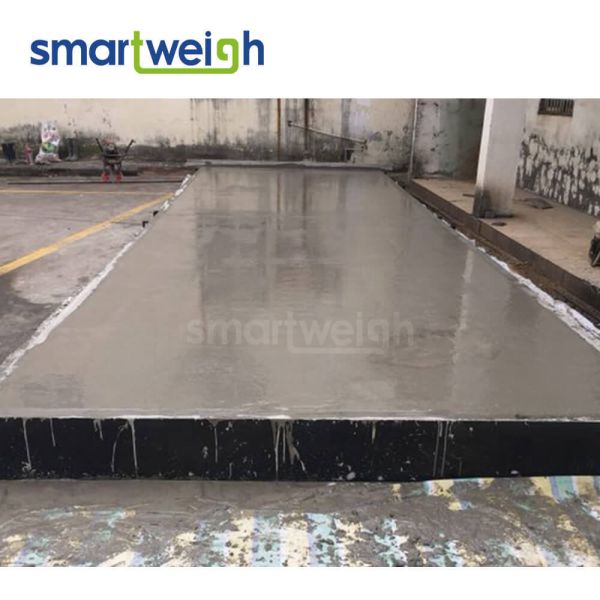

—— PRODUCT DETIALS ——

SMARTWEIGH INSTRUMENT CO., LTD.

Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads

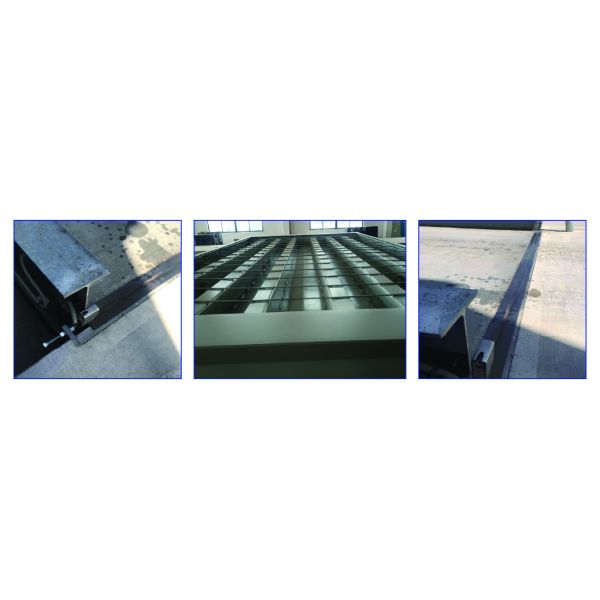

—— ACCESSORIES ——

SMARTWEIGH INSTRUMENT CO., LTD.

Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads

Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads

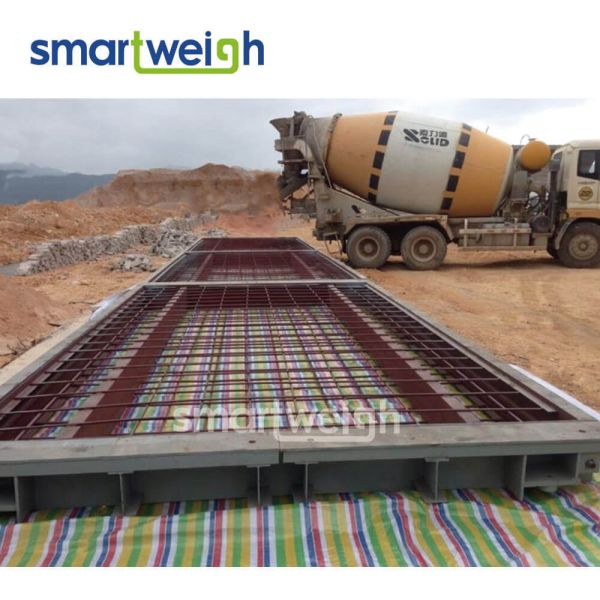

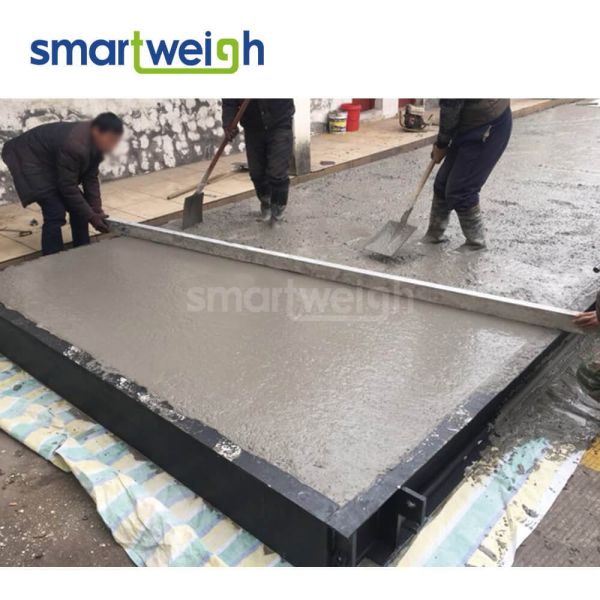

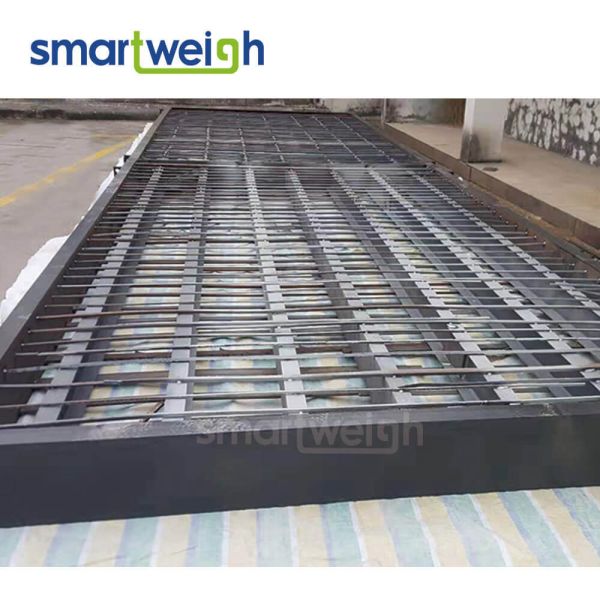

—— MANUFACTURING PROCESS ——

SMARTWEIGH INSTRUMENT CO., LTD.



Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads

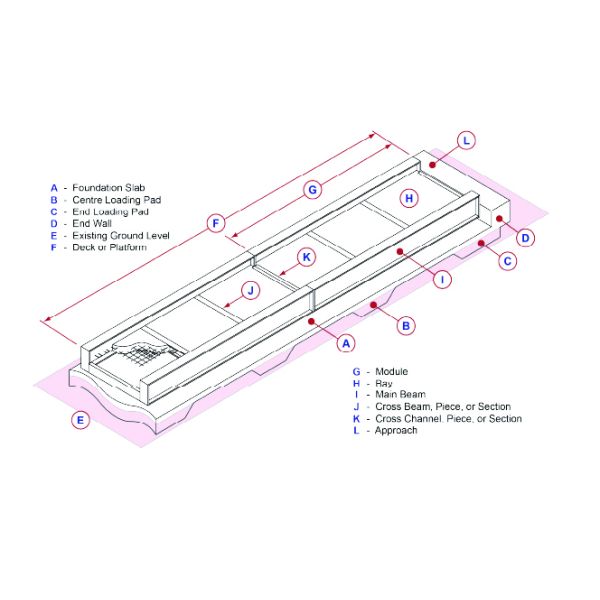

—— PRODUCT SIZE ILLUSTRATION ——

SMARTWEIGH INSTRUMENT CO., LTD.

Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads


Truck Weighbridge Scale Specification

Model
 SCS-30 SCS-40 SCS-50 SCS-60 SCS-80 SCS-100 SCS-120 SCS-150
Size

Capacity

30T

 40T 50T 60T 80T 100T 120T 150T

Accuracy

 10kg 10kg 20kg 20kg 20kg 20kg 20kg 20kg

3.0×7M

 ● ●





3.0×9M
● ●




3.0×10M

● ●



3.0×12M

● ●



3.0×14M

● ● ●


3.0×15M

● ● ● ● ●

3.0×16M


● ● ● ● ●

3.0×18M


● ● ● ● ●

3.0×20M



● ● ● ●

3.2×12M

● ●



3.2×14M

● ● ●


3.2×16M

● ● ● ● ●
3.2×18M


● ● ● ● ●
3.2×20M


● ● ● ● ●
3.4×14M

● ● ●


3.4×16M

● ● ● ● ● ●
3.4×18M


● ● ● ● ●
3.4×21M


● ● ● ● ●


Note: The road weighbridge scale deck width 3m/3.2m/3.4m/4m is optional.Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads

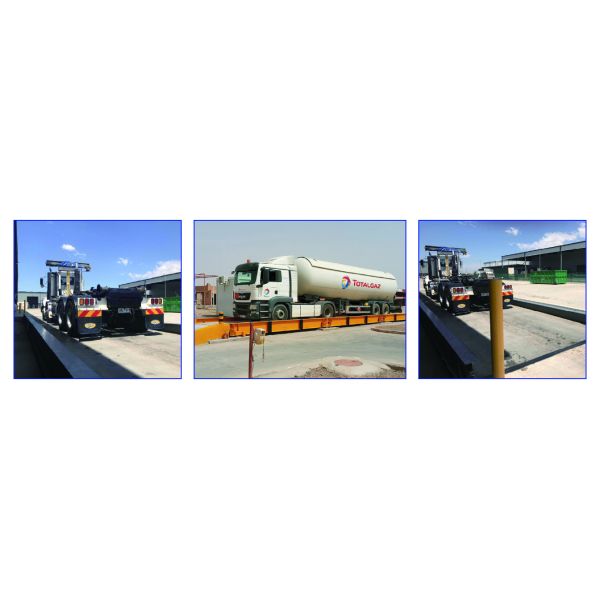

—— APPLICATION SHOWCASE ——

SMARTWEIGH INSTRUMENT CO., LTD.

Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads

—— PACKAGEING AND DELIVERY ——

SMARTWEIGH INSTRUMENT CO., LTD.
Durable Reinforced Concrete Weighbridge Scale Precast Truck Scale Weighbridge For Heavy Loads

Delivery: We support professional packaging and worldwide delivery, including leading international carriers like DHL, FedEx, and UPS.
