Specifications
Rear Platform :
Optional
Condition :
New
Logo or Pattern :
as Per Customer's Request
Insulating Layer :
10cm Polyurethane Foam
Place of Origin :
CHINA
Brand Name :
CLW
Transport Package :
Nude, Container, RO-RO, Bulk
Production Capacity :
500 Units Per Month
Transmission Type :
Manual
Horsepower :
From The Tractor Head
Trademark :
CLW
Chassis Brand :
Dongfeng, Foton, Sinotruk HOWO, FAW, Jmc
Applicable Temperature :
-18~0
Origin :
Suizhou, China
Bearing Capacity :
Large
Specification :
13820*2340*2410mm
Name :
Refrigerator Truck Trailer
Model NO. :
CLW6688LCCA70
Car Type :
Van
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Emission Standard :
Euro 3, Euro 4, Euro 5
Delivery Time :
30 Days
Fuel :
Diesel
Material :
Fiberglass
MOQ :
1
Price :
15000-35000 per unit
Payload :
3ton,5ton,6ton,10ton,20t,etc.
HS Code :
8705909990
Optional Part :
Meat Hook, Air Trunking, Side Door, Rear Platform
Description

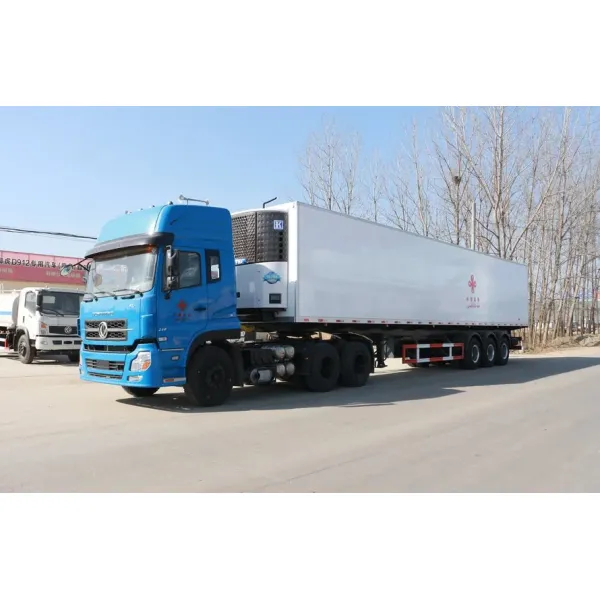

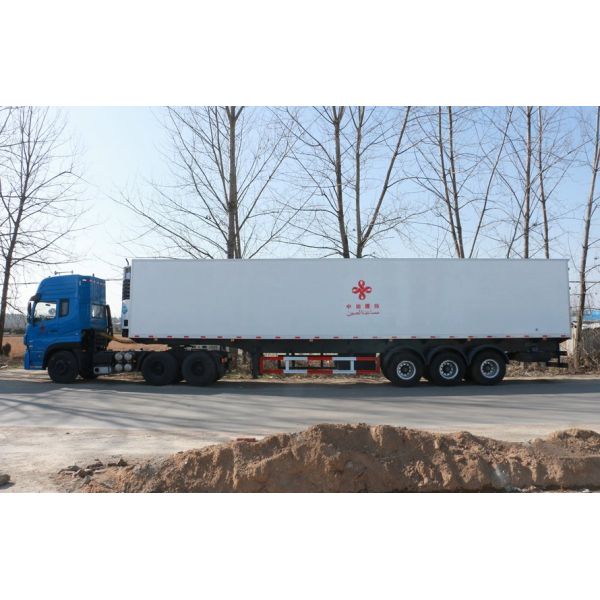

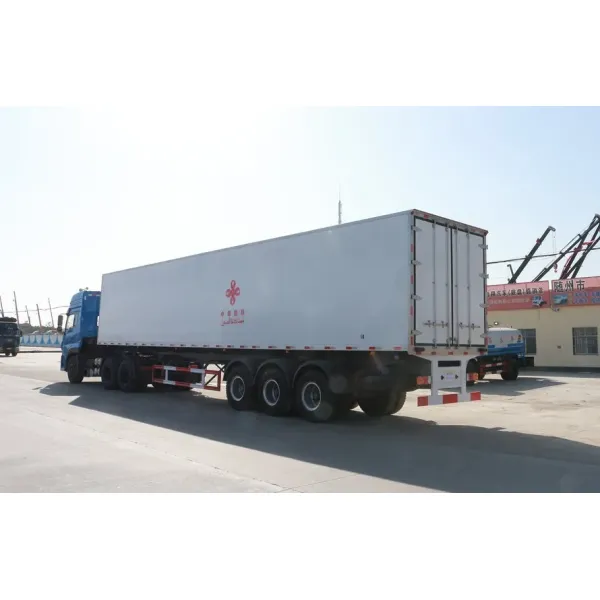

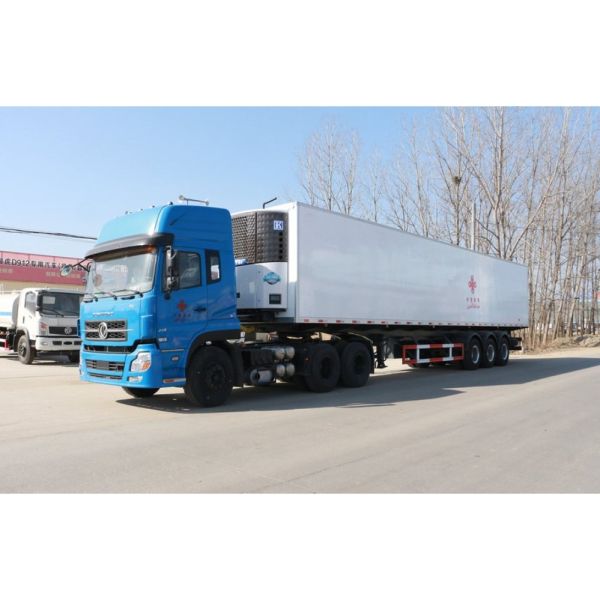

Heavy Duty 40t-50t Refrigerated Refrigerator Truck Trailer with Dongfeng Tractor Truck Head
Products Catalog:
  • LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
  • Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
  • Truck with crane / Truck mounted crane
  • Dump Truck / Tipper Truck/Side Tipper/End Tipper
  • Fire Fighting Truck / Fire Truck / Fire Vehicle
  • Concrete Mixer Truck
  • Van truck /Refrigerated truck
  • Fecal suction truck / Sewage suction truck
  • Cement Powder Tank truck/ Bulk cement truck
  • High-altitude operation truck
  • Self-loading garbage truck, garbage compactor truck, sealed garbage truck
  • Tractor
  • High Pressure Cleaning Truck
  • Sweeper Truck
  • Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Product Description
  • Purpose: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
  • Main parts: Refrigerating unit and control system.
  • Features: International chassis brand and International refrigerating unit brand for optional.
Product Specification
Complete Refrigerated Semi Trailer Parameter
Refrigerated body size (mm) 13820*2340*2410
Gross Vehicle Weight (kg) Appro × 49530
Net weight (kg) Appro × 10400
Loading (kg) Appro × 39000
Wheel base (mm) 7350+1310+1310
Front/Rear overhang (mm) - / 2030
Approach/departure angle (°) - / 12

Standard configuration

1) Equipped with America CARRIER brand independent refrigeration unit,keep the refrigerated body -18ºC .

2) Refrigerated body inner and outer material are FRP(fiber reinforced plastic).

3) Single side open door.

4) Inner aluminum alloy rail paving.

5) Inner wall with anti-collision strip.

6) Tail double open doors.

7) Protective material: Q235A carbon steel.

8) Connection method: the left and right sides and the lower part of the protection are welded.

9) Rear protection height from ground 450mm.
Semi Trailer Parameter
Main beam Heavy duty and extra durability design,opting high tensile steel A345B,welded by automatic submerged-arc processes
Axle

FUWA axle,

Axle load capacity 13 ton/axle
Landing gear China famous brand JOST brand 28T
King pin 50#
Suspension FUWA brand mechanical tandem suspension

Lights and wire

- 24V 7-pin socket

- Well-known brand standard rear lights

- orange turning lights,red rear reflectors

- 3 orange side lights and 3 orange side reflectors (each side 6)

- standard cable.
Tire model 11.00R20
No.of tires 12pcs
