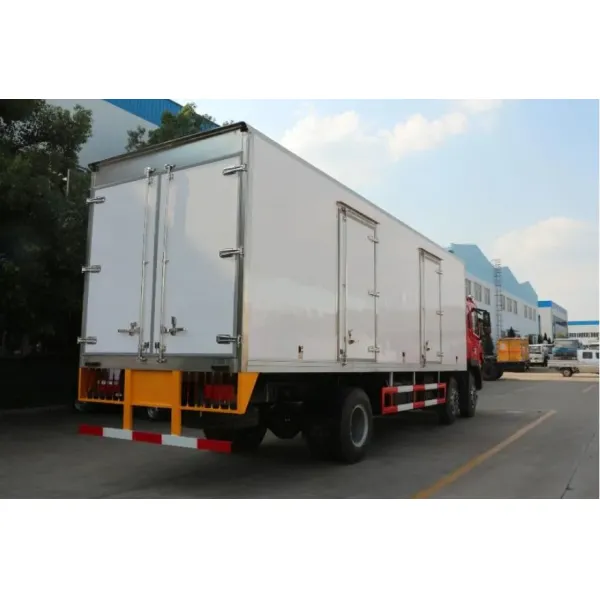

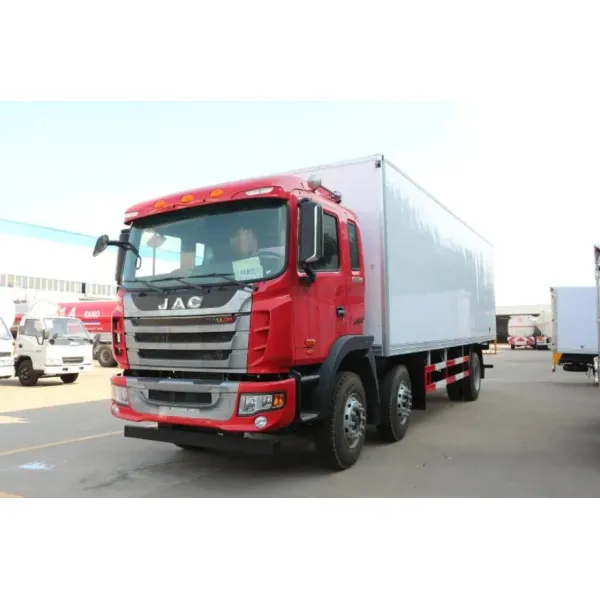

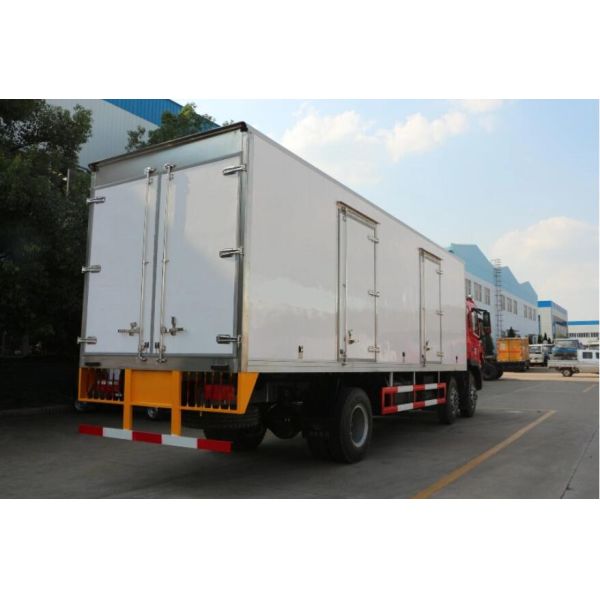

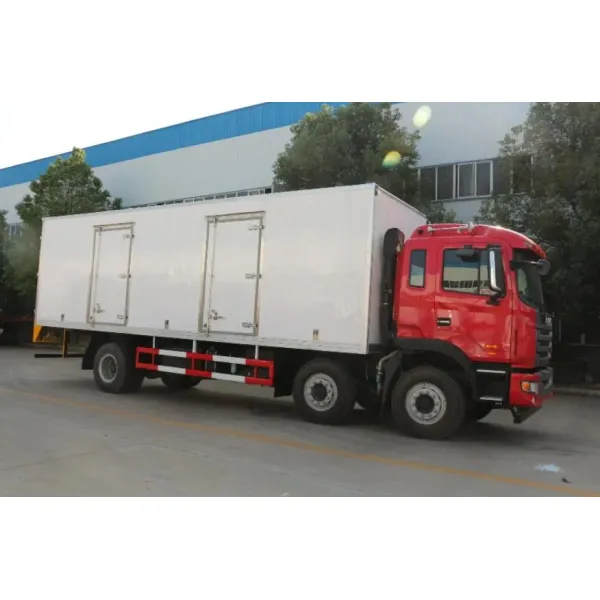

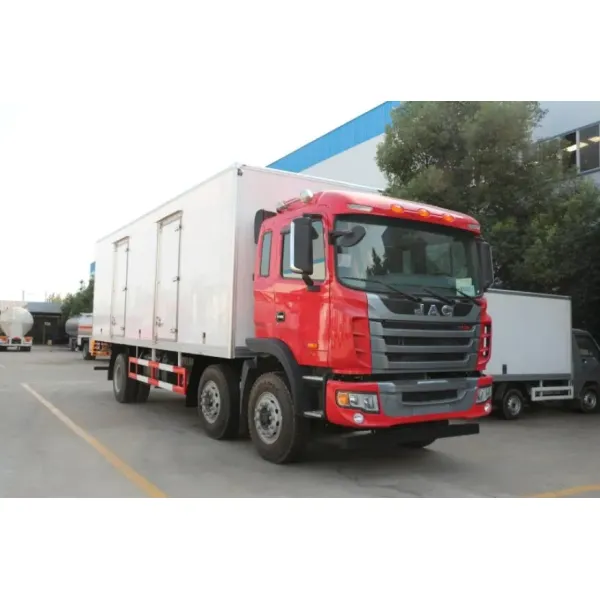

Factory Price China Refrigerated Vehicles Freezer Refrigerator Van Truck
Factory Price China Refrigerated Vehicles Freezer Refrigerator Van Truck
Factory Price China Refrigerated Vehicles Freezer Refrigerator Van Truck
Factory Price China Refrigerated Vehicles Freezer Refrigerator Van Truck
Factory Price China Refrigerated Vehicles Freezer Refrigerator Van Truck
Factory Price China Refrigerated Vehicles Freezer Refrigerator Van Truck
Factory Price China Refrigerated Vehicles Freezer Refrigerator Van Truck
Factory Price China Refrigerated Vehicles Freezer Refrigerator Van Truck
Factory Price China Refrigerated Vehicles Freezer Refrigerator Van Truck
Factory Price China Refrigerated Vehicles Freezer Refrigerator Van Truck
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Payload :
16 Tons
Emission Standard :
Euro III/IV/V/VI
Transmission Type :
Manual
Horsepower :
150-250hp
Fuel :
Diesel
Bearing Capacity :
Medium
Car Type :
Van
Condition :
New
Chassis Brand :
Dongfeng, Foton, Sinotruk HOWO, FAW, Jmc
Cold Room :
9500*2400*2400mm
Thickness :
80-100mm
Temperature :
-5 Degree or -15 Degree -18 Degree Selective
Logo or Pattern :
as Per Customer's Request
Wheelbase :
1900+5400mm
Material :
Fiberglass, Polyurethane Foam, Stainless Steel
Refrigerator :
Thermo King/Carrier/Dongin Thermo/Chinese Brand
Transmission :
Manual, 8 Forward and 1 Reverse
Tire :
10.00r20, 10+1 Spare One
Drive Type :
6X2
Transport Package :
Nude, Container, RO-RO, Bulk
Specification :
12000*2500*3950mm
Trademark :
CLW
Origin :
Suizhou, China
HS Code :
8705909090
Production Capacity :
500 Units Per Month
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Name :
Refrigerator Truck
MOQ :
1
Price :
15000-35000 per unit
Description
Factory Price China 3-5 Tons Frozen Fish/Meat Transport Delivery Refrigerated Vehicles Freezer Refrigerator Van Truck
Product Description

1. Purpose: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.

2. Main parts: Refrigerating unit and control system.

3. Features: International chassis brand and International refrigerating unit brand for optional.

Product Specification
GVW25000kg Driving Type 6x2
Cab A row and a half deluxe cab(with sleeping berth), allowable 3 passengers, air condition, electric window, traveling data recorder, hydraulic lift seat.
Engine(Hp) 220
Power(Kw) 165
Wheelbase 1900+5400
Front/Rear Suspension 1495/3205
Steering Power steering
Approach/departure angle 10/17
Wheels & tire 11.00R20
Tire number 8+1
Body Dimensions(mm) 9500×2400×2400
Loading capacity(kg) 16000
RHD or LHD optional
Overall Dimensions(mm) 12000×2500×3950
Curb weight (Kg) 10900






Engine

 Model CA6DF4-22E4
Horsepower 220
Maximum output Kw 165
Maximum torque N.m 860
Type 6 cylinders, in-line, directly injection, electric control common rail, diesel engine
Displacement 6.74L
Xichai brand, Euro 4
Driving passenger 2,3
Transmission 6 speed forward and one reverse, manual
Front Axle 5T
Rear Axle 10T
Brake System air brake ,exhaust brake
Color and LOGO customized
Electric system 24V
Refrigerator unit -5°or -15°or -18°selective
Standard configuration van body(inner glass steel, outer glass steel,8cm polyurethane foam insulation),stainless steel locks, stainless steel door frame, with overhead light and anti collision device, domestic refrigeration unit
Delivery date Within 20 days after receipt advance


Packing

 Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
