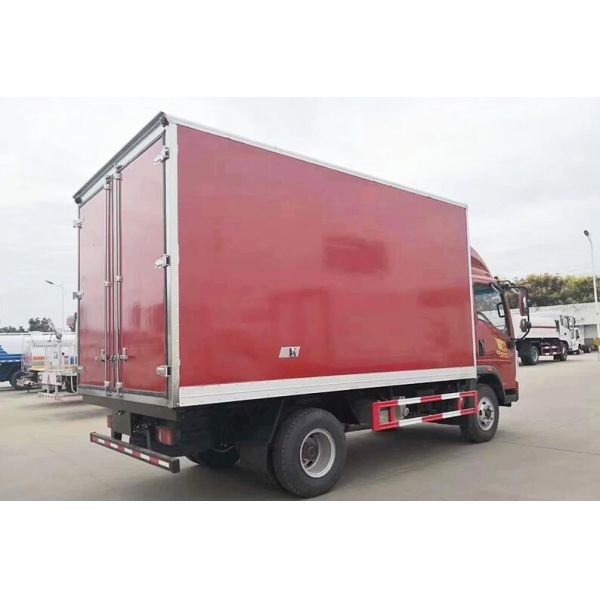

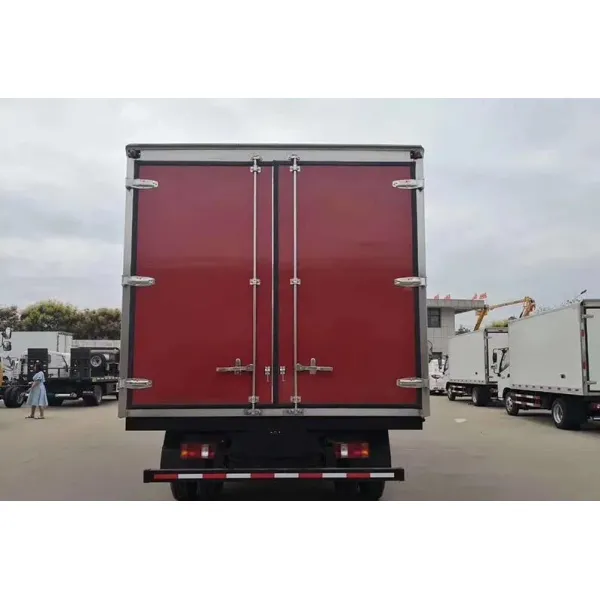

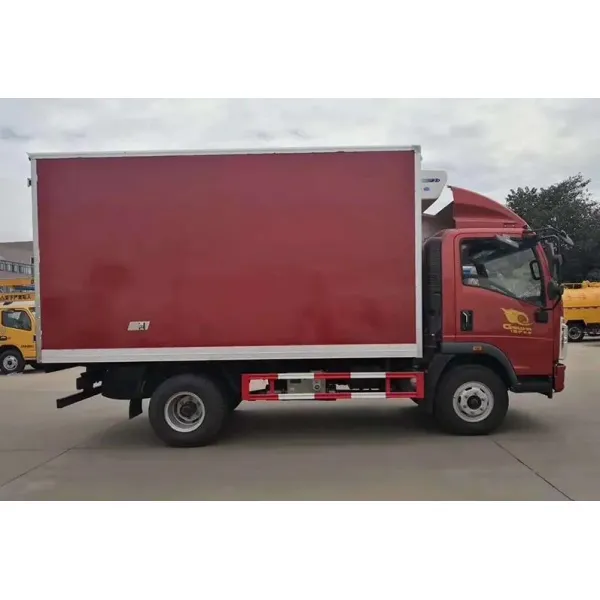

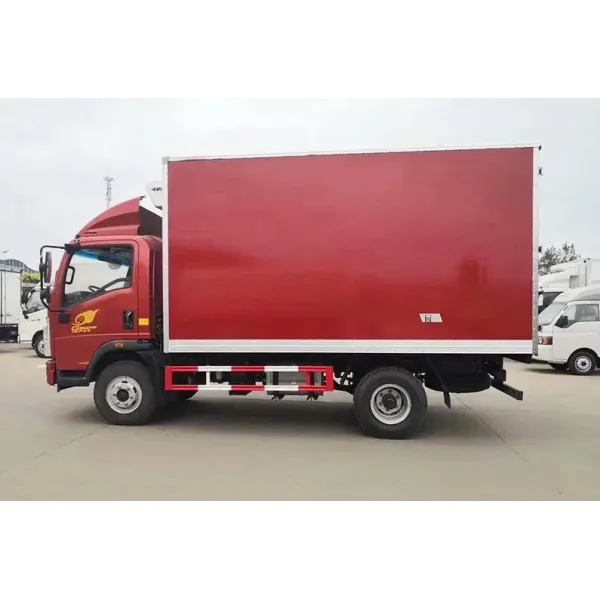

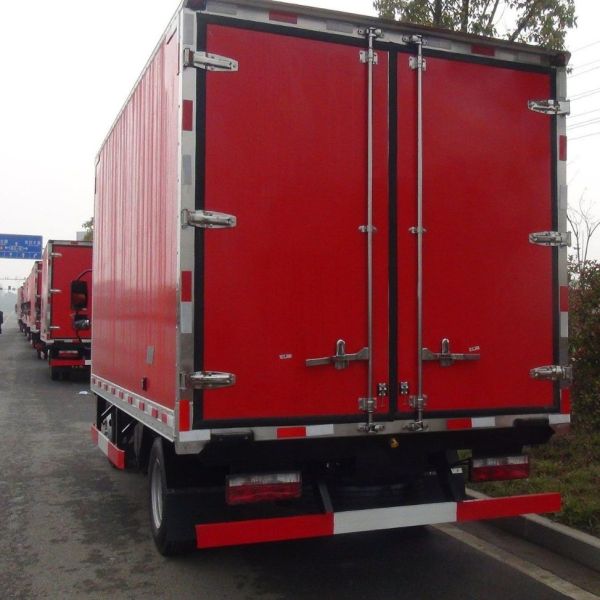

Sinotruck HOWO 4X2 5-10t Freezer Cooling Refrigerator/Refrigerated Truck
Sinotruck HOWO 4X2 5-10t Freezer Cooling Refrigerator/Refrigerated Truck
Sinotruck HOWO 4X2 5-10t Freezer Cooling Refrigerator/Refrigerated Truck
Sinotruck HOWO 4X2 5-10t Freezer Cooling Refrigerator/Refrigerated Truck
Sinotruck HOWO 4X2 5-10t Freezer Cooling Refrigerator/Refrigerated Truck
Sinotruck HOWO 4X2 5-10t Freezer Cooling Refrigerator/Refrigerated Truck
Sinotruck HOWO 4X2 5-10t Freezer Cooling Refrigerator/Refrigerated Truck
Sinotruck HOWO 4X2 5-10t Freezer Cooling Refrigerator/Refrigerated Truck
Specifications
MOQ :
1
Price :
15000-35000 per unit
Place of Origin :
CHINA
Brand Name :
CLW
Name :
Refrigerator Truck
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Model NO. :
CLW6688LCCA96
Payload :
2ton 3ton 4ton 5ton 6ton
Emission Standard :
Euro 2
Transmission Type :
Manual
Horsepower :
120HP
Fuel :
Diesel
Bearing Capacity :
Small
Car Type :
Van
Condition :
New
Chassis Brand :
Dongfeng, Foton, Sinotruk HOWO, FAW, Jmc
Wheel Base :
3308 mm
Box Material :
Fiberglass
Refrigeration Brand :
Thermoking, Carrier or Chinese Famous Brands
Logo or Pattern :
as Per Customer's Request
Insulating Layer :
8cm Polyurethane Foam
Applicable Temperature :
-18~0
Gearbox :
5 Forward & 1 Reverse
Tire :
7.00-16
Transport Package :
Nude, Container, RO-RO, Bulk
Specification :
5995x2420x3180 mm
Trademark :
CLW
Origin :
Suizhou, China
HS Code :
8705909990
Production Capacity :
500 Units Per Month
Description
Sinotruck HOWO 4X2 5-10t Freezer Cooling Refrigerator/Refrigerated Truck Products Catalog:
  • LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
  • Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
  • Truck with crane / Truck mounted crane
  • Dump Truck / Tipper Truck/Side Tipper/End Tipper
  • Fire Fighting Truck / Fire Truck / Fire Vehicle
  • Concrete Mixer Truck
  • Van truck /Refrigerated truck
  • Fecal suction truck / Sewage suction truck,
  • Cement Powder Tank truck/ Bulk cement truck
  • High-altitude operation truck,
  • Self-loading garbage truck, garbage compactor truck, sealed garbage truck
  • Tractor
  • High Pressure Cleaning Truck
  • Sweeper Truck
  • Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Product Description

1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.

2. Main parts of the truck: Refrigerating unit and control system.

3. Features of the truck: International chassis brands and refrigerating unit brands for optional.

Product Specification
General Technical Parameters
Overall Dimension 5995×2420×3180(mm) Gross Vehicle Weight 4495 (Kg)
Curb Weight 2805 (Kg) Loading Weight 1495(Kg)
Chassis Specification









Chassis parameters

 Chassis Brand HOWO
Cabin Single, Left Hand Driving, with A/C



Engine

 Model 4 Cylinders
Power 88 KW/120 HP
Emission standard EURO II
Displacement 2780 ml
Fuel type Diesel
Gearbox 5 Forward & 1 Reverse Gear
Front and Rear Axle load 2.5T/4.5T
Wheel base 3308(mm)
Brake System Oil brake
Steering Gear Power Assistant
Tire 7.00-16, 6 Pieces with 1 Spare Tire
Maximum speed 90 (km/h)
Superstructure


Van

 Box size 4150×2300×2100(mm)
Material Fiberglass
Insulating Layer 8cm Polyurethane Foam
Refrigerator Brand Carrier

Applicable temperature (ºC) -18~0
Remarks Part Optional: Ventilation slot
Hook
External power supply
Side door
