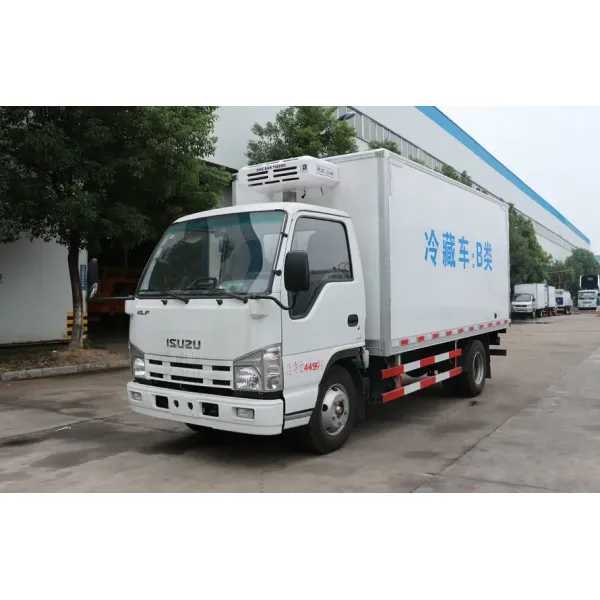

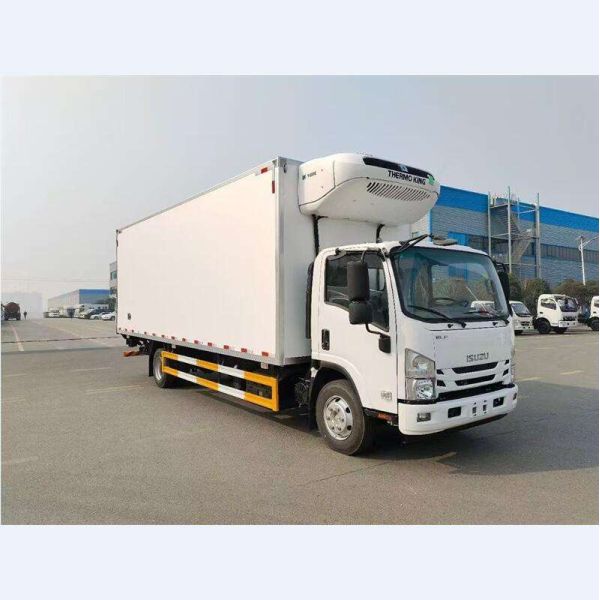

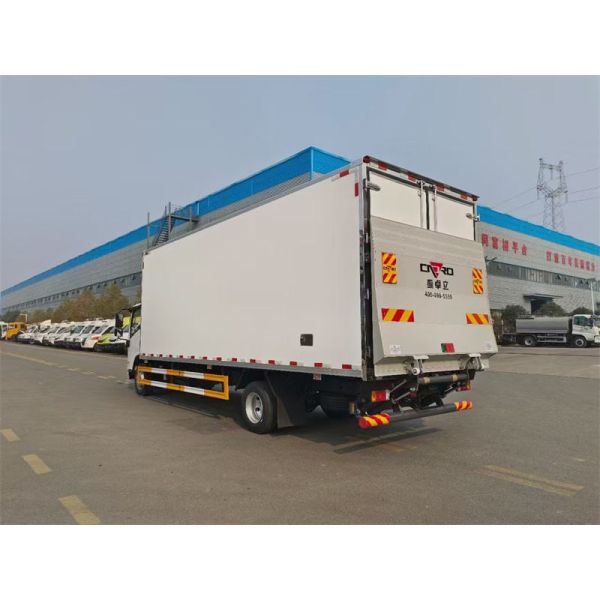

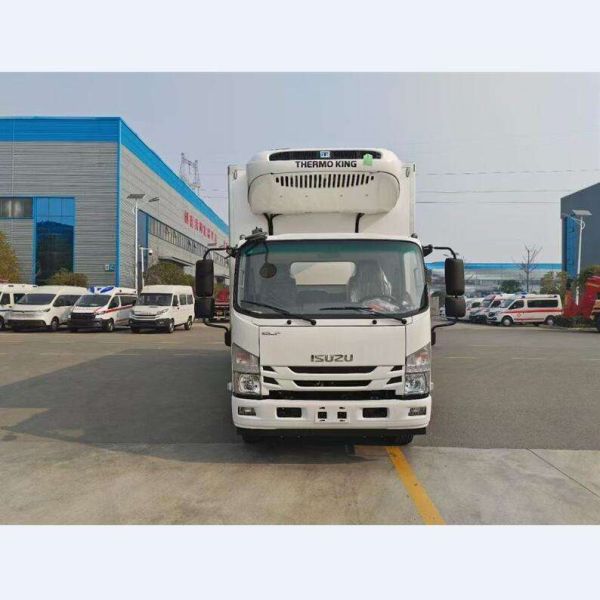

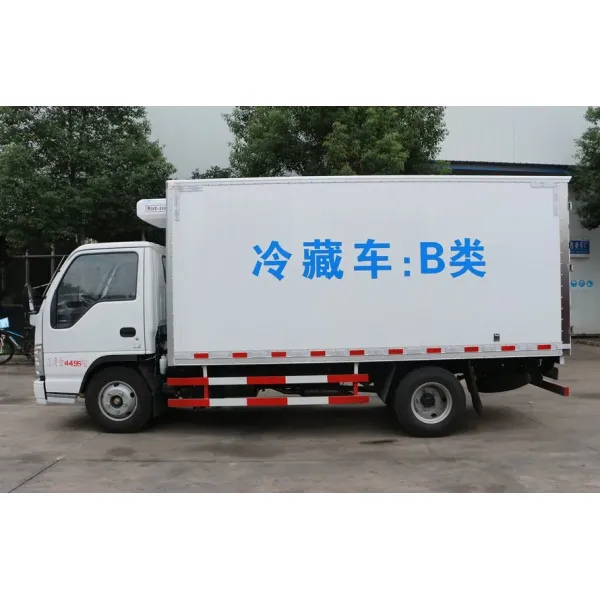

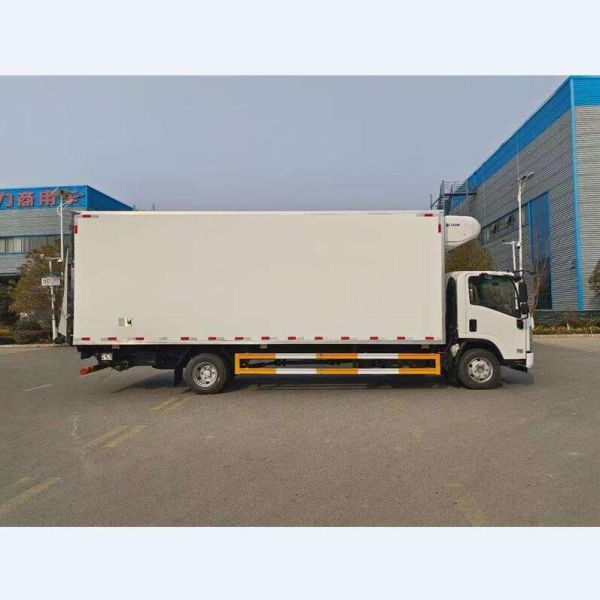

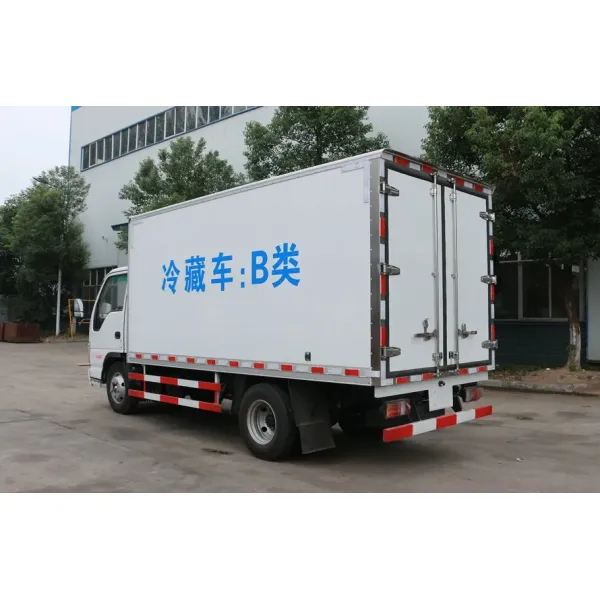

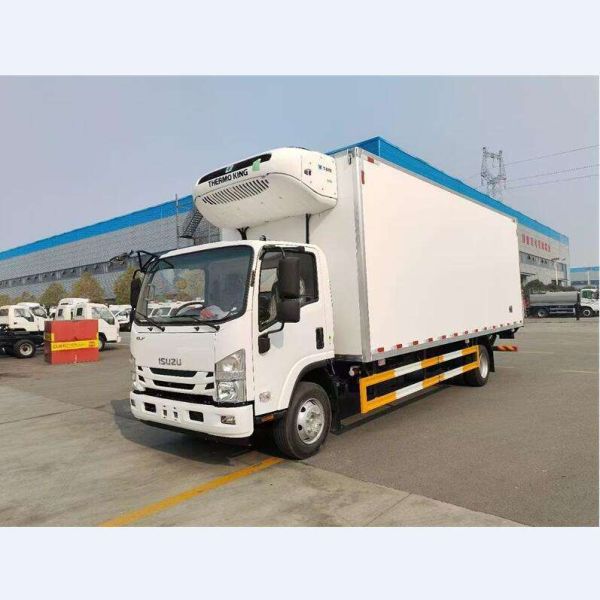

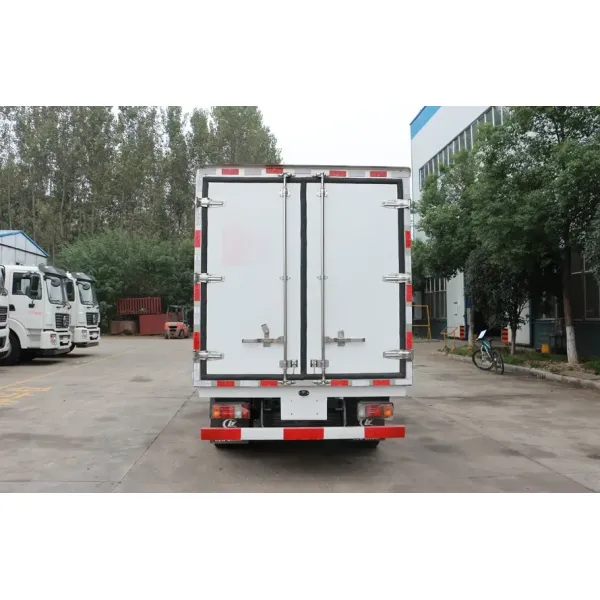

5 Tons Refrigerated Box Truck 120HP For Fish Meat Transport Freezer Truck
5 Tons Refrigerated Box Truck 120HP For Fish Meat Transport Freezer Truck
5 Tons Refrigerated Box Truck 120HP For Fish Meat Transport Freezer Truck
5 Tons Refrigerated Box Truck 120HP For Fish Meat Transport Freezer Truck
5 Tons Refrigerated Box Truck 120HP For Fish Meat Transport Freezer Truck
5 Tons Refrigerated Box Truck 120HP For Fish Meat Transport Freezer Truck
5 Tons Refrigerated Box Truck 120HP For Fish Meat Transport Freezer Truck
5 Tons Refrigerated Box Truck 120HP For Fish Meat Transport Freezer Truck
5 Tons Refrigerated Box Truck 120HP For Fish Meat Transport Freezer Truck
5 Tons Refrigerated Box Truck 120HP For Fish Meat Transport Freezer Truck
5 Tons Refrigerated Box Truck 120HP For Fish Meat Transport Freezer Truck
5 Tons Refrigerated Box Truck 120HP For Fish Meat Transport Freezer Truck
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Name :
Refrigerated Box Truck
Car Type :
Van
Origin :
Suizhou, China
Certification :
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
MOQ :
1
Price :
15000-35000 per unit
Horsepower :
120HP
Bearing Capacity :
Medium
Payload :
5ton
Condition :
New
Transport Package :
Nude, Container, RO-RO, Bulk
Wheel Base :
3360 mm
Insulating Layer :
8cm Polyurethane Foam
Trademark :
CLW
Applicable Temperature :
-18~0 Degree
HS Code :
8705909990
Logo :
as Per Customer's Request
Material :
Fiberglass
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Transmission Type :
Manual
Model NO. :
CLW6688LCCA80
Gearbox :
5 Forward & 1 Reverse
Fuel :
Diesel
Emission Standard :
Euro 2
Specification :
6000x2500x3300 mm
Production Capacity :
500 Units Per Month
Tire :
650-16
Description

5 Tons Chinese Famous Brand Refrigerator Truck Fish Meat Transport Freezer Truck

Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Product Description

  • 1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.
  • 2. Main parts of the truck: Refrigerating unit and control system.
  • 3. Features of the truck: International chassis brands and refrigerating unit brands for optional.

Product Specification

General Technical Parameters
Overall Dimension6000×2500×3300(mm)Gross Vehicle Weight9000(Kg)
Curb Weight3900(Kg)Loading Weight5000(Kg)
Chassis Specification










Chassis parameters

Chassis BrandChinese famous brand
CabinSingle, Left Hand Driving, with A/C



Engine

Model4KH1-TCG4O, 4 Cylinders
Power88KW/120HP
Emission standardEURO IV
Displacement2.999L
Fuel typeDiesel
GearboxMSB, 5 Forward & 1 Reverse Gear
Front and Rear Axle load2.5T/4.8T
Wheel base3360(mm)
Overhang( Front/Rear)1130/1505(mm)
Angle(Approach/departure)20/16(°)
Brake SystemOil brake
Steering GearPower Assistant
Tire650-16, 6 Pieces with 1 Spare Tire
Maximum speed105(km/h)
Superstructure


Van

Box size4100×2300×2100(mm)
MaterialFiberglass
Insulating Layer8cm Polyurethane Foam
BrandTHERMOKING
Truck refrigeration unitModelKV300
Applicable temperature (ºC)-18~0


Remarks

Part Optional: Ventilation slot
Hook
External power supply
Side door
