Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Fuel :
Diesel
Specification :
3t, 3tons, 4t, 4tons, 5t, 5tons
Logo or Pattern :
as Per Customer's Request
Steering :
LHD, Rhd, Left Hand Drive, Right Hand Drive
MOQ :
1
Price :
15000-35000 per unit
Material of Box Floor :
Aluminum Alloy Checked Plate
Emission Standard :
Euro 4, Euro 5
Material :
Fibreglass
Engine :
98HP, 120HP
Origin :
Suizhou, China
Gearbox :
5forward & 1 Reverse
Box Size :
3150X1750X1750 mm
Application :
Vegetable, Meat, Ice Cream, Fish Frozentransport
Model NO. :
CLW6688LCCA39
Bearing Capacity :
Small
Horsepower :
＜150hp
Truck Refrigeration Unit :
USA Brand Thermo King, Carrier, Hanxue or
HS Code :
8705909990
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Name :
ISuzu Freezer Truck
Transmission Type :
Manual
Chassis Brand :
Dongfeng, Foton, Sinotruk HOWO, , FAW, Jmc
Loading Capacity :
3t, 3tons, 4t, 4tons, 5t, 5tons
Payload :
3t
Applicable Temperature :
Optional for -5, -10, -15, -18 Degree Refrigerator
Car Type :
Van
Trademark :
CLW
Optional Part :
Meat Hook, Air Trunking, Side Door
Transport Package :
Nude, Container, RO-RO, Bulk
Condition :
New
Production Capacity :
500 Units Per Month
Delivery Time :
25 Days
Description

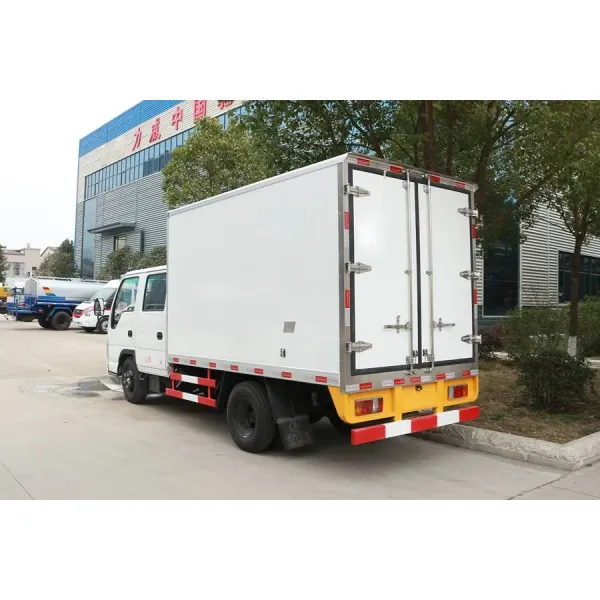

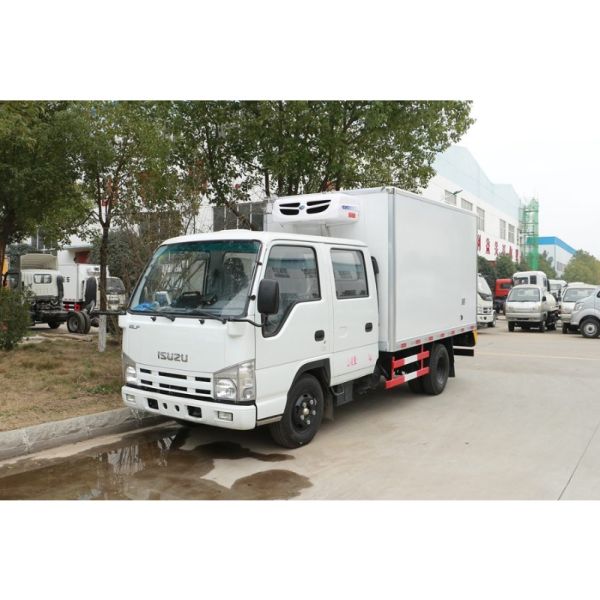

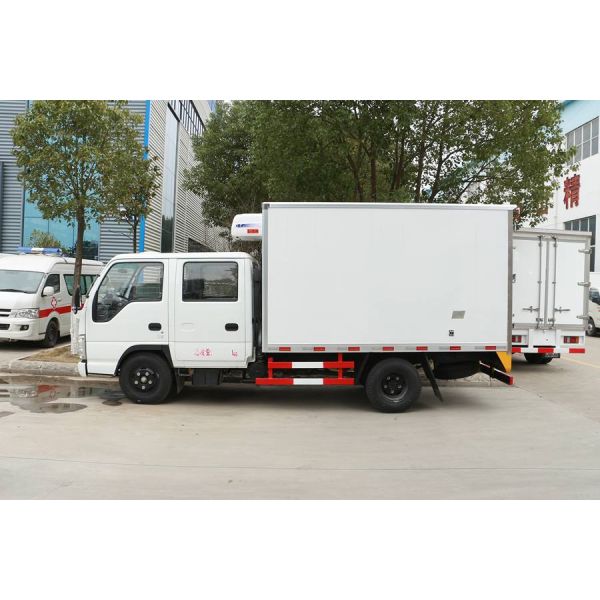

Double Row I-Suzu Freezer Truck Refrigerated Refrigerator Van Truck

Description:

1. Purpose of freezer Truck: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.

2. Main parts of freezer Truck: Refrigerating unit and control system.

3. Features of freezer Truck: International chassis brand and International refrigerating unit brand for optional.

4. With hydraulic integrated molding production line, the thermal insulation performance reaches the national A-class standard.

5. Interior size: 3150X1750X1750 (mm) volume is 9.6 cubic meters, the inner and outer fabrics of the truck adopt the latest nano-glass steel (no light absorption, good heat insulation, Strong hardness, anti-oxidation),

6. Thickness of body is 8cm, the lining skeleton is rust-proof WISCO high-quality light steel profile, the insulation material is non-void filled polyurethane foam and the bottom of the car body is aluminum alloy tread plate or selected plane nano glass reinforced plastic.

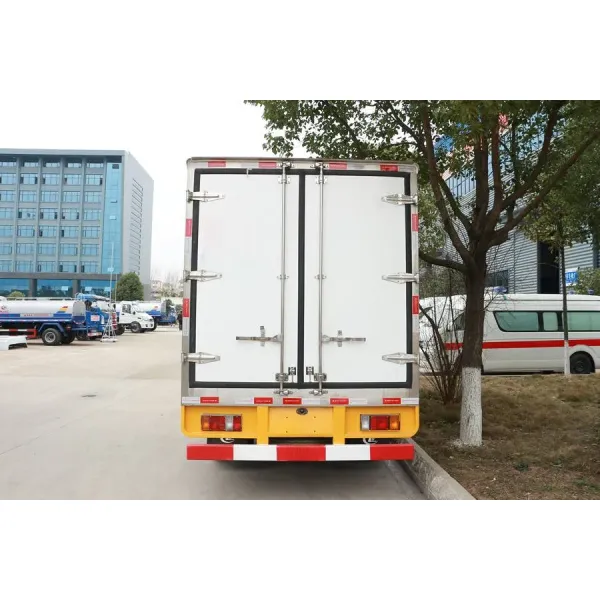

7. The truck body is made of galvanized stainless steel wrap angle, thick aluminum alloy edging, rear door frame is stainless steel, thick stainless steel back door hinge and lock parts, LED lighting and truck body width lamp are used inside the body.

Specification of freezer Truck

General Technical Parameters
Overall Dimension 5995*2130*2960(mm) Gross Vehicle Weight 4495(Kg)
Curb Weight 2866(Kg) Loading Weight 1499(Kg)
Chassis Specification

Chassis parameters

 Chassis Brand I-SUZU
Cabin double row, Left Hand Driving, with A/C

Engine

 Model 4KH1CN5LS, 4 Cylinders
Power 98HP
Emission standard EURO IV or V
Displacement 2.999L
Fuel type Diesel
Gearbox MSB, 5 Forward & 1 Reverse Gear
Front and Rear Axle load 2.5T/4.8T
Wheel base 3360(mm)
Overhang( Front/Rear) 1130/1505(mm)
Angle(Approach/departure) 20/16(°)
Brake System Oil brake
Steering Gear Power Assistant
Tire 7.00R16 8PR, 6 Pieces with 1 Spare Tire
Maximum speed 105(km/h)
Superstructure

Van

 Box size 3150*1750*1750(mm)
Material Fiberglass
Insulating Layer 8cm Polyurethane Foam
Truck refrigeration unit Brand THERMOKING/CARRIER/other chinese brand
Applicable temperature (ºC) -18~0

Remarks

 Ventilation slot
Meat Hook
External power supply
Side door
