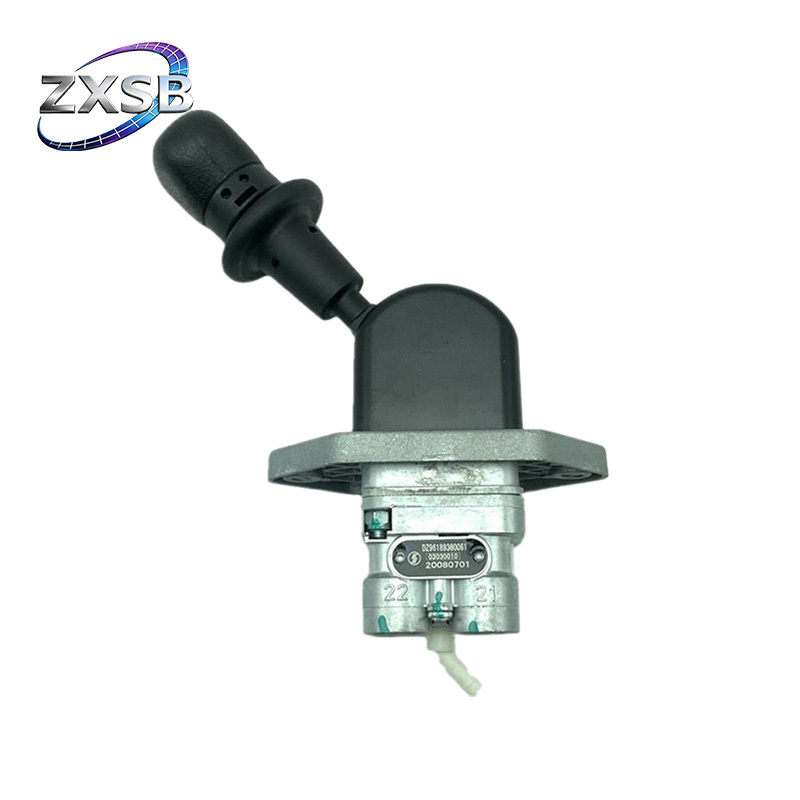

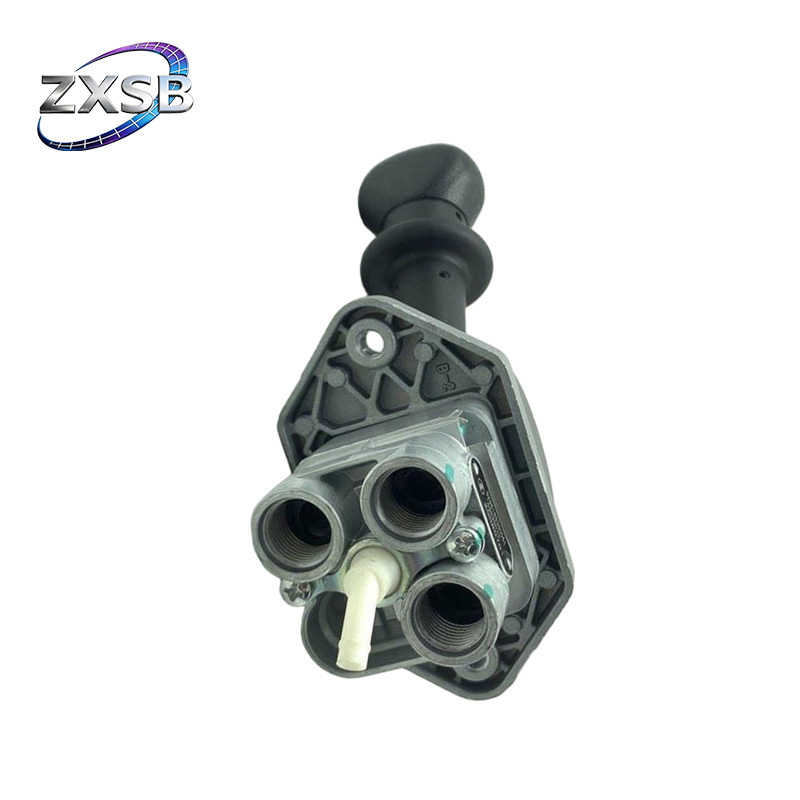

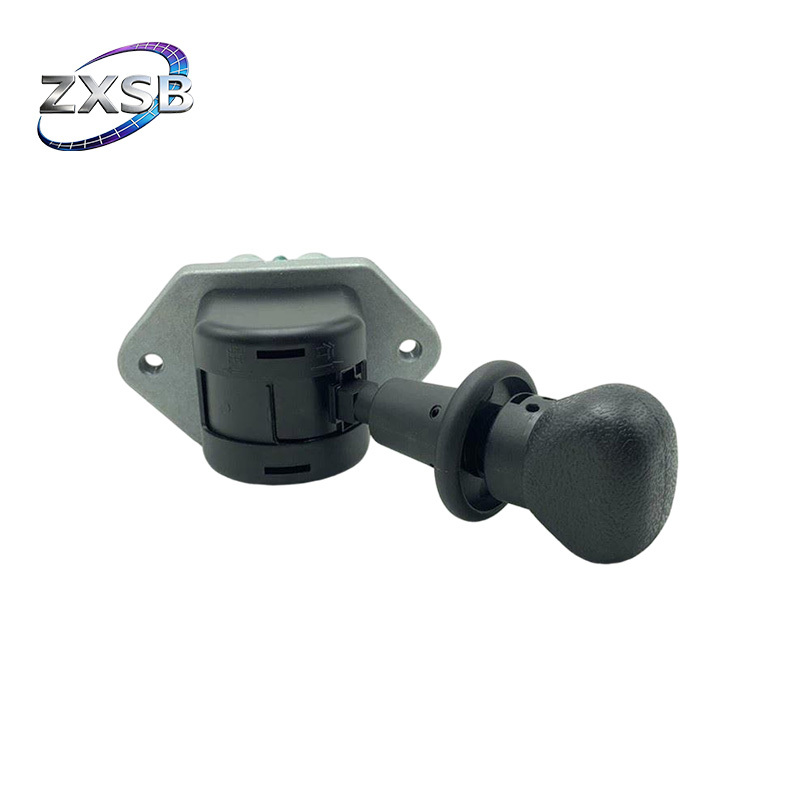

SHACMAN New M3000 Hand Brake Valve Air Brake System DZ96189360061
SHACMAN New M3000 Hand Brake Valve Air Brake System DZ96189360061
SHACMAN New M3000 Hand Brake Valve Air Brake System DZ96189360061
SHACMAN New M3000 Hand Brake Valve Air Brake System DZ96189360061
SHACMAN New M3000 Hand Brake Valve Air Brake System DZ96189360061
SHACMAN New M3000 Hand Brake Valve Air Brake System DZ96189360061
Specifications
Supply Ability :
500PCS
Material :
Electronic Control Module Housing
Certification :
CQC URS CE
Package :
Customer Requirements/neutral Packaging/brand Packaging
Model Number :
DZ96189360061
MOQ :
1PCS
Delivery Time :
3-5days
Applicable Model :
For SHACMAN New M3000
Shipping :
Courier/Air Freight/Sea Freight or According to customer requirements
Payment Terms :
L/C,D/A,D/P,T/T
Availability :
In stock
Price :
negotiation
Service :
24 Hours Online Service
Product Name :
Hand Brake Valve
Purpose :
For replace/repair
Brand Name :
SHACMAN
Packaging Details :
Unified cardboard, packaging with bubble wrap inside and wrapped with film outside. Large items can be palletized or packaged according to customer needs
Warranty :
6 months
Payment :
T/T,,Alipay
Place of Origin :
China
Description


SHACMAN New M3000 Air Brake System Parts Hand Brake Valve DZ96189360061




The DZ96189360061 Hand Brake Valve is a pneumatic parking brake control component used in the air brake system of compatible SHACMAN heavy-duty trucks, particularly the New M3000 platform. The valve is operated by the driver through the parking brake control mechanism and regulates compressed air within the parking brake circuit, working together with the spring brake chambers and related pneumatic valves to engage or release the vehicle's parking brake. During daily operation, the handbrake valve is frequently used when the truck is parked, stopped for loading or unloading, waiting at roadside locations, or positioned on gradients, so correct air pressure control and smooth valve operation are important to the overall function of the parking brake system. A valve with internal wear, air leakage, or abnormal control response can affect the ability of the parking brake circuit to engage or release correctly and may require inspection or replacement. The DZ96189360061 provides a specific OEM number reference for SHACMAN New M3000 maintenance and is suitable for truck brake system repair, pneumatic circuit servicing, and spare parts replacement. Before purchasing, buyers should compare the original part number, truck model, valve configuration, air ports, and mounting arrangement to ensure the replacement component matches the existing brake system.




Product Specification


Product Name

Hand Brake Valve
Alternative Name

Parking Brake Valve / Handbrake Valve
Part Number

DZ96189360061
Condition New
Origin China
Quality Standard 100% Tested
Quality Certification ISO, CCC, GSO, CE, SGS, TUV
Weight 0.8 KG
Dimensions

180 mm × 90 mm ×80 mm
SHACMAN New M3000 Hand Brake Valve Air Brake System DZ96189360061 SHACMAN New M3000 Hand Brake Valve Air Brake System DZ96189360061

Ordering & Shipping Information
Packing Options
Carton, Wooden Box, Pallet
Shipping Methods
Courier / Air Freight / Sea Freight
Payment Terms
L/C, T/T, , PayPal, , Alipay
Loading Port
Any Port in China

FAQ


Q1: What does a handbrake valve do?

The valve controls compressed air in the parking brake circuit, allowing the driver to engage or release the pneumatic parking brake.




Q2: What are common indications that the handbrake valve needs inspection?

Possible signs include:

  • The parking brake does not release normally
  • Parking brake response is slow
  • Air leakage around the valve
  • Abnormal hand lever operation
  • Parking brake pressure does not behave as expected

These symptoms can also originate from other pneumatic brake components, so the complete air circuit should be checked before replacing the valve.




Q3: What should I confirm before purchasing?

Check:

  • Part number: DZ96189360061
  • Truck model
  • Valve appearance
  • Airport arrangement
  • Mounting configuration
  • Original valve label
