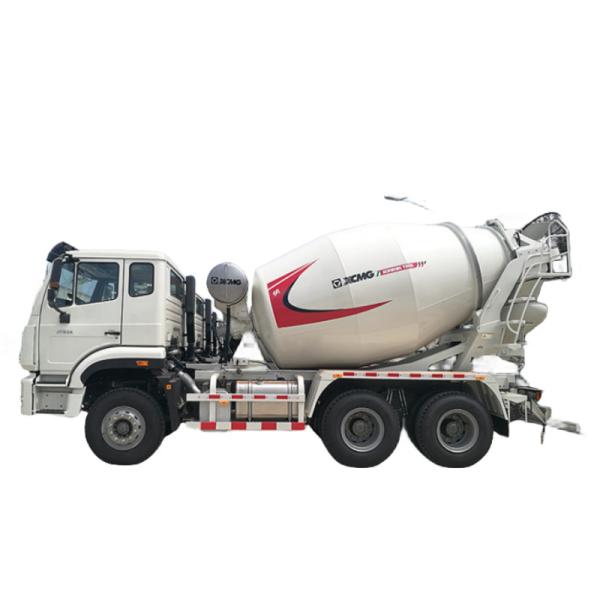

6 Cbm Small Diesel Concrete Mixer Truck G06K XCMG Factory
6 Cbm Small Diesel Concrete Mixer Truck G06K XCMG Factory
6 Cbm Small Diesel Concrete Mixer Truck G06K XCMG Factory
6 Cbm Small Diesel Concrete Mixer Truck G06K XCMG Factory
6 Cbm Small Diesel Concrete Mixer Truck G06K XCMG Factory
6 Cbm Small Diesel Concrete Mixer Truck G06K XCMG Factory
6 Cbm Small Diesel Concrete Mixer Truck G06K XCMG Factory
6 Cbm Small Diesel Concrete Mixer Truck G06K XCMG Factory
Specifications
Brand Name :
XCMG
Model Number :
G06K
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/year
Delivery Time :
Full Payment 7-15 Work Days
Packaging Details :
by Sea/by Bulk/by Frame/Container
Geometric volume :
11.6m³
Max. diameter of drum :
2250mm
Curb mass :
12250kg
Driving type :
6×4
Wheelbase :
3225+1350mm
Engine :
WD615.69
Displacement :
9.726L
Rated power :
247Kw/r/min
Emission standard :
Euro II
Description

XCMG Factory 6 Cbm Small Diesel Concrete Truck Mixer G06K

The heavy-duty truck design concept is adopted, and the high-strength connecting bolts are arranged, and the connection is reliable and durable; the mixing drum is made of high-strength wear-resistant material, and the frame is made of high-strength steel, which has stronger carrying capacity and long service life;

The whole vehicle adopts no sub-frame structure, the center of gravity is 100mm lower than the ordinary car, and the driving is more stable and safe; the front suspension is equipped with a horizontal stabilizer bar, and the rear suspension adopts a unique main and secondary spring structure, and the anti-rolling ability is strong;

The front and rear axles adopt enlarged and widened brakes, and the braking distance of the whole vehicle is shorter; the synchronous design of the upper chassis and the simulation of the multi-function calculation of the upper loading and the chassis are supplemented by the reliability test of the prototype 10,000 km to ensure safety and reliability;

The national four-emission engine, 180 horsepower, strong power; sophisticated technical matching, fuel-saving and environmental protection; increased flow air filter, optimized intake resistance, filtration efficiency is 30% higher than ordinary mixers;

Product Parameter

Category Model Unit G06K
Performance of mixing drum Geometric volume m³ 11.6
Max. diameter of drum mm 2250
Drum length mm 4217
Mounting tilt angle ° 15
Rotary speed r/min 0~14
Charging speed m³/min ≥3
Discharging speed m³/min ≥2
Residual ratio of discharging % <0.7
Range of slump cm 5~21
Hydraulic system Oil pump World-famous brand
Motor World-famous brand
Speed reducer World-famous brand
Hydraulic circuit Closed type
Water supply Volume of water tank L 450
Way of water supply Air pressure
Overall machine Chassis brand SinoTruck
Chassis model ZZ1255N3246B1
Steering wheel Left steering wheel
Curb mass kg 12250
Driving type 6×4
Wheelbase mm 3225+1350
PTO way Flywheel PTO
Outline dimension (L*W*H)mm 8240*2500*3740
Engine Model WD615.69
Rated power Kw/r/min 247
Displacement L 9.726
Emission standard II

Product Photos

6 Cbm Small Diesel Concrete Mixer Truck G06K XCMG Factory

6 Cbm Small Diesel Concrete Mixer Truck G06K XCMG Factory

6 Cbm Small Diesel Concrete Mixer Truck G06K XCMG Factory

6 Cbm Small Diesel Concrete Mixer Truck G06K XCMG Factory
