CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
Specifications
Brand Name :
CAMC
Model Number :
H9
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, Western Union
Supply Ability :
5000pcs/year
Delivery Time :
Full payment 15-20 work days
Packaging Details :
Naked, frame, container
Kerb Weight :
6805kg
GVW :
18000kg
Gearbox :
9SDB2051A
Displacement :
9.84L
Engine :
CM6D18 345 50
Overall Dimension :
5915x2495x3200mm
Description

New Energy CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck

Product Parameter

Name
H9 6x4 Mixer Truck
Brand / Series
CAMC / H9 electric energy type
Drive type
6x4
Wheel base(mm)
3600
Quasi-tow mass(kg)
34865
Kerb Weight (kg)
6805
Rated GVW/ GVW (kg)
6805/18000
Overall dimension (mm)
5915x2495x3200
CAB
Type
CAMC H9 flat roof Cab
Color
Standard color: red, yellow, blue, white; others: optional but charge
Parameter
With two berth,Berth curtain,Leather 4-spoke Steering Wheel,Rear window,electronic and Hydraulic reversal cab,power window,
hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof
flap, with stereo radio and MP3, and adjustable steering wheel, air horn, single berth with 4-point support fully floating
suspension and shock absorber with transverse stabilizer, safety belt.
Others
A/C, radio,MP3, one sleeper, curtain etc.
ENGINE
Supplier
CAMC-The Chinese most advanced truck Engine Producer
Model
CM6D18 345 50
Type
Four-troke, water-cooled, in-line, wet-liner, direct-injection
Maximum power/horsepower(kw/hp)
254/345
Maximum rated speed(rpm)
1900
Max torque(N.m/rpm)
1660/1100-1400
Cylinders
6
Bore x Stroke (mm)
118*150
Displacement (L)
9.84
Controller type
Electrical
Air cleaner
Dry paper element
Emission Standard
Euro V
TRANSMISSION
Supplier
CAMC (same level as ZF technology)
Model
9SDB2051A
Type
Mechanical & manual with servo & Synchronizer & creep
Speed ratio
9 forward ratio:15.49, 12.07,8.35,5.67,4.07,2.96,2.05,1.39,1.00
1 reverse ratio:14.19
CLUCH
Type
Single- plate dry diaphragm spring clutch, diameter 430(A) mm, hydraulically operating with air assistance
Plate diameter
430mm
STEERING SYSTEM
Driving position
Left or Right hand drive available
Type
hydraulic steering with power assistance
Ratio
22.2-26.2:1
Supplier
CAMC
Front axle
CAMC technology steering axle with double T-cross section, Rated capacity:7.5T
Rear axle
CAMC technology 16T casting axle , with double reduction and differential locks between axles, Rated capacity:16T
ratio: 4.10

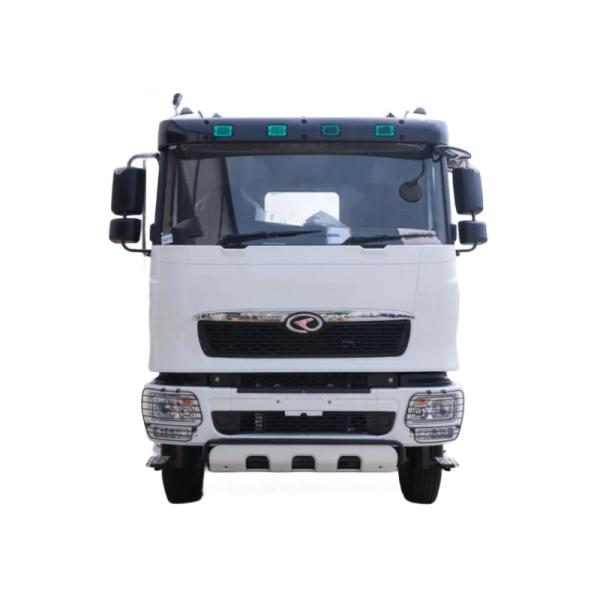

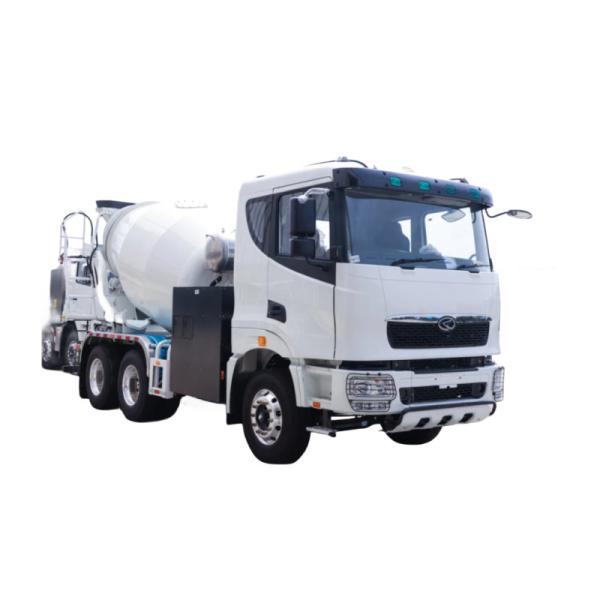

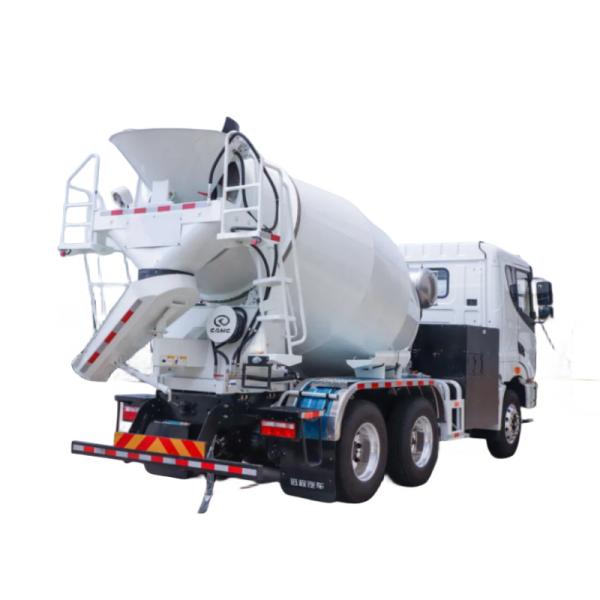

Detailed Photos
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
CAMC H9 6x4 Heavy Duty Construction Concrete Mixer Truck New Energy
