Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
Specifications
Brand Name :
SINOTRUK
Model Number :
ZZ1257N3247B1R
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, Western Union
Supply Ability :
5000pcs/year
Delivery Time :
Full payment 15-20 work days
Packaging Details :
Naked, frame, container
Kerb Weight :
12600kg
GVW :
25000kg
Engine :
WP10.340E22
Motor :
ARK MF089
Max. Speed :
90 km/h
Overall Dimension :
8375*2496*3853mm
Description

Sinotruk HOWO 8 10 12 14 16 Cbm Variable Capacity on-Site Hydraulic Discharge Drum Mixing Concrete Mixer

Product Parameter

MAIN SPECIFICATIONS
Model ZZ1257N3247B1R(RHD) Steering BO SCH
Engine Brand SINOTRUK Gross Vehicle Weight 25000kg
WP10.340E22 Dead Weight 12600kg
Maximum Output 340HP Tyres 12.00-20 Nylon tyre
Rated engine power 250/2200 Cab Right hand driving HOWO76 single sleeper
Air-condition
Transmission HW19709XST
 Max.Driving Speed 90 km/h
Front Axle SINOTRUK Model:HF9
9		 Geometric volume M3 13.5
Max.loading:9000kg
9		 Agitating capacity M3 8
Rear Axle SINOTRUK Model:HC16
16		 Discharging remain ration <0.2%
Max.loading:32000kg
32
Pump ARK PV089 Water tank volume 400L
Motor ARK MF089 Drum slope 15
Reducer TOPUNION P58 Cooler YS-18L
Overall Dimension(mm) 8375*2496*3853

Detailed Photos

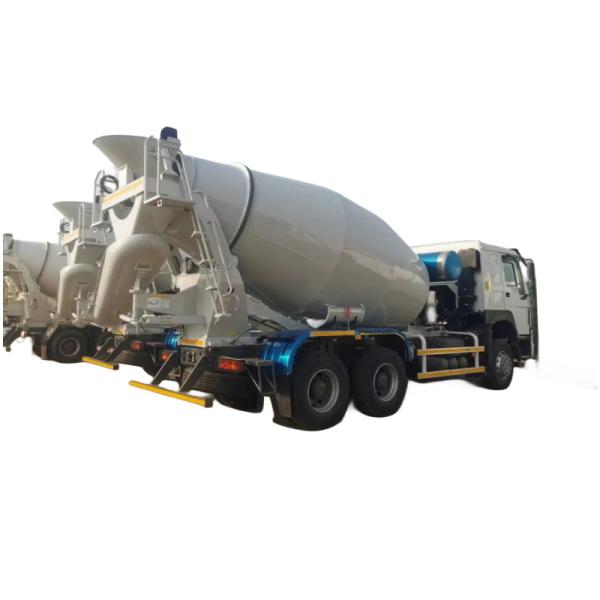

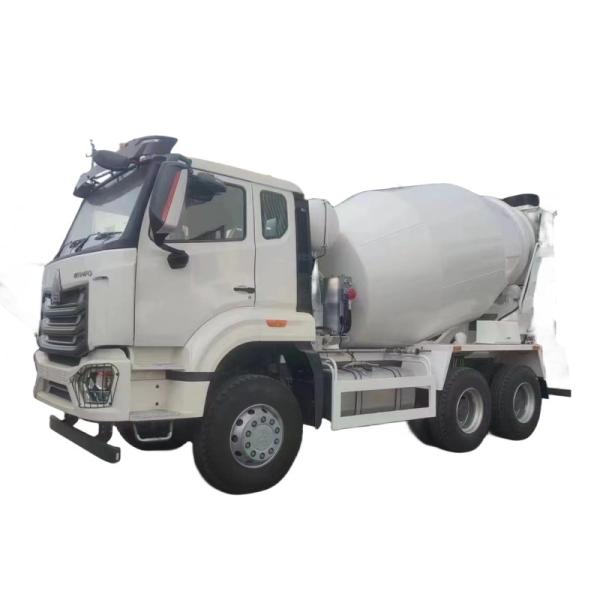

Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
Sinotruk HOWO on-Site Hydraulic Discharge Drum Mixing Concrete Mixer 8 10 12Cbm Variable Capacity
