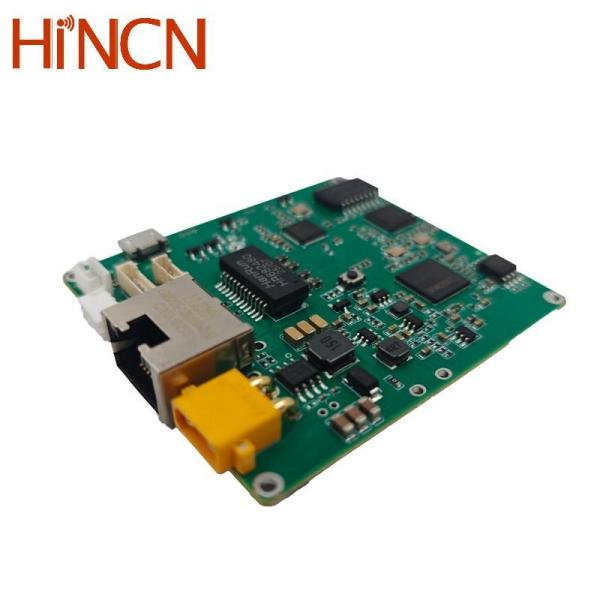

5~22km Range TDD Full Duplex VTX Module for UAV Drone Video Data Link Support OEM

Key Features:

• TDD OFDM full duplex VTX module for video data Link.
• RF Power: 25±2dBm.
• Working Frequency: 806~826HMz, 1428~1468MHz, 2402~2482MHz.
• Support transparent IP Data transmission (2* Ethernet ports).
• Support serial data transmission( 3* TTL/ RS232 uart).
• Audio input and output with codec.
• Without installing an external power amplifier, transmit distance: 500~2000 meter(ground-to-ground), 5~22km(UAV-to-ground).
• Supports Point-to-Point and Point-to-Multipoint Networks or Mesh networks.

VTX module Overview:

HCL-DLB VTX module was designed for video data wireless transmission with two way wireless data link. This OFDM radio module works at 800MHz, 1.4GHz and 2.4GHz bands, with frequency hopping technology (FHSS) to make sure better stability signal communication.

Specifications:

Wireless Networking with HCL-DLB module:

DLB VTX module supports two operating modes: Access Node or Central Node. It can be managed through Web UI or AT command via uart3. DLB module supports features of maximum 16 Access Nodes connected to a Central Node. All of the Nodes are in a same wireless LAN and share the whole transmission bandwidth (maximum 30Mbps@20MHz throughput). Data from Central Node to Access Node, we call downlink, and data from Access Node to Central Node, we call uplink. Uplink and downlink stream ratio can be controlled through web UI or AT command. When using DLB module for Point-to-Point transmitting, uplink and downlink share the whole transmission bandwidth (maximum 30Mbps@20MHz throughput) too. DLB module supports networking mode: Point -to-Point, Point-to-Multipoint, Relay, and Mesh (specify mesh version when order).

Point-to-Point networking type:

Point to Multipoint networking type

Relay networking type

Mesh networking type (Specify)

Application:

FAQ

Q1. This VTX module seems to support IP camera, what if I want to use a camera with HDMI or SDI video output?

A: Yes, the default video input is IP RJ45 Ethernet port, if your camera only has HDMI, SDI, AHD or AV output, you need to buy our mini encoder device to encode the video and audio signal into digital data for transmission. At the receiver end, you can connect it directly to your computer or NVR. If you want to output to an HDMI monitor, you can also buy our decoder device to convert the digital data back into HDMI video and audio signals.
