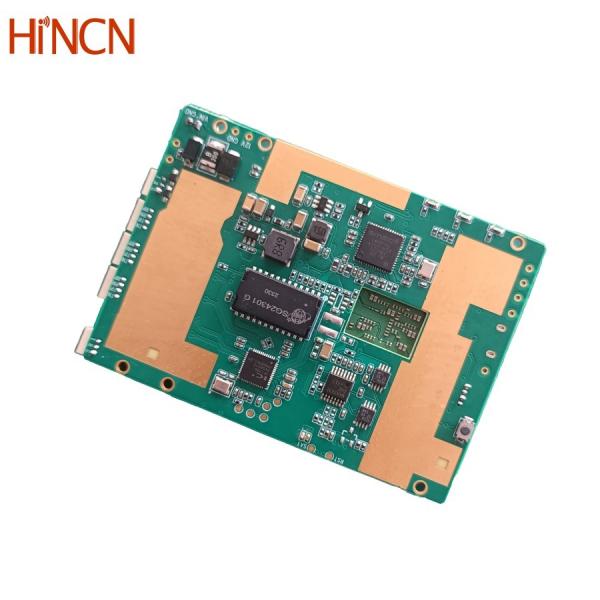

Long Range OFDM TDD Radio Module Two Way Communication 600MHz 1.4G
Long Range OFDM TDD Radio Module Two Way Communication 600MHz 1.4G
Long Range OFDM TDD Radio Module Two Way Communication 600MHz 1.4G
Long Range OFDM TDD Radio Module Two Way Communication 600MHz 1.4G
Specifications
Brand Name :
Hincn
Model Number :
HCL6-M30
Place of Origin :
China
MOQ :
1set
Price :
US$1,899.00~US$2,199.00
Payment Terms :
,T/T,Western Union,D/P,D/A,L/C,MoneyGram
Supply Ability :
799 pcs/month
Delivery Time :
7~14 working days
Packaging Details :
carton package
Modulation :
TDD OFDM
Frequency :
566~678MHz, 1420~1530MHz
RF Power :
24± 1dBm* 2 channels+2W*2 external power amplifier
Network mode :
Point to Point, Point to Multipoint, Relay, Mesh
Transmission Range :
30km~55km LOS (UAV to ground)
OEM& ODM :
Support
Description
30~55km Long Range TDD OFDM Two Way Communication 600MHz 1.4G Ethernet Wireless Radio
Key Features
  • TDD OFDM full duplex radio for audio video data transmission
  • RF Power: 24±1dBm* 2 channels+5W external power amplifier
  • Working Frequency: 566MHz~678HMz, 1420MHz~1530MHz
  • With 3 Ethernet for audio video transmission and 1 RS232 uart/TTL for data link
  • Long transmission range 30km~55km (UAV to ground)
  • Great transfer rate for uplink and downlink
  • Support Point to Point, Point to Multipoint, Relay, Mesh
Overview

HCL6-M30 TDD radio is newly designed for video data wireless transmission with two way wireless data link. This OFDM radio module works at 600MHz and 1.4GHz bands, with frequency hopping technology (FHSS) to ensure the stability of signal transmission.

Specifications
Name TDD COFDM Two Way Video Radio Modem For Audio Video Data Wireless Transmission
Modulation TDD OFDM
Model number HCL6-M
Frequency 566~678MHz, 1420~1530MHz
FHSS Support FHSS inside each band
Bandwidths 1.4/3/5/10/20MHz
Throughput Maximum 100Mbps
RF Transmission Power 24± 1dBm* 2 channels
Constellation QPSK, 16QAM, 64QAM self adaption
Sensitivity -95dBm (20MHz bandwidth)
Ethernet port 3 * Ethernet ports for IP data transmission
Serial port 1 * RS232 for serial data transmission
Transmission Range Up to 22km LOS (UAV to ground), and 2km LOS(ground to ground)
Management Web UI and Control Uart
Encryption AES128
Networking Mode Point to Point, Point to Multipoint, Relay, Mesh
Power Consumption <7W
Modem Dimensions 80*57*9.1mm
Modem Weight 41g
Working Temp. -20℃ ~ +65℃
Storage Temp. -40℃ ~ +80℃
Input/Output Signal
Power in 2PIN PH2.0mmConnector, DC in:9~30V
Ethernet 1 4PIN PH1.25mm Connector
Ethernet 2 4PIN PH1.25mm Connector
Ethernet 3 4PIN PH1.25mm Connector
Data uart 3PIN PH1.25mm Connector, RS232(or TTL 3.3V)
Control uart 3PIN PH1.25mm Connector, TTL 3.3V
Audio input and output 4PIN PH1.25mm connector
USB Micro USB connector, for software upgrading
Switch TX/RX control signal for outside power amplifier
Main-Antenna TX/RX antenna port, IPEX
Second-Antenna TX/RX antenna port, IPEX
12V out On board 12V out (<200mA), for cool fan power supply
Long Range OFDM TDD Radio Module Two Way Communication 600MHz 1.4G Long Range OFDM TDD Radio Module Two Way Communication 600MHz 1.4G
Wireless Networking with HCL6-M Module

The HCL6-M TDD video radio modem supports two operation modes: access node mode or central node mode. It can be managed through the network user interface or by sending AT commands via the control Uart. It supports the function of up to 63 access nodes connecting to one central node.

All nodes are in the same wireless local area network and share the entire transmission bandwidth (maximum 100Mbps transmission rate). The data from the central node to the access node is called downlink data, and the data from the access node to the central node is called uplink. The ratio of uplink and downlink data streams can be controlled through the network user interface or AT commands.

When using it for point-to-point transmission, the uplink and downlink data streams also share the entire transmission bandwidth (maximum 100Mbps transmission rate).
