RC Drone Airplane UAV Data Link System Radio Telemetry Realtime Transmission
RC Drone Airplane UAV Data Link System Radio Telemetry Realtime Transmission
RC Drone Airplane UAV Data Link System Radio Telemetry Realtime Transmission
RC Drone Airplane UAV Data Link System Radio Telemetry Realtime Transmission
Specifications
Brand Name :
Hincn
Model Number :
HNC2-500mW
Place of Origin :
China
MOQ :
1 set (2pcs)
Price :
US$399~US$488
Payment Terms :
,T/T,Western Union,L/C,D/A,D/P,MoneyGram
Supply Ability :
500sets/Month
Delivery Time :
7~14 working days
Packaging Details :
Carton packing
Modulation :
QPSK modulation LDPC coding
Air-to-ground LOS(light of sight) distance :
≥30km
Encryption :
128-bit encryption
Uart port :
TTL,RS232 or RS422
Voltage :
7-36V
OEM& ODM :
Support
Description
UAV Data Link Radio Telemetry For RC Drone Airplane Real Time Transmission
Product Attributes
Modulation QPSK modulation LDPC coding
Air-to-ground LOS distance ≥30km
Encryption 128-bit encryption
Uart port TTL, RS232 or RS422
Voltage 7-36V
OEM & ODM Support
Key Features
  • Supports wireless link rates up to 735kbps
  • Supports Point-to-Point, Point-to-Multipoint, Multipoint-to-Point and Mesh topologies
  • Supports mesh network with a maximum of 1024 nodes
  • High sensitivity: -114 dBm at 125kHz data rate
  • Supports frequency hopping (FHSS)
  • Air-to-ground LOS distance: ≥30km
  • Two serial ports (TTL/RS232/RS422 optional)
Overview of HNC2-500mW UAV Data Link

This system enables centerless long-distance communication between large-scale nodes, allowing all nodes to communicate independently without interference. Key capabilities include:

  • Support for large-scale dense node wireless transmission with dynamic networking
  • Full-multiplexing communication allowing simultaneous data transmission/reception
  • Interoperability between any nodes in a centerless network
  • Robust communication continues even if nodes are destroyed
Applications

Ideal for swarming drones, Internet of Things, data chains, remote control, data collection, artificial intelligence, and communications.

Available Models
Model RF Power Network Scale Frequency Bands
HNC2-H400-500mW 500mW Max. 1024 nodes, up to 16 hops 430~450MHz
HNC2-H800-500mW 500mW Max. 1024 nodes, up to 16 hops 820~854MHz
HNC2-H900-500mW 500mW Max. 1024 nodes, up to 16 hops 900~940MHz
HNC2-F400-500mW 500mW Max. 256 nodes, up to 3 hops 430~450MHz
HNC2-F800-500mW 500mW Max. 256 nodes, up to 3 hops 820~854MHz
HNC2-F900-500mW 500mW Max. 256 nodes, up to 3 hops 900~940MHz
Technical Specifications
Model Number HNC2-500mW
Frequency Varies by model (see above table)
Bandwidths 1MHz/500kHz/250kHz/125kHz selectable
Network capacity 1024 nodes (16 hops) or 256 nodes (3 hops)
Frequency hopping speed 1MHz: 1800+ hops/sec, 500kHz: 900+ hops/sec, 250kHz: 450+ hops/sec, 125kHz: 225+ hops/sec
Data rate 1MHz: 735kbps, 500kHz: 370kbps, 250kHz: 185kbps, 125kHz: 92kbps
Air-to-ground distance ≥30km LOS
Network construction time <1 second
Transmission delay Minimum 2ms
RF power 500mW (27dBm)
Sensitivity 125kHz: -114dBm, 250kHz: -111dBm, 500kHz: -108dBm, 1MHz: -105dBm
Modulation QPSK with LDPC coding
Encryption 128-bit
Power consumption <1W (receive), <4W (transmit), average <2.5W
Operating voltage 7-36V (24V default)
Temperature range -40°C to +85°C
Dimensions 53×53×17.3mm
Weight 65g

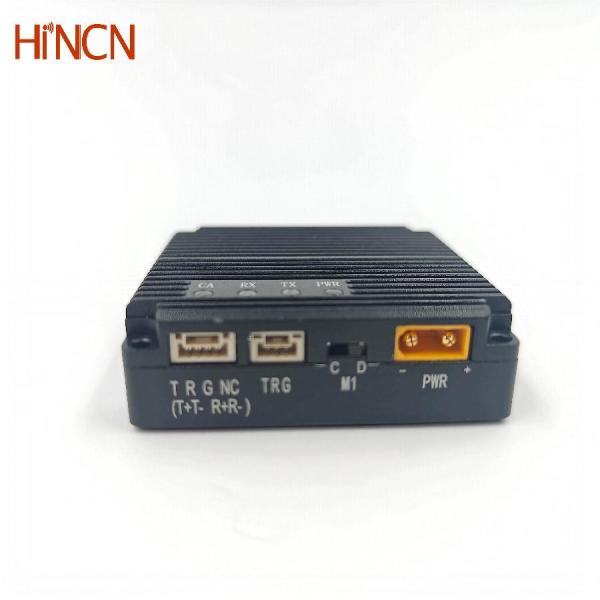

Input/Output
I/O Description
Power-in XT30PW-M connector
Dip-switch Configuration/transparent transmission mode selector
Uart 1 Config/transparent data port (TTL 3.3V default, optional RS232/RS422)
Uart 2 Transparent data port (TTL 3.3V default, optional RS232/RS422)
ANT SMA female (50Ω antenna)
PWR-LED Red power indicator
RX-LED Green data receive indicator
TX-LED Green data transmit indicator
CA-LED Blue interference indicator
