High-Power GaN Drone Countermeasure Amplifier Module with Built-in Sweep Source & Enable Function
High-Power GaN Drone Countermeasure Amplifier Module with Built-in Sweep Source & Enable Function
High-Power GaN Drone Countermeasure Amplifier Module with Built-in Sweep Source & Enable Function
High-Power GaN Drone Countermeasure Amplifier Module with Built-in Sweep Source & Enable Function
High-Power GaN Drone Countermeasure Amplifier Module with Built-in Sweep Source & Enable Function
High-Power GaN Drone Countermeasure Amplifier Module with Built-in Sweep Source & Enable Function
High-Power GaN Drone Countermeasure Amplifier Module with Built-in Sweep Source & Enable Function
High-Power GaN Drone Countermeasure Amplifier Module with Built-in Sweep Source & Enable Function
Specifications
Brand Name :
kimghz technology
Model Number :
KH-PAC150W
Certification :
CE
Place of Origin :
Original/CHINA
MOQ :
10 Pieces
Price :
Discussion
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pieces/month
Delivery Time :
3-8days
Packaging Details :
International Standard Packing
model :
KH-PAC150W
Voltage :
28V
Current :
≤12A
Frequency :
100~6000MHz
Power Output :
100W
Weight :
800g
Dimension :
170*80*25mm
Other functions :
With enable, containing a sweep frequency source
Description

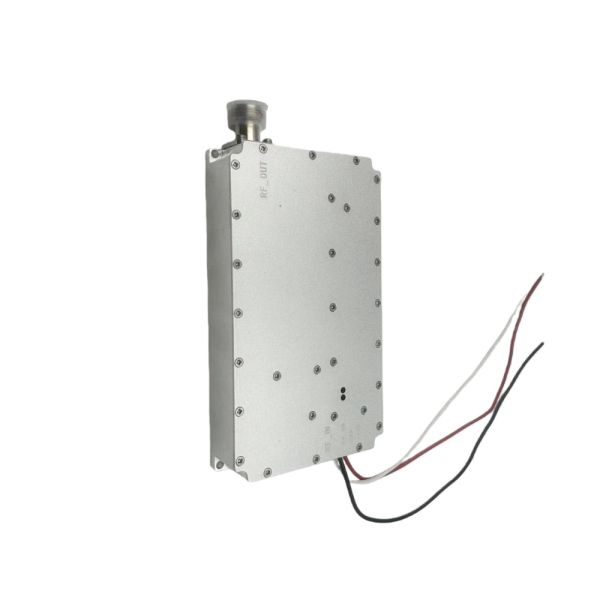

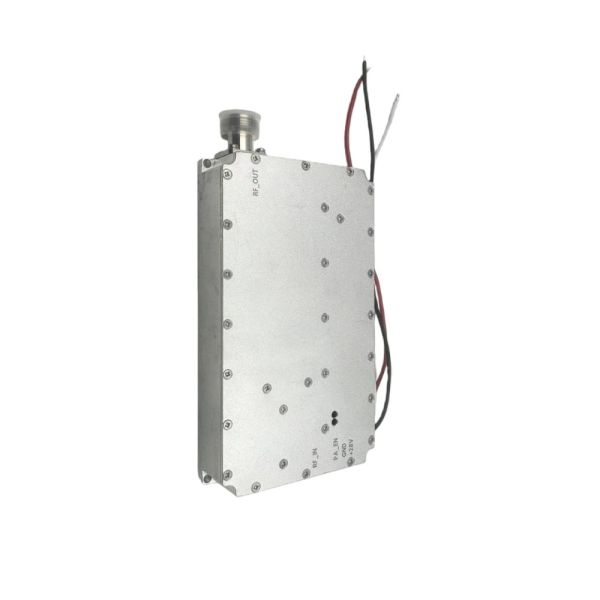

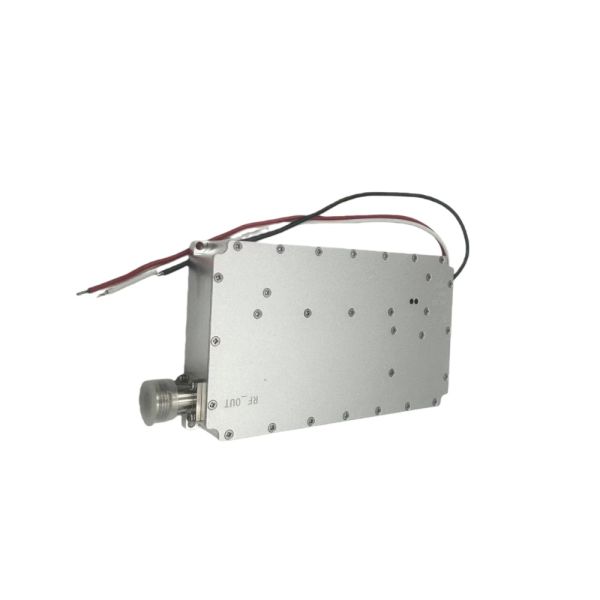

High-Power GaN Drone Countermeasure Amplifier Module with Built-in Sweep Source & Enable Function
As a pivotal component in advanced electronic defense systems, the 150W Power Amplifier Countermeasure Module is specially designed to disrupt and neutralize drone signals across a broad frequency spectrum. Adopting Class AB Gallium Nitride (GaN) technology, this module delivers high-power RF amplification, producing targeted directional signals within its operating range to interrupt the communication and navigation links between drones and their ground controllers. This effective interference enables the repulsion or forced landing of unauthorized drones, making it an ideal solution for securing critical infrastructure, confidential facilities, and supporting emergency countermeasure missions. Equipped with a built-in sweep source and enable function, it offers enhanced operational flexibility and control.
Product Specifications
Parameter Specification
Frequency 100-6000 MHz
Output Power 150 W
Supply Voltage 28 V DC
Operating Current Approximately 12 A
Dimensions (L×W×H) 170×80×25 mm
Weight 0.8 Kg
Output Interface N Female Connector
Power Supply Interface Power Cable
Additional Functions Enable Function Included, Built-in Sweep Source


High-Power GaN Drone Countermeasure Amplifier Module with Built-in Sweep Source & Enable FunctionHigh-Power GaN Drone Countermeasure Amplifier Module with Built-in Sweep Source & Enable FunctionHigh-Power GaN Drone Countermeasure Amplifier Module with Built-in Sweep Source & Enable Function

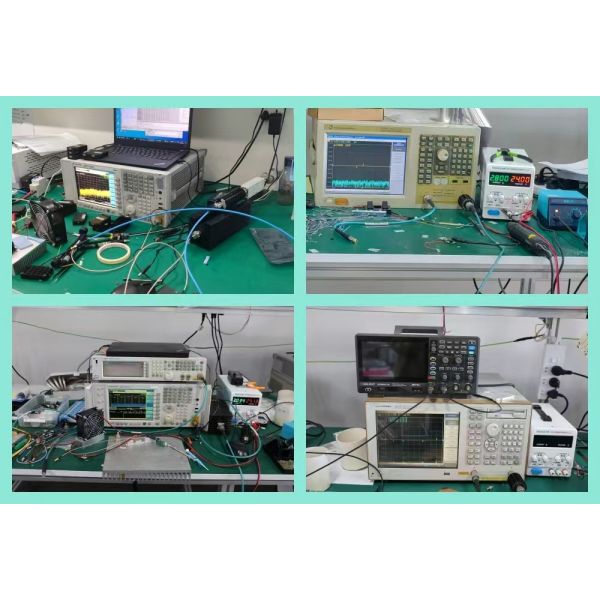

Test Part

High-Power GaN Drone Countermeasure Amplifier Module with Built-in Sweep Source & Enable Function

Key Features
  • Frequency Range: 100 - 6000 MHz; Bandwidth: 100 - 300 MHz
  • Class AB Gallium Nitride (GaN) Design
  • Instantaneous Wide Bandwidth Performance
  • Input/Output Impedance: 50 Ohms
  • Compact and Lightweight Structure
  • High Reliability and Durability for Severe Operating Environments
