Specifications
Brand Name :
kimghz technology
Model Number :
KH-PAC100W
Certification :
CE
Place of Origin :
Original/CHINA
MOQ :
10 Pieces
Price :
Discussion
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pieces/month
Delivery Time :
3-8days
Packaging Details :
International Standard Packing
model :
KH-PAC100W
Voltage :
28V
Current :
≤8.5A
Frequency :
100~6000MHz
Power Output :
100W
Weight :
520g
Dimension :
140*80*25mm
Other functions :
With enable, containing a sweep frequency source
Description
Power Amplifier Countermeasure Module 100~6000MHz 28V 100W With Enable Function VTX FPV Built-in Sweep Source
Product Overview

The Power Amplifier Countermeasure Module is a core component of high-end electronic protection equipment, specifically designed for effective jamming and countermeasures against UAV signals in specific frequency bands. Its operating frequency range is 100~6000MHz, with a customizable bandwidth of 100-300 MHz. This device is manufactured using gallium nitride (GaN) substrate technology and mounted on a copper substrate, achieving enhanced heat dissipation through patented technology.

Product Features
  • Frequency range: 100~6000MHz, bandwidth: 100-300MHz
  • Class AB gallium nitride (GaN) design
  • Instantaneous wide bandwidth
  • 50-ohm input/output impedance
  • Small size and lightweight
  • High reliability and ruggedness

Technical Specifications

Brand Name Kimghz technology
Model Number KH-PAC100W
Frequency 100~6000MHz (customizable); Bandwidth: 100-300MHz; Instantaneous wide bandwidth
Power Output 100 Watt
Interfaces & Control RF Output: N Female; Power: Red VCC (28V DC); Enable: White PA-EN (3.3-5V/28V); Ground: Black GND
Power Supply 28V
Current ≤8.5A
Impedance 50Ω (I/O)
Power amplifier countermeasure module 100~6000MHz 28V 100W With enable function VTX FPV Built-in sweep sourcePower amplifier countermeasure module 100~6000MHz 28V 100W With enable function VTX FPV Built-in sweep sourcePower amplifier countermeasure module 100~6000MHz 28V 100W With enable function VTX FPV Built-in sweep source

Test Part

Power amplifier countermeasure module 100~6000MHz 28V 100W With enable function VTX FPV Built-in sweep source

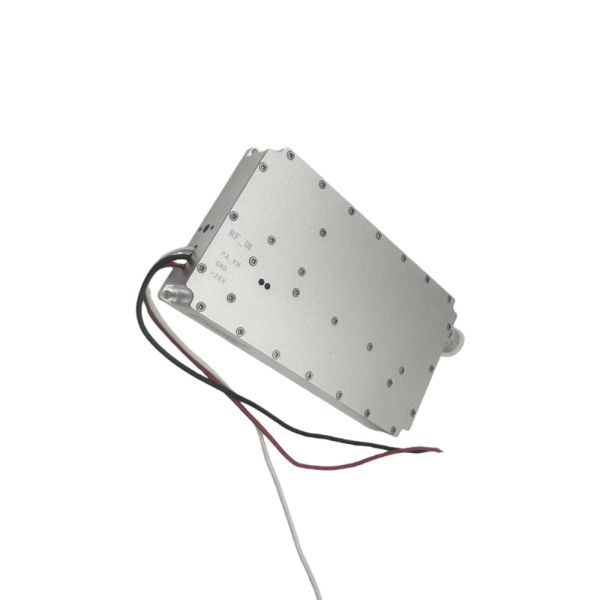

The module interface definitions are as follows:


· VCC: Red power cord, DC 28V input, providing working power for the module

· RF-OUT: N female output connector, signal output terminal of the power amplifier module

· PA-EN: White enable wire, 3.3-5V or 28V enable

· GND: Black ground wire
