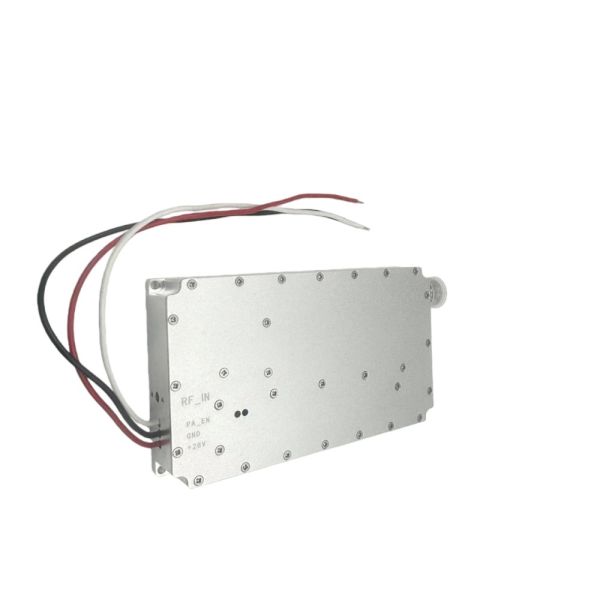

VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 100W Built-in Sweep Source With Enable Function
VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 100W Built-in Sweep Source With Enable Function
VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 100W Built-in Sweep Source With Enable Function
VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 100W Built-in Sweep Source With Enable Function
VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 100W Built-in Sweep Source With Enable Function
VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 100W Built-in Sweep Source With Enable Function
VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 100W Built-in Sweep Source With Enable Function
VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 100W Built-in Sweep Source With Enable Function
Specifications
Brand Name :
kimghz technology
Model Number :
KH-PAC100W
Certification :
CE
Place of Origin :
Original/CHINA
MOQ :
10 Pieces
Price :
Discussion
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pieces/month
Delivery Time :
3-8days
Packaging Details :
International Standard Packing
model :
KH-PAC100W
Voltage :
28V
Current :
≤8.5A
Frequency :
100~6000MHz
Power Output :
100W
Weight :
520g
Dimension :
140*80*25mm
Other functions :
With enable, containing a sweep frequency source
Description
VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 100W Built-in Sweep Source With Enable Function
Product Overview

The Power Amplifier Countermeasure Module serves as the core component of high-end electronic protection equipment, specifically engineered to effectively jam and counter UAV signals across designated frequency bands. Utilizing advanced GaN (gallium nitride) substrate technology mounted on a copper base with patented enhanced heat dissipation, this module ensures stable operation even in demanding environmental conditions.

Technical Specifications

Brand Name Kimghz technology
Model Number KH-PAC100W
Frequency 100~6000MHz (customizable); Bandwidth: 100-300MHz; Instantaneous wide bandwidth
Power Output 100 Watt
Interfaces & Control RF Output: N Female; Power: Red VCC (28V DC); Enable: White PA-EN (3.3-5V/28V); Ground: Black GND
Power Supply 28V
Current ≤8.5A
Impedance 50Ω (I/O)
VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 100W Built-in Sweep Source With Enable Function

Test Part

VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 100W Built-in Sweep Source With Enable Function

Key Features
  • Class AB GaN design for optimal performance
  • Instantaneous wide bandwidth capability
  • 50Ω input/output impedance
  • Compact and lightweight construction
  • High reliability and ruggedness
  • Built-in frequency sweep source
  • Enable function for operational control
