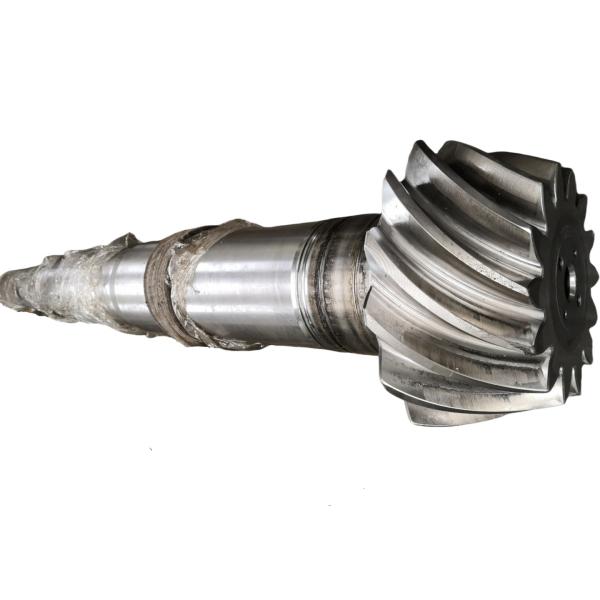

Mechanical Transmission Gear Shaft for Mining and Metallurgical Equipment
Mechanical Transmission Gear Shaft for Mining and Metallurgical Equipment
Specifications
Brand Name :
YIZGEAR
Place of Origin :
CHINA
MOQ :
200 Sets
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Month
Delivery Time :
30 Days
Packaging Details :
Plywood Crate
Quality Grade :
ISO 6 Grade
Precision :
High Precision
Type :
Shaft
Function :
Transmit Power
Teeth Number :
Custom
Manufacturing Process :
Gear Grinding
Heat Treatment :
Quenching
Description

1) Descriptions of Transmission Gear Shaft

Transmission gear shafts are mechanical parts made of specific metallic or non-metallic materials,

processed and heat-treated with good mechanical properties, and used to transmit power and motion.

2) Features of Transmission Gear Shaft

a) High strength: commonly used 45 steel, 20CrMnTi and other alloy steel materials, after tempering, carburising quenching

and other heat treatment, the surface hardness is high, the core toughness is good, and can withstand large loads.

b) Good abrasion resistance: through the appropriate materials and heat treatment process, improve the surface abrasion resistance of

the gear shaft, prolong the service life.

c) Corrosion resistance: In special environment, corrosion-resistant materials such as stainless steel can be used to ensure the normal work of gear shaft.

3) Working Principle of Transmission Gear Shaft

Based on the mechanical properties of the material, the material is subjected to loads such as torque and bending stresses

during the power transmission process, and transmits and transforms the forces through internal inter-atomic interactions

and changes in the crystalline lattice structure, while resisting deformation and wear.

4) Application of Transmission Gear Shaft

In mining machinery, metallurgical equipment and other harsh working conditions, the need to use high-strength,

wear-resistant materials of the gear shaft; in the food machinery, medical equipment and other high hygiene requirements of the field, more stainless steel gear shaft.

Products Transmission Gear Shaft
Custom Made √
Gear Profile Type Gleason
Gear Teeth Manufacturing Gear Grinding
Gear Teeth Grinding √
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC
STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 　 18XГT 　 SMK22 　
20Cr2Ni4 　 20X2H4A 　 　 　
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 　 40XH2MA/
40XHMA		 4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420 　

Mechanical Transmission Gear Shaft for Mining and Metallurgical Equipment

Mechanical Transmission Gear Shaft for Mining and Metallurgical EquipmentMechanical Transmission Gear Shaft for Mining and Metallurgical EquipmentMechanical Transmission Gear Shaft for Mining and Metallurgical Equipment

Mechanical Transmission Gear Shaft for Mining and Metallurgical EquipmentMechanical Transmission Gear Shaft for Mining and Metallurgical EquipmentMechanical Transmission Gear Shaft for Mining and Metallurgical Equipment

Mechanical Transmission Gear Shaft for Mining and Metallurgical Equipment

Mechanical Transmission Gear Shaft for Mining and Metallurgical EquipmentMechanical Transmission Gear Shaft for Mining and Metallurgical EquipmentMechanical Transmission Gear Shaft for Mining and Metallurgical Equipment

Mechanical Transmission Gear Shaft for Mining and Metallurgical Equipment

Mechanical Transmission Gear Shaft for Mining and Metallurgical EquipmentMechanical Transmission Gear Shaft for Mining and Metallurgical EquipmentMechanical Transmission Gear Shaft for Mining and Metallurgical Equipment

Mechanical Transmission Gear Shaft for Mining and Metallurgical Equipment
