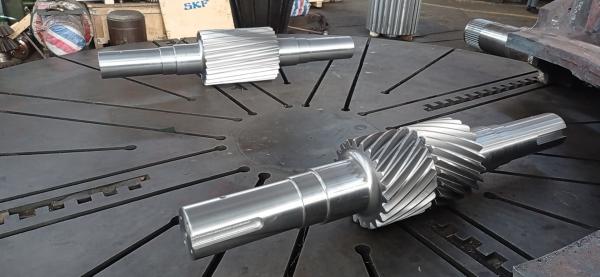

Custom-made SAE 4340 Steel Transmission Spare Parts Helical Gear Shafts
Custom-made SAE 4340 Steel Transmission Spare Parts Helical Gear Shafts
Specifications
Brand Name :
YIZGEAR
Model Number :
GS22112403
Place of Origin :
CHINA
MOQ :
2 Pieces
Price :
$1850.0/Piece
Payment Terms :
L/C, D/P, Western Union, T/T
Supply Ability :
300 Pieces/Month
Delivery Time :
60 Days
Packaging Details :
Plywood Crate
Material :
40CrNiMoA
DP :
1.5
Helix Angle :
5°-45°
Profile :
Single Helix or Double Helix
Teeth width :
11-24"
Pressure Agnle :
20°
Quality Grade :
ISO 6-7 Grade
Description

Custom-made SAE 4340 Steel Transmission Spare Parts Helical Gear Shafts

1) FLECHA PINON HERRINGBONE DE 22 DIENTES
FLECHA PINON HELICOIDAL DE 24 DIENTES
2) MATERIAL: ACERO FORJADO Y NORMALIZADO SAE 4340
3)Heat Treament: Induction Hardening
Hardness: 45-50 HRC
4) Gear Grinding
Quality: ISO 6-7 Grade
5) PASO DIAMETRAL

ANGULO DE PRESION

DIAMETRO PRIMITIVO

NUMERO DE DIENTES

AGGULO DE HELICE

Products Left Hand Helical Gear Shaft
Custom Made √
Gear Profile Type Cylindrical Gear
Gear Teeth Manufacturing Gear Hobbing
Gear Teeth Grinding √
Module (M) Custom Made
Number of Teeth (Z) Custom Made
Pressure Angle (α) 20°
Lead Angle 5°~45°
Accuracy Grade ISO 6-7 Grade
Heat Treatment Induction Hardening
Surface Hardness 45-50 HRC

STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 　 18XГT 　 SMK22 　
20Cr2Ni4 　 20X2H4A 　 　 　
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 　 40XH2MA/
40XHMA		 4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420 　

Custom-made SAE 4340 Steel Transmission Spare Parts Helical Gear Shafts

Custom-made SAE 4340 Steel Transmission Spare Parts Helical Gear ShaftsCustom-made SAE 4340 Steel Transmission Spare Parts Helical Gear ShaftsCustom-made SAE 4340 Steel Transmission Spare Parts Helical Gear Shafts

Custom-made SAE 4340 Steel Transmission Spare Parts Helical Gear ShaftsCustom-made SAE 4340 Steel Transmission Spare Parts Helical Gear ShaftsCustom-made SAE 4340 Steel Transmission Spare Parts Helical Gear Shafts

Custom-made SAE 4340 Steel Transmission Spare Parts Helical Gear Shafts

Custom-made SAE 4340 Steel Transmission Spare Parts Helical Gear ShaftsCustom-made SAE 4340 Steel Transmission Spare Parts Helical Gear ShaftsCustom-made SAE 4340 Steel Transmission Spare Parts Helical Gear Shafts

Custom-made SAE 4340 Steel Transmission Spare Parts Helical Gear Shafts

Custom-made SAE 4340 Steel Transmission Spare Parts Helical Gear ShaftsCustom-made SAE 4340 Steel Transmission Spare Parts Helical Gear ShaftsCustom-made SAE 4340 Steel Transmission Spare Parts Helical Gear Shafts

Custom-made SAE 4340 Steel Transmission Spare Parts Helical Gear Shafts
