Custom Pressure Angle and Lead Angle Optimised Transmission Gear Shaft for Energy Efficiency
Custom Pressure Angle and Lead Angle Optimised Transmission Gear Shaft for Energy Efficiency
Specifications
Brand Name :
YIZGEAR
Place of Origin :
CHINA
MOQ :
200 Sets
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Month
Delivery Time :
30 Days
Packaging Details :
Plywood Crate
Quality Grade :
ISO 6-7 Grade
Material :
Steel
Gear Type :
Spur Gear
Finish :
Smooth
Size :
Customized
Manufacturing Process :

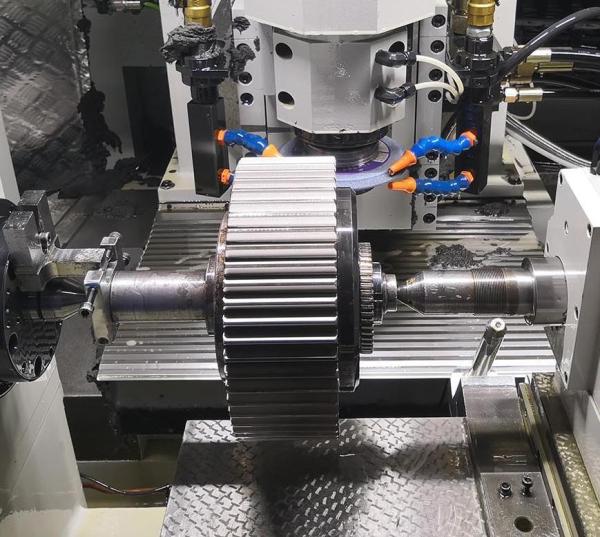

Gear Grinding
Description

1) Descriptions of Transmission Gear Shaft

Optimised transmission components designed to increase the efficiency of energy transfer and reduce losses.

2) Features of Transmission Gear Shaft

a) Low noise: precision meshing reduces vibration.

b) High efficiency: transmission efficiency can reach more than 98% (such as helical gear design).

c) Energy saving and environmental protection: reduce energy waste, in line with the trend of green manufacturing.

3) Working Principle of Transmission Gear Shaft

Reduced friction losses through tooth optimisation (e.g. trimmed gears) increase the efficiency of power transmission.

4) Application of Transmission Gear Shaft

New energy vehicle drive systems, wind turbines and other energy-efficient areas.

Products Transmission Gear Shaft
Custom Made √
Gear Profile Type Gleason
Gear Teeth Manufacturing Gear Grinding
Gear Teeth Grinding √
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC
STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 　 18XГT 　 SMK22 　
20Cr2Ni4 　 20X2H4A 　 　 　
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 　 40XH2MA/
40XHMA		 4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420 　
