Custom Made OEM Gear Hobbing Worm Shaft and Worm Gear Set for High-Performance Applications
Custom Made OEM Gear Hobbing Worm Shaft and Worm Gear Set for High-Performance Applications
Custom Made OEM Gear Hobbing Worm Shaft and Worm Gear Set for High-Performance Applications
Custom Made OEM Gear Hobbing Worm Shaft and Worm Gear Set for High-Performance Applications
Specifications
Brand Name :
YIZGEAR
Model Number :
WG22080905
Place of Origin :
CHINA
MOQ :
1 Set
Price :
$350/Set
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
600 Sets/Month
Delivery Time :
58 Days
Packaging Details :
Plywood Crate
Material :
Aluminium Bronze
Profile Type :
Gear Hobbing
Outer Diameter :
697mm
Weight :
92Kg
Face width :
90
Module :
15
Description

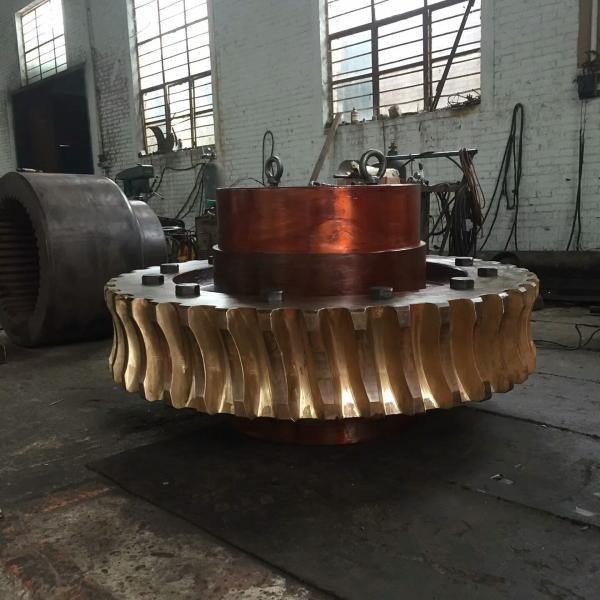

15 Module Custom Made ZCuAl10Fe3 Worm Gear Wheel and Worm Shaft Set

Types of Worm Gear and Worm Shaft

1) The first are non-throated worm drives.

These don't have a throat, or groove, machined around the circumference of either the worm or worm wheel.

2) The second are single-throated worm drives.

In which the worm wheel is throated.

3) The final type are double-throated worm drives, which have both gears throated.

This type of gearing can support the highest loading.

An enveloping (hourglass) worm has one or more teeth, and increases in diameter from its middle portion toward both ends.

Double-enveloping worm gearing comprises enveloping worms mated with fully enveloping worm wheels.

It is also known as globoidal worm gearing.

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Hobbing
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6 Grade/ AGMA 11Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment
