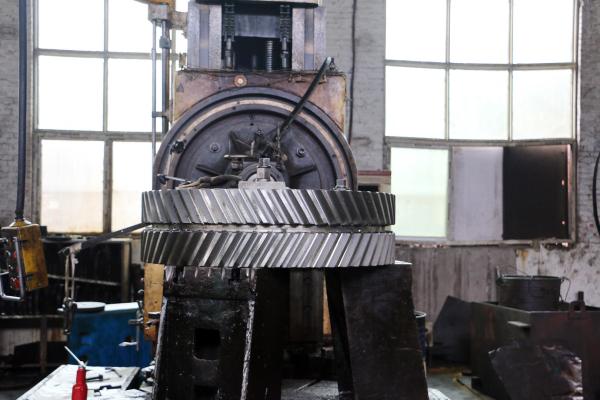

AISI 4340 Steel Cylindrical Gear Type Herringbone Gears Gear Milling
AISI 4340 Steel Cylindrical Gear Type Herringbone Gears Gear Milling
Specifications
Brand Name :
YIZGEAR
Model Number :
HB2207002
Place of Origin :
CHINA
MOQ :
1 Pc
Price :
$500/ Piece
Payment Terms :
L/C,T/T
Supply Ability :
300 Pcs/Month
Delivery Time :
72 Days
Packaging Details :
Plywood Crate
Profile Type :
Herringbone Gear
Material :
Forged Steel
Hardness :
230-260HB
Brand :
OEM
Module :
5-25 Module
Manufacture Processing :
Gear Milling
Description

AISI 4340 Steel Herringbone Gears & Herringbone Gear Shafts

1) Features of herringbone gear

Herringbone gear's dide threust of one half is balanced by that of of the other half. The herringbone gear

without axis thrust force.

2) Description of the herringbone gear

Herringbone is a special type of double helical gear, there is no central gap between the left-hand and

right-hand helcial gears.

3) Manufacturing process

Herringbone gear manufacture by gear milling machine or gear shaper.

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type C​ylindrical Gear
Manufacturing Process Gear Milling
Teeth Grinding Included
Module (M) 5-25
Number of Teeth (Z) Custom
Pressure Angle (α) 20°
Lead Angle Custom
Accuracy Grade ISO 8-9 Grade
Heat Treatment Quenching & Tempering
Surface Hardness 230-260 HB
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

AISI 4340 Steel Cylindrical Gear Type Herringbone Gears Gear Milling

Production Process

AISI 4340 Steel Cylindrical Gear Type Herringbone Gears Gear Milling
