Custom Rolling Mill Cylindrical Gear Type Herringbone Gears Without Central Gap
Custom Rolling Mill Cylindrical Gear Type Herringbone Gears Without Central Gap
Specifications
Brand Name :
YIZGEAR
Model Number :
HB2207001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
300
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
500 Pieces/Month
Delivery Time :
60 days
Packaging Details :
Plywood Crate
Material :
42CrMo/AISI 4140
Heat Treatment :
Quenching & Tempering
Manufacturing Process :
Gear Teeth Milling
Quality Grade :
ISO 8-9 Grade
Profile Type :
Herringbone Gear
Helical Angle :
22°
Description

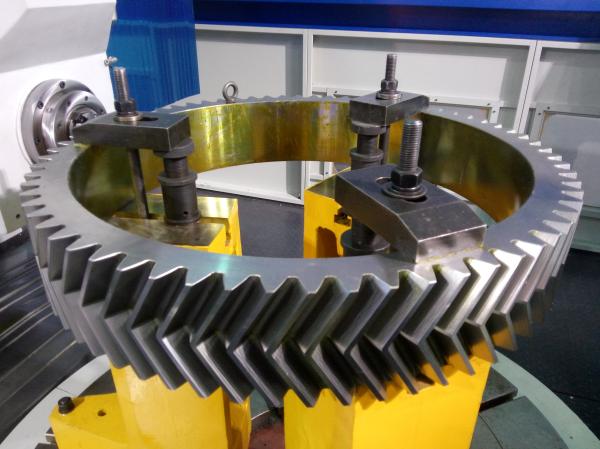

Custom Herringbone Gears Without Central Gap For Rolling Mill

1)Features of herringbone gear

  • Herringbone gears are more difficult to manufacture than equivalent spur or helcial gears.
  • Herringbone gear don't produce an additional axial load like helical gear.

2) Herringbone gear manufacture process

Herringbone gear manufactured by gear milling

3) Material of herringbone gears

42CrMo steel (AISI 4140) or 40CrNiMo (SAE 4320) are most used for herringbone gear.

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type C​ylindrical Gear
Manufacturing Process Gear Milling
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) 56
Pressure Angle (α) 20°
Lead Angle Custom
Accuracy Grade ISO 8-9 Grade
Heat Treatment Quenching & Tempering
Surface Hardness 230-260 HB
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

Custom Rolling Mill Cylindrical Gear Type Herringbone Gears Without Central Gap

Production Process

Custom Rolling Mill Cylindrical Gear Type Herringbone Gears Without Central Gap
