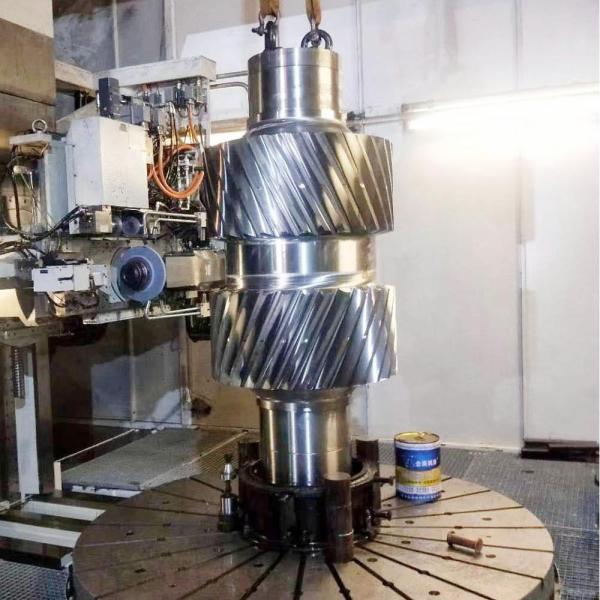

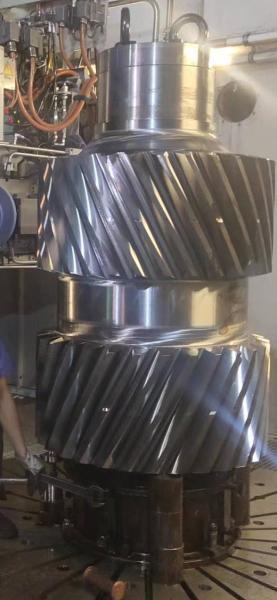

Customized 28 Module Double Helical Gear Shaft for Various Industrial Applications
Customized 28 Module Double Helical Gear Shaft for Various Industrial Applications
Customized 28 Module Double Helical Gear Shaft for Various Industrial Applications
Customized 28 Module Double Helical Gear Shaft for Various Industrial Applications
Specifications
Brand Name :
YIZGEAR
Model Number :
DB220804004
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
$1000/ Piece
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
100 Pieces/Month
Delivery Time :
75 Days
Packaging Details :
Plywood Crate
Module :
28
Gear Profile :
Double Helical Gear
Hardness :
260-300 HB
Manufacturing Process :
Gear Milling
Accuracy Grade :
ISO 6-7
Direction :
Left-Hand & Right Hand
Description

Customized 28 Module Double Helical Gear Shaft for Various Industrial Applications

1) Description of Double Helical Gear

Double helical gear is a special type of helical gear.

The teeth are twisted oblique to the gear axis and with both left hand and right hand helical teeth.

2) Features of Double Helical Gear

The double helical form balances the inherent thrust froces.

The gear set must have the same helix angle.

3) Applications of Double Helical Gear

Heavey duty industry need to remove the thrust froces.

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Cylindrical Gear
Manufacturing Process Gear Milling & Gear Teeth Hobbing
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) 97
Pressure Angle (α) 20°
Lead Angle 13°
Accuracy Grade ISO 8-9 Grade
Heat Treatment Quenching & Tempering
Surface Hardness 260-300HB
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
