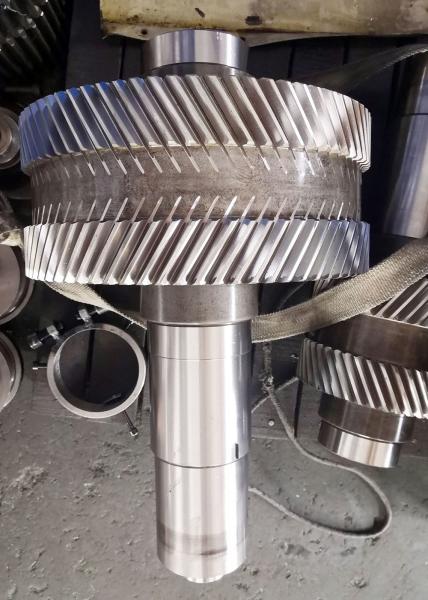

DIN 18CrNiMo7 Steel 4 Module 77T Double Helical Gears For Gearbox
DIN 18CrNiMo7 Steel 4 Module 77T Double Helical Gears For Gearbox
DIN 18CrNiMo7 Steel 4 Module 77T Double Helical Gears For Gearbox
DIN 18CrNiMo7 Steel 4 Module 77T Double Helical Gears For Gearbox
Specifications
Brand Name :
YIZGEAR
Model Number :
DB22082203
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
$600/ Piece
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
100 Pieces/Month
Delivery Time :
75 Days
Packaging Details :
Plywood Crate
Material :
DIN 18CrNiMo7
Helix angle :
31°
Hardness :
58-62 HRC
Normal Module :
4
Transverse Module :
4.6667
Face Width :
50
Description

DIN 18CrNiMo7 Steel 4 Module 77T Double Helical Gears For Gearbox

1) Description of Double Helix Gears

A double helical gear consists of two helix angles with opposite hands. Inside the gears, the axial thrusts oppose each other

and the resulting forces are not transmitted to the bearings on the shaft. This gearpair setup means they can handle high loads

and allow for a solid transmission while running.

2) Features of Double Helix Gears

Double helical gears have all of the advantages of helical gears, which are strong and quiet, plus have the advantage of being able to

cancel the thrust forces by combining helical gears with both right and left hand twists.

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Cylindrical Gear
Manufacturing Process Gear Milling & Gear Teeth Hobbing
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) 53
Pressure Angle (α) 20°
Lead Angle 31°
Accuracy Grade ISO 8-9 Grade
Heat Treatment Quenching & Tempering
Surface Hardness 260-300HB
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

DIN 18CrNiMo7 Steel 4 Module 77T Double Helical Gears For Gearbox

Manufacturing Process

DIN 18CrNiMo7 Steel 4 Module 77T Double Helical Gears For Gearbox
