Specifications
Payment Terms :
L/C,T/T
Model :
1000
Supply Ability :
500 PCS/Month
Name :
Universal Gripper
Model Number :
1000
Applicable Wire Diameter :
2.5-32mm
Packaging Details :
Plywood Case
MOQ :
1 PCS
Delivery Time :
3-7days
Price :
Negotiable
Rated Load :
10-30KN
Brand Name :
Suntech
Certification :
ISO
Place of Origin :
Ningbo
Description

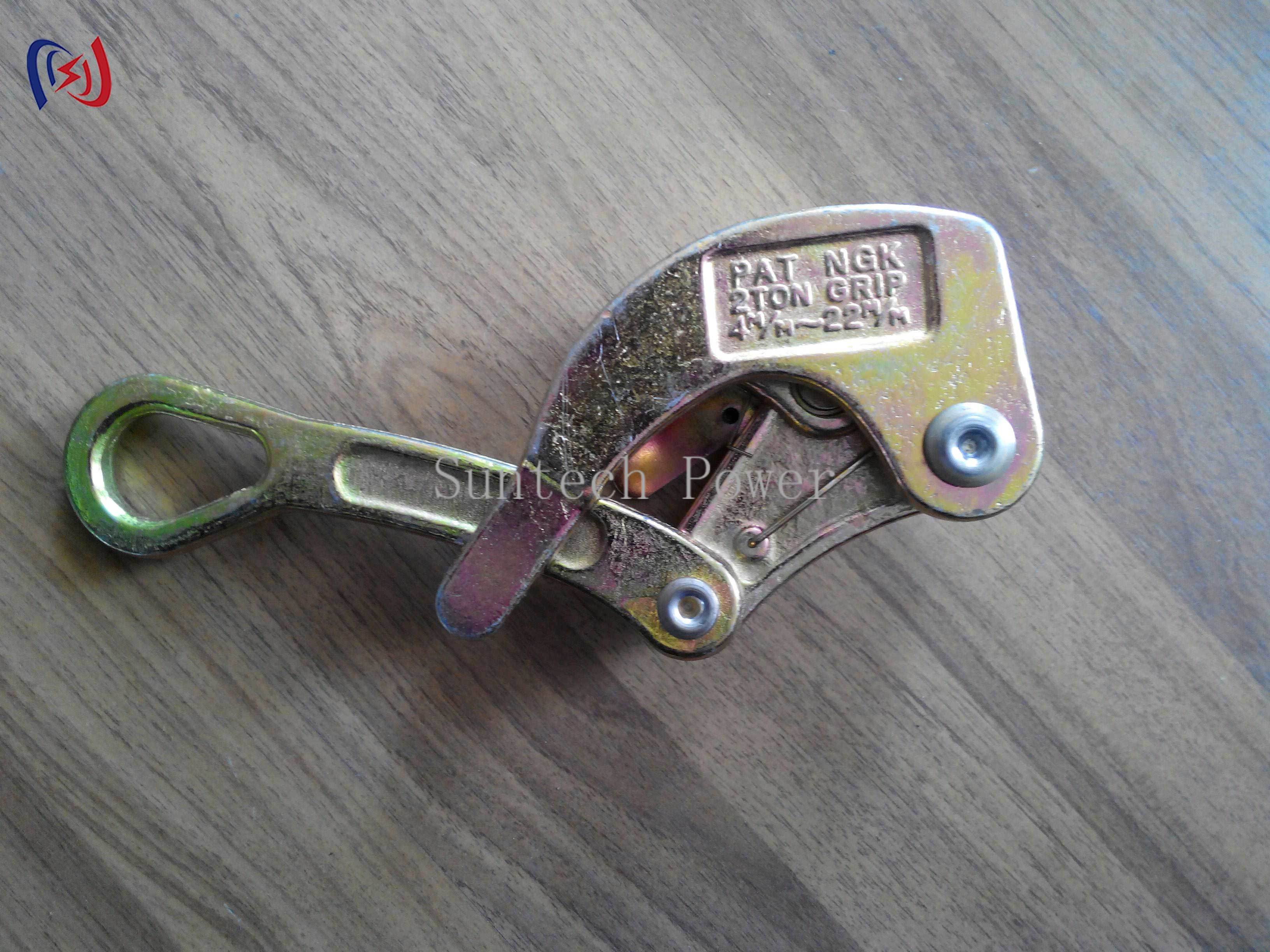

Universal Rope Come Along Clamp for 4-32mm Wire Rope Pulling


Product Overview

Rope work on a job site rarely sticks to one size, which is why the universal come-along is built to handle wire rope from 4mm up to 32mm in a single family of three models. Each body is forged from alloy steel and heat treated so the serrated teeth bite deeply and hold fast, while the anti-tension rack keeps the rope locked even at the rated 10-30KN pull. At 1.3-2.8kg per unit, crews can keep one on hand for hauling, tensioning, hoisting and anchoring jobs without breaking stride.

Technical Specifications

Item No.

Model

Rated Load (KN)

Applicable Wire Dia. (mm)

Weight (kg)

13310

1000

10

4-14

1.3

13311

2000

20

7-20

1.6

13312

3000

30

16-32

2.8

Applications

· Tensioning and hauling steel wire rope

· Pulling conductors and cables during stringing

· Hoisting, rigging and sling work

· Holding temporary anchors on construction sites

Product Advantages

· Forged Body with Heat Treated Teeth — Alloy steel forging plus heat treatment gives the body high hardness and strength, so the rack resists wear and bending during heavy pulls.

· Rack That Holds Under Pull — The anti-tension rack offers strong occlusal force that locks the rope in place and stops it sliding even at full rated load.

· 4-32mm Family Coverage — Three models span rope diameters of 4-14mm, 7-20mm and 16-32mm, so most common rope sizes need just one product line.

· Light Enough to Keep on Hand — Weighing only 1.3-2.8kg, the clamp is convenient to carry and quick to position during pulling, hoisting and rigging operations.
