Product Description

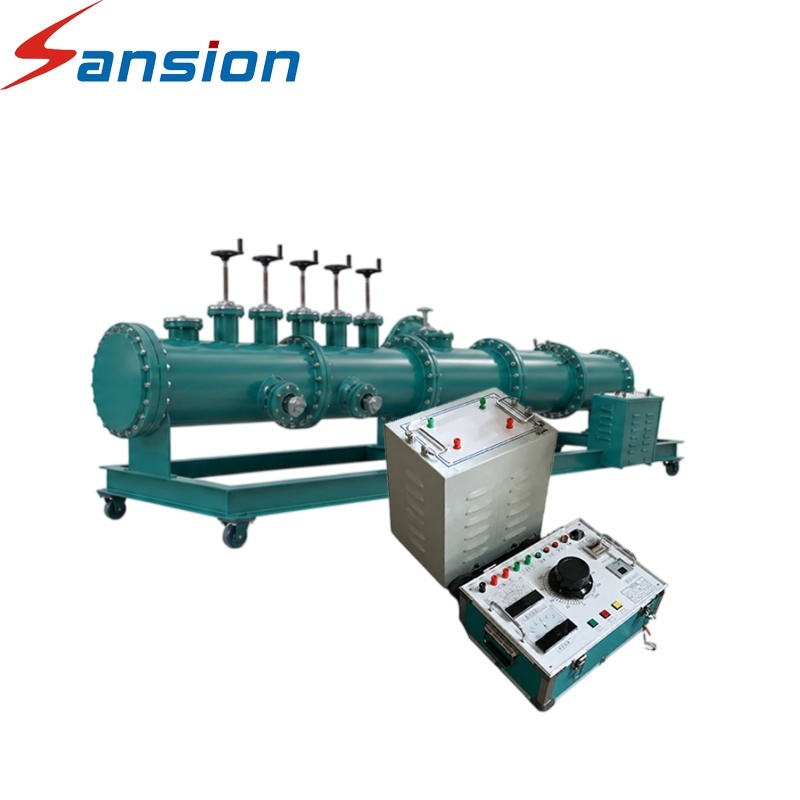

SXGTU GIS Partial Discharge AC Withstand Test System

The SXGTU GIS Partial Discharge AC Withstand Test System is designed for high voltage insulation and withstand testing. The equipment adopts a fully sealed high voltage structure within a shielded space, ensuring safe and reliable operation during testing.

The system covers voltage levels from 100 kV to 1000 kV and capacity levels from 50 kVA to 2000 kVA. The overall partial discharge can be controlled within 1–3 pC at rated voltage under normal environmental conditions. High voltage generation methods include high voltage transformer boosting and series resonance, with power-frequency and variable-frequency operation available. The system uses single-stage voltage boosting and provides convenient connection with the test object.

Product Parameters

Product Advantages

1. Wide voltage range supports different high voltage testing requirements.
2. Fully sealed and shielded structure improves testing safety.
3. Single-stage boosting simplifies the high voltage test configuration.
4. Convenient connection design improves testing efficiency.

Application Scenarios

• GIS insulation testing
• GIS withstand testing
• High voltage equipment testing
• Partial discharge testing
• Electrical test laboratories

FAQ

Q1: What voltage levels are available?
A1: The available voltage levels include 100 kV, 200 kV, 250 kV, 300 kV, 500 kV, 800 kV and 1000 kV.

Q2: What capacity range is available?
A2: The capacity range is 50–2000 kVA.

Q3: What is the partial discharge value?
A3: The partial discharge can be controlled within 1–3 pC at rated voltage.

Q4: What is the temperature rise requirement?
A4: The temperature rise is not more than 65 K when operating at rated current for 60 minutes at 50 Hz.
