Product Description

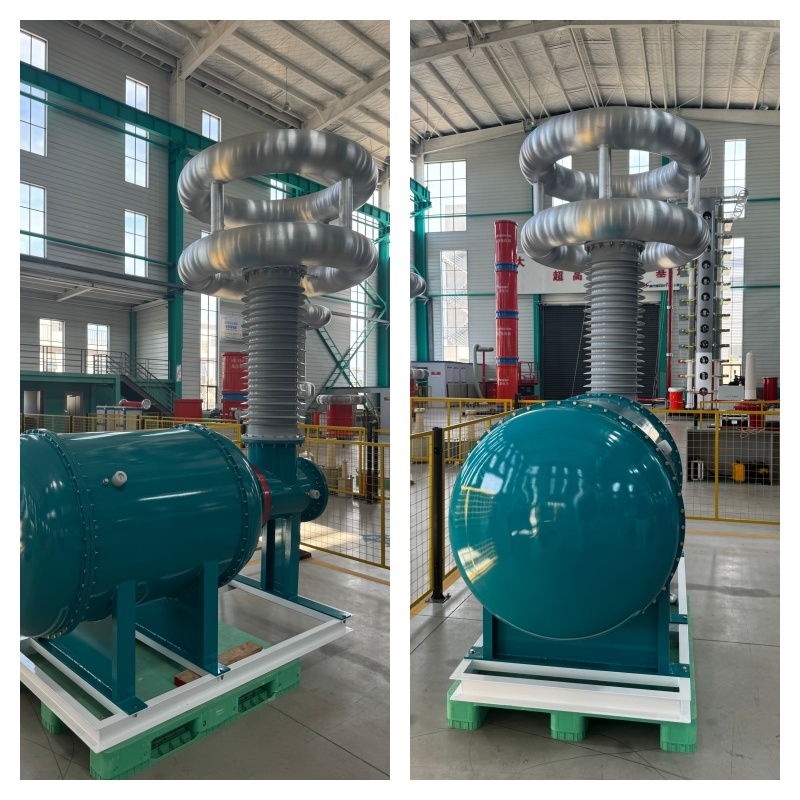

SXGTU AC Hipot Test System

This test system is designed for power frequency AC withstand voltage and partial discharge testing of GIS and high voltage electrical equipment. It is suitable for post insulators, wall bushings, current transformers, voltage transformers, circuit breakers, disconnectors, safety tools and insulating materials.

The system combines high voltage insulation testing with partial discharge measurement to support equipment quality inspection and electrical performance evaluation. It can also be used for waveform distortion measurement and measurement accuracy verification, providing a practical testing solution for manufacturers and high voltage laboratories.

Product Parameters

Product Advantages

1. The integrated system supports both withstand voltage and partial discharge testing.
2. It is suitable for a wide range of GIS and high voltage electrical equipment.
3. High sensitivity PD measurement helps evaluate insulation performance more effectively.
4. Multiple measurement functions support factory inspection and laboratory testing.

Application Scenarios

1. GIS manufacturing and inspection
2. High voltage equipment factories
3. Electrical testing laboratories
4. Substation equipment testing
5. Insulation performance evaluation
6. Power equipment quality control

FAQ

Q1: What equipment can be tested with this system?
A1: It can be used for GIS, bushings, CTs, VTs, circuit breakers, disconnectors, post insulators and other applicable insulation products.

Q2: What are the main testing functions?
A2: The main functions include power frequency AC withstand testing and partial discharge measurement.

Q3: Can the system be used for factory inspection?
A3: Yes. It is suitable for production testing, quality inspection and laboratory applications.

Q4: Can the configuration be customized?
A4: The system configuration can be designed according to the customer's test object and required voltage level.
