Transformer Lightning Impulse Test System High Precision Impulse Voltage Generator with Automatic Measurement, Waveform Comparison and Pass Fail Analysis
Transformer Lightning Impulse Test System High Precision Impulse Voltage Generator with Automatic Measurement, Waveform Comparison and Pass Fail Analysis
Transformer Lightning Impulse Test System High Precision Impulse Voltage Generator with Automatic Measurement, Waveform Comparison and Pass Fail Analysis
Transformer Lightning Impulse Test System High Precision Impulse Voltage Generator with Automatic Measurement, Waveform Comparison and Pass Fail Analysis
Transformer Lightning Impulse Test System High Precision Impulse Voltage Generator with Automatic Measurement, Waveform Comparison and Pass Fail Analysis
Transformer Lightning Impulse Test System High Precision Impulse Voltage Generator with Automatic Measurement, Waveform Comparison and Pass Fail Analysis
Specifications
Total Impulse Capacitance :
0.0278~0.5 μF
Model Number :
SXCY
Energy Range :
7.31 ~ 320 kJ
MOQ :
1 Set
Impulse Capacitance :
0.0278~0.5 μF
Brand Name :
Sansion
Delivery Time :
30 Working Days
Voltage Range :
±100kV ~ ±4800kV
Payment Terms :
T/T,L/C
Packaging Details :
Plywood Case
Stage Voltage :
±100 ~ ±200 kV
Certification :
CE/SGS/EMS/ISO 9001
Number of Stages :
1 to 24 Stages
Place of Origin :
China
Description

Product Description

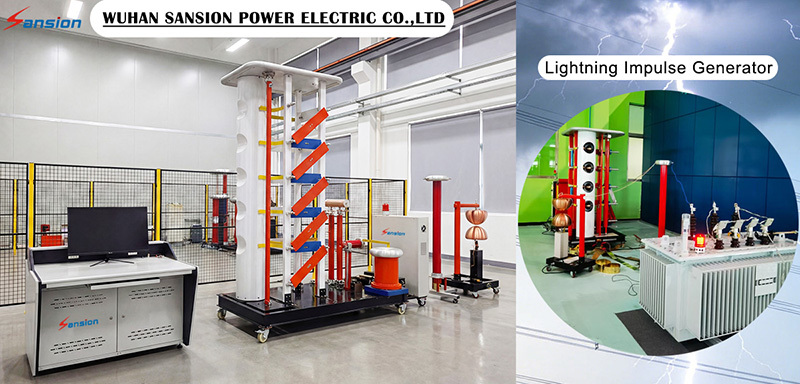

The Transformer Lightning Impulse Test System is developed for accurate transformer impulse testing and detailed waveform evaluation.

The system combines a high-voltage impulse generator with a digital impulse measurement and analysis platform.

During testing, the waveform can be displayed and recorded in real time. Key waveform parameters can be automatically calculated, and multiple impulse records can be compared to help engineers identify waveform differences.

Advanced Measurement Functions

  • Peak voltage measurement
  • Wavefront time calculation
  • Time-to-half-value calculation
  • Waveform recording
  • Waveform overlay comparison
  • Reference waveform comparison
  • Local waveform zoom
  • Waveform translation
  • Data storage
  • Historical test review
  • Test report generation

Marketing Advantages

  • High measurement accuracy
  • Real-time waveform analysis
  • Automated test records
  • Easy waveform comparison
  • Faster report generation
  • Suitable for transformer factory testing
  • Improved test traceability

FAQ

Q: Can the system compare multiple waveforms?

A: Yes. Digital impulse measurement software can support waveform comparison and overlay functions.

Q: Can the test result be automatically evaluated?

A: Pass/fail evaluation can be configured according to the defined test procedure and acceptance criteria.

Q: Can the waveform data be saved permanently?

A: Yes. Test waveforms and related parameters can be stored in the system database or exported according to the software configuration.
