3000A High Current Temperature Rise Test Equipment Three Phase For Transformer Testing
3000A High Current Temperature Rise Test Equipment Three Phase For Transformer Testing
3000A High Current Temperature Rise Test Equipment Three Phase For Transformer Testing
3000A High Current Temperature Rise Test Equipment Three Phase For Transformer Testing
3000A High Current Temperature Rise Test Equipment Three Phase For Transformer Testing
3000A High Current Temperature Rise Test Equipment Three Phase For Transformer Testing
Specifications
Model Number :
DDG
Name :
Temperature Rise Test Equipment
MOQ :
1
Current Booster Output :
0.5-15 KA
Voltage Output :
220-400V
Certification :
CE/SGS/EMS/ISO 9001
Rated Capacity :
3-90 KVA
Place of Origin :
China
Current Booster Input :
3-90 A
Delivery Time :
30 Working Days
No-load Current :
＜6%
Packaging Details :
Plywood Case
Structure Type :
Cabinet / Bench / Separate Type
Brand Name :
Sansion Power
Output Current :
3000A Three Phase High Current Output
Payment Terms :
L/C,T/T,Western Union
Impedance Voltage :
＜8%
Description

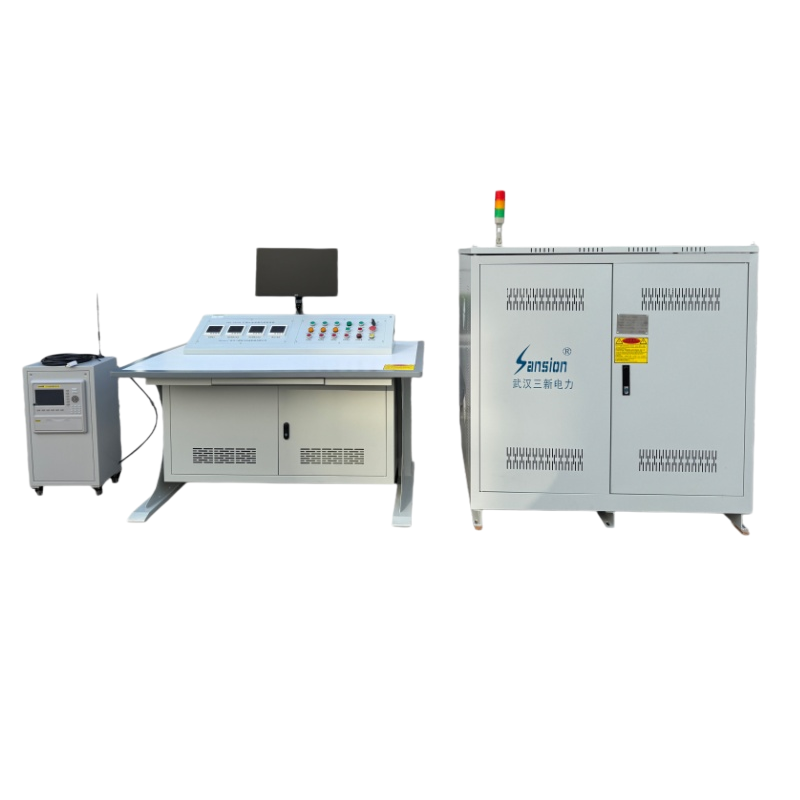

3000A Three-Phase High Current Temperature Rise Test System For Transformer Testing
Product Description

Temperature Rise Test System

The 3000A Three Phase High Current Temperature Rise Test System is designed for thermal performance testing of transformers, switchgear, busbars, and other electrical equipment. It provides stable high current output to simulate actual operating conditions and evaluate temperature rise characteristics during long-term operation.

The system integrates a current booster, voltage regulator, temperature acquisition unit, and intelligent control software. It supports automatic current adjustment, real-time temperature monitoring, and test data recording, providing accurate and reliable solutions for transformer manufacturers, testing laboratories, and electrical equipment factories.

Important Product Parameters
Model Rated Capacity(KVA) Current Booster Rated Input Current Booster Rated Output Impedance Voltage % No-load Current % Structure Type
Voltage Regulator Current Booster Current(A) Voltage (V) Current(KA) Voltage (V)
DDG-3/500 3 3 13.6 220 0.5 6 ＜8 ＜6 Cabinet Type
DDG-6/1000 6 6 27.00 220 1 6 ＜8 ＜6 Cabinet / Bench Type
DDG-9/1500A 9 9 40.00 220 1.5 6 ＜8 ＜6 Separate Type
DDG-12/2000 12 12 54.50 220 2 6 ＜8 ＜6 Separate Type
DDG-18/3000 18 18 45.00 400 3 6 ＜8 ＜6 Separate Type
DDG-30/5000 30 30 75.00 400 5 6 ＜8 ＜6 Separate Type
DDG-60/10000 60 60 150.00 400 10 6 ＜8 ＜6 Separate Type
DDG-90/15000 90 90 225.00 400 15 6 ＜8 ＜6 Separate Type
Product Applications

This system is widely used for power transformer and distribution transformer heat run tests to verify thermal performance, cooling capability, and operating reliability under rated load conditions.

It is suitable for switchgear, busbar, circuit breaker, and other current-carrying equipment manufacturers to perform temperature rise verification before product delivery.

Product Advantages
Stable High Current Output

Provides 3000A three-phase current output with excellent stability, ensuring accurate and repeatable temperature rise test results.

Intelligent Test Control

Equipped with automatic control technology for current regulation, temperature monitoring, and real-time data recording.

Customized Testing Solution

Supports customized design based on different current levels, test objects, laboratory conditions, and customer requirements.

Safety and Reliability

Includes protection functions such as overcurrent protection, overheating protection, and emergency shutdown for safe operation.

FAQ
Q1: What is a temperature rise test system used for?

It is used to evaluate thermal performance of transformers and electrical equipment under rated current conditions.

Q2: Can the output current be customized?

Yes, the current capacity can be customized according to different testing requirements.

Q3: Does it support automatic temperature measurement?

Yes, it supports multi-channel temperature acquisition and automatic test data recording.

Q4: Which equipment can be tested?

It can test transformers, switchgear, busbars, circuit breakers, and other electrical products.

Q5: Can you provide complete testing solutions?

Yes, customized high current testing solutions and laboratory integration services are available.
