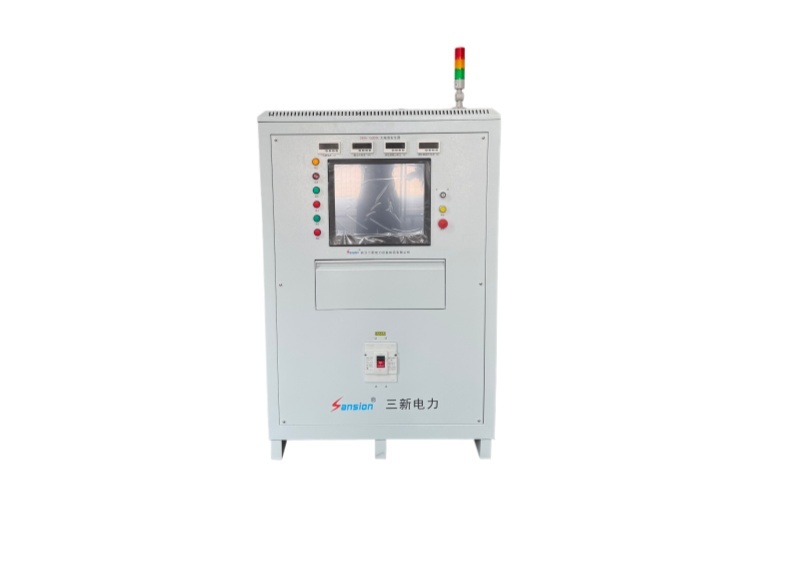

15000A High Current Output Temperature Rise Test System For Switchgear Testing
15000A High Current Output Temperature Rise Test System For Switchgear Testing
15000A High Current Output Temperature Rise Test System For Switchgear Testing
15000A High Current Output Temperature Rise Test System For Switchgear Testing
15000A High Current Output Temperature Rise Test System For Switchgear Testing
15000A High Current Output Temperature Rise Test System For Switchgear Testing
Specifications
Model Number :
SXWA
Maximum Output Current :
15000A
MOQ :
1
Measurement System :
Multi-channel temperature monitoring
Test Objects :
Switchgear, busbar, cable, circuit breaker, transformer
Certification :
CE/SGS/EMS/ISO 9001
Current Generator Type :
High Current Generator
Place of Origin :
China
Current Output Mode :
Stable AC high current injection
Delivery Time :
30 Working Days
Cooling Design :
Optimized cooling structure
Payment Terms :
L/C,T/T,Western Union
Control Method :
Digital automatic control system
Packaging Details :
Plywood Case
Testing Function :
Temperature rise and thermal performance testing
Brand Name :
Sansion Power
Name :
Temperature Rise Test System
Description

15000A High Current Output Temperature Rise Test System For Switchgear Testing

1. Product Description

SXWA Temperature Rise Test System with 15000A High Current Generator

The Temperature Rise Test System with 15000A High Current Generator is a professional thermal performance testing solution designed to evaluate temperature characteristics of electrical equipment under high current operating conditions. The system provides a stable high current output source for accurate temperature rise testing of switchgear, busbars, cables, circuit breakers, transformers and other power components.

Equipped with a high capacity 15000A current generation system, this high current testing equipment can simulate real operating conditions and provide continuous current injection for long-duration thermal tests. The advanced current output technology ensures stable performance, low impedance operation and reliable testing results.

The Temperature Rise Test System integrates high current generation, multi-channel temperature measurement and intelligent control functions. Engineers can monitor temperature changes, analyze heat distribution and verify whether electrical products meet thermal design requirements.

With a compact structure, efficient cooling design and flexible configuration, the system is widely used in electrical equipment factories, power laboratories and research institutions. Customized solutions can be provided according to different current levels, test objects and laboratory conditions.

2. Product Important Parameters
Parameter Specification
Product Name Temperature Rise Test System
Current Generator Type High Current Generator
Maximum Output Current 15000A
Testing Function Temperature rise and thermal performance testing
Test Objects Switchgear, busbar, cable, circuit breaker, transformer and electrical components
Current Output Mode Stable AC high current injection
Measurement System Multi-channel temperature monitoring and data acquisition
Control Method Digital automatic control system
Cooling Design Optimized cooling structure for continuous operation
3. Product Applications

The 15000A High Current Generator is mainly applied in temperature rise testing laboratories, electrical equipment manufacturing plants, power utilities and research institutes.

It is suitable for verifying the thermal performance of medium and high voltage switchgear, power distribution equipment, conductive components, cable connections and electrical contact systems. By applying high current through the tested equipment, the system helps engineers evaluate temperature distribution, heat dissipation performance and long-term operational reliability.

4. Product Advantages
High Current Output Capability

Equipped with a 15000A high current generator, the system provides powerful and stable current injection for demanding thermal tests.

Accurate Temperature Analysis

Supports multi-point temperature measurement to capture temperature variations during testing.

Reliable Continuous Operation

Optimized electrical structure and cooling technology ensure stable performance during long-duration tests.

Intelligent Control System

Digital operation interface simplifies testing procedures and improves efficiency.

Flexible Testing Solution

The system can be customized according to different current requirements and application environments.

5. FAQ
Q1: What is the purpose of a Temperature Rise Test System?

A: It is used to evaluate the temperature performance and thermal reliability of electrical equipment under rated current conditions.

Q2: Why is a 15000A High Current Generator required for temperature rise testing?

A: High current output is necessary to simulate actual operating conditions of power equipment and accurately measure heat generation.

Q3: Which products can be tested with this system?

A: It can test switchgear, busbars, cables, circuit breakers, transformers and other electrical components.

Q4: How does the system measure temperature rise?

A: The system uses multiple temperature sensors to monitor different test points and record temperature changes.

Q5: Can the high current output be customized?

A: Yes, current capacity and system configuration can be customized according to customer requirements.

Q6: Is this equipment suitable for factory acceptance testing?

A: Yes, it is widely used for quality inspection and thermal performance verification in electrical equipment factories.

Q7: What are the advantages of using a high current test system?

A: It provides accurate thermal evaluation, improves product reliability and helps prevent overheating problems.

Q8: Can Sansion Power provide complete testing solutions?

A: Yes, Sansion Power provides customized high current testing solutions, technical support and professional service.
