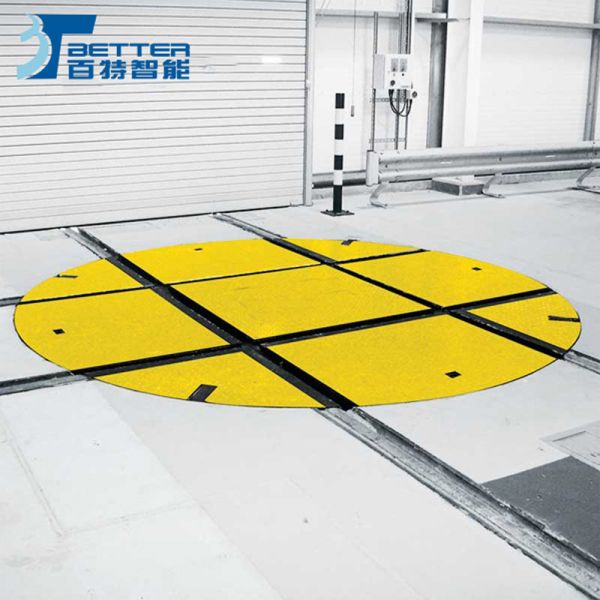

A heavy-duty electric rotary platform specially designed for industrial material conveying lines, with a rated load capacity of 30 tons, supports 360° continuous rotation or precise positioning at any angle. It is used for the automatic direction change, diversion or convergence of materials on the production line, and is a core equipment for enhancing the flexibility and space utilization efficiency of the conveying system.

Core configuration

• Load-bearing capacity: Rated 30 tons (customizable from 1 to 1500 tons)
• Rotation angle: 360° continuous rotation / precise positioning at any angle
• Drive method: Servo motor / Reduction gear motor drive
• Rotation accuracy: ≤ ±0.5°
• Control method: PLC control, supports I/O or bus communication
• Table surface size: Customizable as per requirement (diameter 1500 - 6000mm)

Core Function

• Automatic direction change and diversion: At the production line nodes, the direction of the materials is automatically changed to achieve intelligent multi-station and multi-path transportation.
• High-precision positioning: Servo drive + swivel bearing, precise stopping angle, smooth material transfer
• Seamless connection: Capable of integrating power rollers, chain plates, and belts, and smoothly connecting with upstream and downstream conveying lines.
• Quick response: Quick start and stop, meeting the demands of high-speed production.

Safety configuration

• Rotating area safety light curtain / laser scanner
• Overload protection, limit switch, emergency stop button
• Anti-slip design, with audible and visual operation prompts

Customization function

• Table surface size and load capacity can be customized as per requirements.
• Integrated weighing and anti-static treatment
• Special versions with features such as explosion-proof and high-temperature resistance

The material handling vehicle can be designed to travel on steel rail bars or they can be operated directly on the floor of your facility

• 1Ton to 300 Ton capacity range
• Push and Pull operation or completely motorized
• Full steer-ability or controlled direction of motion
• Custom shaped table size to suit your application
• Lifting fixtures available for simple transportation
• Fully automated controls, wireless control system, or a fixed pendant

BETTER conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!

Henan BETTER Handling Equipment Co., Ltd. is specializing in the Design and Manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items. We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can prepare them to be used in rails, with autonomous batteries or for special applications.

1.What Product Handling Applications Use Transfer Carts?

1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)

2. What Are The Advantages of Using a Transfer Cart?

• For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use.
• Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways.
• For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads.
• Transfer carts are compact in design and work well in areas with limited floor area.
• Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.

3. How can Transfer Carts be customized?

Please tell us:

• What load or product will be transferred onto the cart?
• What is the weight of the heaviest lift or load?
• What are the dimensions? (Length; Width ; Height)
• What is the trip time and frequency? (# of Trips per , Shifts per day:)
• What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
• What is the distance to travel?
• Other relevant information or using condition.
