Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
Specifications
Brand Name :
BETTER
Model Number :
BDG
Place of Origin :
Xinxiang
MOQ :
1 Piece
Price :
US$3000-3500
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Delivery Time :
15-20 days
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Product Name :
Battery-Power Transfer Cart
Usage :
Heavy Duty Material Transportation
Load Capacity :
1-300ton
Special Function :
Anti-Explosion,Heat-Resistant,Lifting,Customized
Material :
Steel
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Specification :
2000*2000*500
Trademark :
BETTER
Origin :
Xinxiang
HS Code :
84289090
Production Capacity :
50 Sets/Month
Table Size :
2000*2000*500
Wheel Diameter :
270-600mm
Running Speed :
0-25m/min
Motor Power :
0.8-15kw
Wheel Quantity :
4-8
Description

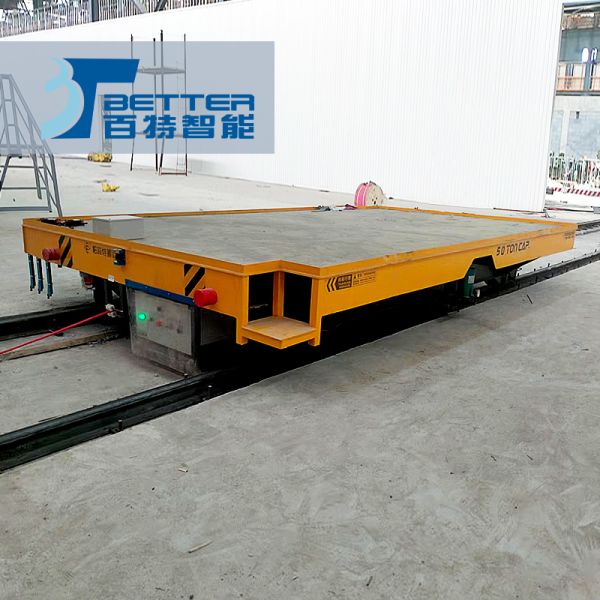

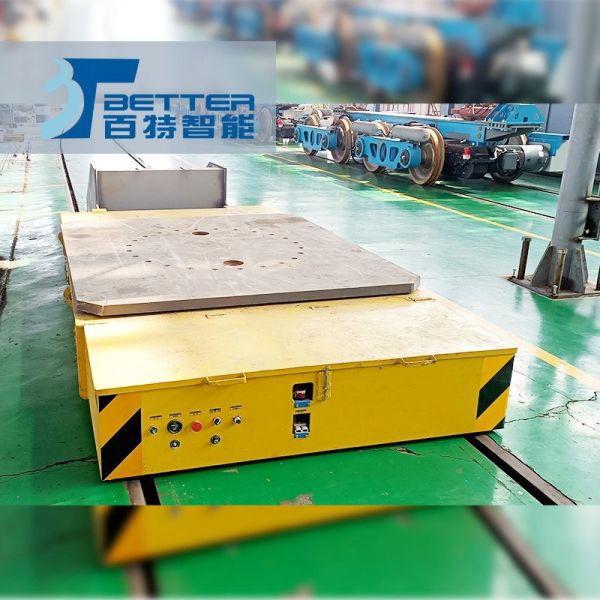

Cross Rail Transfer Cart With Built-In Battery And Electrical Control System
Battery powered rail transfer cart is powered by an internal battery system. The power supply provides power to DC traction motors through an electrical control system to control start, stop, advance, retreat, and speed control of the flat cart. This industrial rail electric transport cart features simple structure, convenient use, large carrying capacity, easy maintenance, and long service life. Its convenience, economy, practicality, and easy cleaning make it the preferred transport solution for moving heavy objects along fixed routes.
Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
Detailed Photos
Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
Product Parameters
Model BDG-2t BDG-5t BDG-10t BDG-16t BDG-20t BDG-25t BDG-30t BDG-40t BDG-50t BDG-63t BDG-80t BDG-100t BDG-150t
Rated Load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size (mm) Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) 270 270 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 0.8 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Transformer Power(KVA) 3 3 5 6.8 6.8 6.8 10 10 10 20 20 30 30
Transformer Quantity 1 1 1 1 1 1 1 1 1 1 1 1 1
Running Distance(m) 70 70 70 70 70 70 70 60 50 50 50 50 50
Max Wheel Load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100
Application
Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
Frequently Asked Questions
What Product Handling Applications Use Transfer Carts?
  • Coils (V-Groove deck)
  • Tanks (size/stability for uniformly distributed loads)
  • Assemblies (fixture cradle) for complete builds or partially completed products
  • Sub-Assembly shuttle from one line to another line
  • Maintenance cart for motors and pumps
  • Equipment support for navigating loads within plant facilities
  • Material shuttle for steel tubing (flat decking with guard rails)
  • Elevating platform for assembly process (integrated screw-jack table)
  • Sand casting (flat decking)
How can Transfer Carts be customized?
Please provide the following information for customization:
  • What load or product will be transferred onto the cart?
  • What is the weight of the heaviest lift or load?
  • What are the dimensions? (Length; Width; Height)
  • What is the trip time and frequency? (# of Trips per shift, Shifts per day)
  • What is the travel area? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
  • What is the distance to travel?
  • Other relevant information or using conditions
Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
Our Advantages
  • Low noise - Causes low noise level operation
  • Maximum safety - Offers guarantee of maximum safety for operators and materials handled
  • Easy for operation - These vehicles are easy to drive and operate
  • Easy to implement into manufacturing process - Operates on standard floors without complex installation
  • Suitable for All Kinds of Weight - Modular fabrication handles both small and extremely huge loads up to 300 tons
Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
Packaging & Shipping
  • For length less than 6m and width less than 2.2m: Transported by 20ft container
  • For length between 5.9m and 12m: Transported by 40ft container
  • Multiple sets (2-3) can be transported by full container
  • Single sets can be transported by LCL Container
  • For width beyond 2.2m: Requires flat rack transport (20 or 40 ft)
  • Oversized equipment beyond above dimensions requires bulk cargo transport
Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
Certifications
Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation Battery-Powered Rail Transfer Cart with 300-ton Load Capacity, Built-In Battery, and Speed Adjustment for Heavy Duty Material Transportation
