Specifications
MOQ :
1 Piece
Price :
US$3000-3500
Place of Origin :
Xinxiang
Brand Name :
BETTER
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time :
15-30 days
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Model Number :
BWT
Product Name :
Battery-Power Transfer Cart
Usage :
Heavy Duty Material Transportation
Load Capacity :
1-300ton
Special Function :
Explosion, Heat-Resistant, Lifting, Customized
Material :
Steel
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Specification :
2000*2000*500
Trademark :
BETTER
Origin :
Xinxiang
HS Code :
84289090
Production Capacity :
50 Sets/Month
Description

Workshop Use Rail Transport Automatic Rotating Transfer Cart Turntable
Product Description

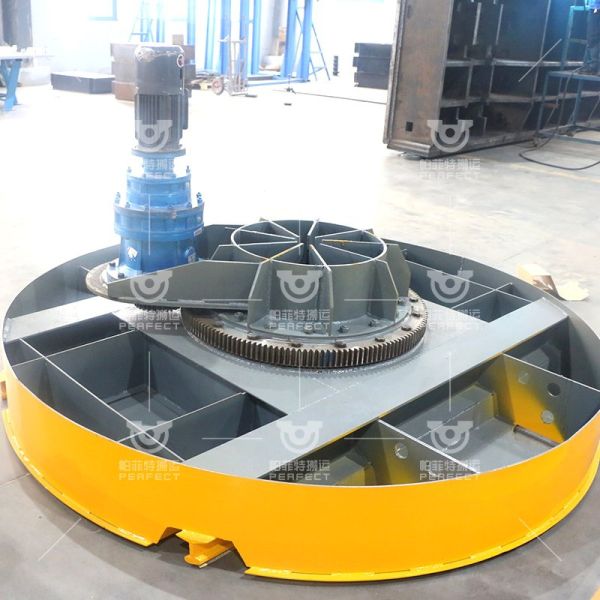

Introduction of Self-Propelled Industrial Turntable

The motorised turntable is designed for cross rails to turn with 90 degree in warehouse and plants. Its working principle is that there are also rails installed on the turntable, when the rail transfer cart runs on the turntable, the turntable can be rotated automatically or manually until precisely connecting with the destination rail, then the transfer cart runs on the vertical rail. The turntable is suitable for many occasions, such as ring rails, vertical rails, and crossing rails etc. The turntable system run steadily and has features as high rail jointing accuracy and can meet full automatic electrical operation.

Application

Application of Self-Propelled Industrial Turntable

BETTER conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!
Product Parameters

Parameter of Self-Propelled Industrial Turntable

Model BWT-2T BWT-5T BWT-10T BWT-15T BWT-20T BWT-30T BWT-45T BWT-60T
Rated Load(T) 2 5 10 15 20 30 45 60
Table Size(mm) 2000*1500 2500*1500 3000*2000 3200*2000 4000*2000 5000*2200 6000*2400 6000*2500
Height of Trailer (mm) 500 600 700 750 750 800 850 950
Wheel Quantity 4 4 8 8 8 12 12 12
Tire Specification 254*102 305*165 559*254 559*356 22*9-10 22*9-10 22*10-16 22*14-16
Tire Material Polyurethane Solid Wheel, Press-on Solid Tire
Frame Material Q235 Q235 Q235 Q235 Q235 Q345 Q345 Q345
Color Customized
Speed(km/h) 0-20 0-20 0-20 0-20 0-15 0-15 0-15 0-10

Company and Customers' Visit
Henan BETTER Handling Equipment Co., Ltd. is specializing in the Design and Manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items. We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can prepare them to be used in rails, with autonomous batteries or for special applications.

Other products we offer

Customization of Electric Turntable
The material handling vehicle can be designed to travel on steel rail bars or they can be operated directly on the floor of your facility
1Ton to 300 Ton capacity range
Push and Pull operation or completely motorized
Full steer-ability or controlled direction of motion
Custom shaped table size to suit your application
Lifting fixtures available for simple transportation
Fully automated controls, wireless control system, or a fixed pendant

Q&A
*What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
*What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
*How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
