Specifications
MOQ :
1 Piece
Price :
US$3000-3500
Place of Origin :
Xinxiang
Brand Name :
BETTER
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time :
15-30 days
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Model Number :
BXC
Product Name :
Battery-Power Transfer Cart
Usage :
Heavy Duty Material Transportation
Load Capacity :
1-300ton
Special Function :
Explosion, Heat-Resistant, Lifting, Customized
Material :
Steel
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Specification :
2000*2000*500
Trademark :
BETTER
Origin :
Xinxiang
HS Code :
84289090
Production Capacity :
50 Sets/Month
Description
Radio Control Electric Motorized Turntable Transfer Cart Manufacturing
Product Description

1. The introduction

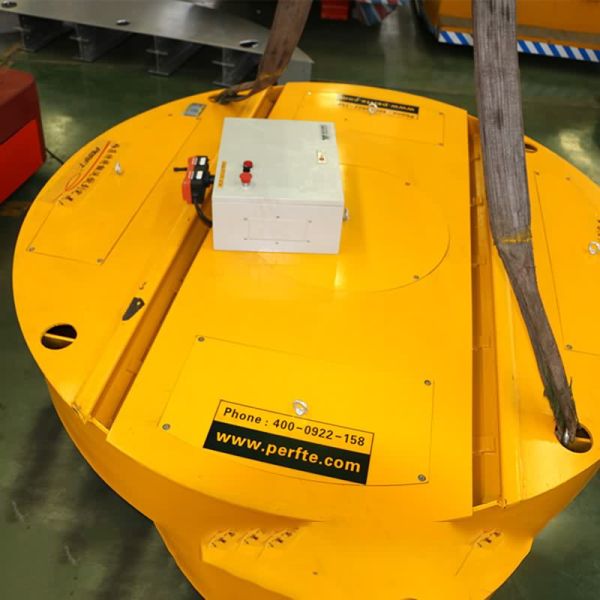

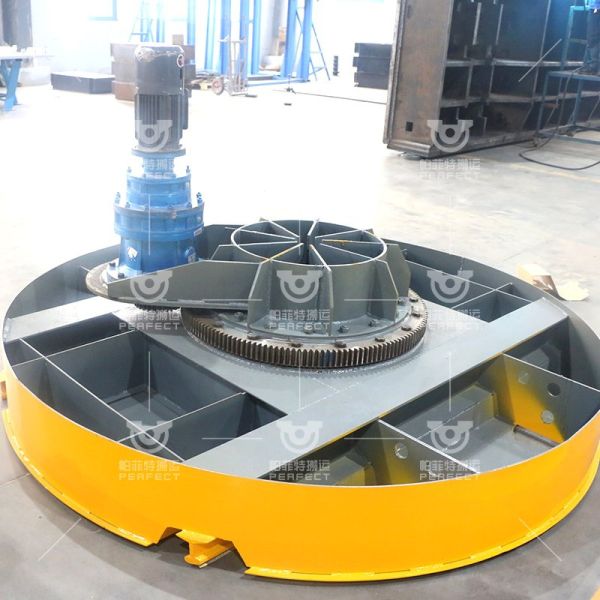

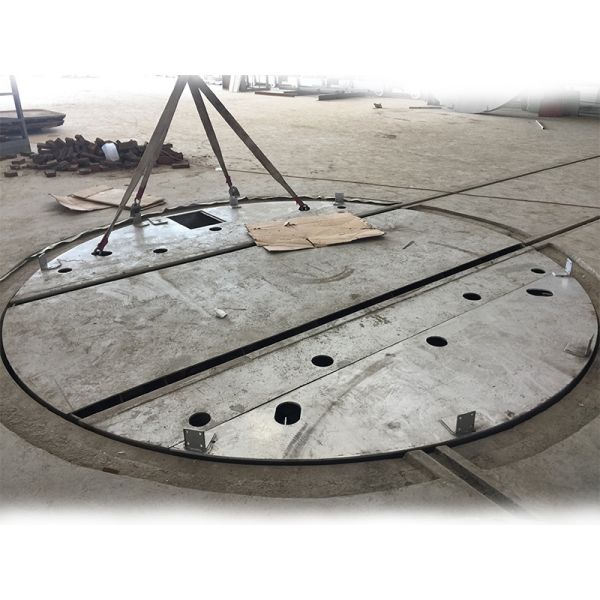

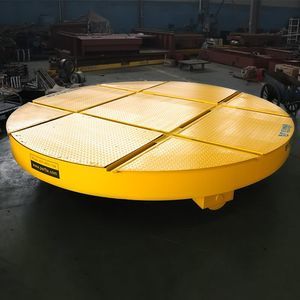

The steel industry turntable heavy transfer traverser is designed for cross rails to turn with 90 degree in warehouse and plants. Its working principle is that there are also rails installed on the turntable, when the rail transfer cart runs on the turntable transfer traverser, the turntable can be rotated automatically or manually until precisely connecting with the destination rail, then the transfer cart runs on the vertical rail. The turntable transfer traverser is suitable for many occasions, such as ring rails, vertical rails, and crossing rails etc. The turntable system run steadily and has features as high rail jointing accuracy and can meet full automatic electrical operation.
Detailed Photos

Product Parameters
Model BXC-2t BXC-5t BXC-10t BXC-16t BXC-20t BXC-25t BXC-30t BXC-40t BXC-50t BXC-63t BXC-80t BXC-100t BXC-150t
Rated Load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size (mm) Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) 270 270 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Total Power(kw) 2 3 2.2 2.2 2.2 3 3.5 4 5 6.3 8 10 15
Battery Capacity(Ah) 150 180 180 200 220 220 260 300 330 400 400 440 600
Battery Voltage(V) 48 48 48 48 48 48 48 48 48 48 72 72 72
Running Time When Full Load 4.32 5.4 4.8 4.3 4 4 3.5 3.6 3.3 3 3.6 3.2 2.9
Running Distance for One Charge(km) 6.5 8.1 7.2 5.1 4.8 4.8 4.2 4.3 4 3.6 4.3 3.8 3.2
Max Wheel Load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100


2. Advantages
Our turntable transfer traverser is custom-engineered and manufactured in different sizes based upon the application. Our turntable transfer traverser is extremely rugged, well balanced, and suitable for the diversified requirements of transit and freight maintenance shops.
With minimal routine maintenance needed, our turntable transfer traverser is known for their long-term reliability and safety. They are available to rotate a single truck in 90° increments and can be either manual or motorized in their operation.


3. Design Principle
Our engineers spend the time asking the right questions to understand your unique turntable application. With thoughtful consideration to many factors of the working environment, we designs the equipment with a focus on easy maintainability to maximize equipment up time.
To reduce installation time and costs, turntables are assembled and tested in our factory before installing on site. With a full team of rail service technicians, and a full-service parts and engineering department, our company stands behind our product and is here for our clients over the lifetime of the equipment.

4. Customizable
Mechanical Options Include:
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ Floor Rail
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle
Application

5. Application of Heavy Transfer Traverser

BETTER conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!




5. Other Products
Every product is designed to meet the specific requirements of each client. Our special solution to the design of each product includes a detailed review of the client requirements, which is used to develop the Functional Specification of the product.
Working closely with you, we will incorporate our years of design experience into the final design of the product to assure complete customer satisfaction.
Contact our office at +86-373-3020116 with your specifications and requirements and we will be very pleased to provide you with a proposal.
