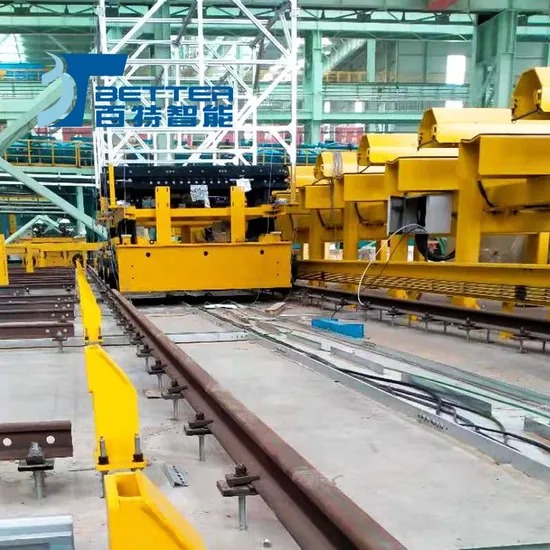

300ton Cable Reel Powered Trolley Coil Handling Transporter
300ton Cable Reel Powered Trolley Coil Handling Transporter
300ton Cable Reel Powered Trolley Coil Handling Transporter
300ton Cable Reel Powered Trolley Coil Handling Transporter
300ton Cable Reel Powered Trolley Coil Handling Transporter
300ton Cable Reel Powered Trolley Coil Handling Transporter
300ton Cable Reel Powered Trolley Coil Handling Transporter
300ton Cable Reel Powered Trolley Coil Handling Transporter
300ton Cable Reel Powered Trolley Coil Handling Transporter
300ton Cable Reel Powered Trolley Coil Handling Transporter
Specifications
MOQ :
1 Piece
Price :
US$3000-3500
Place of Origin :
Xinxiang
Brand Name :
BETTER
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time :
15-30 days
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Model Number :
BJT
Product Name :
Battery-Power Transfer Cart
Usage :
Heavy Duty Material Transportation
Load Capacity :
1-300ton
Special Function :
Anti-Explosion,Heat-Resistant,Lifting,Customized
Material :
Steel
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Specification :
2000*2000*500
Trademark :
BETTER
Origin :
Xinxiang
HS Code :
84289090
Production Capacity :
50 Sets/Month
Description
300ton Cable Reel Powered Trolley Coil Handling Transporter

Product Description

This cable reel powered coil transporter is engineered for high-capacity industrial logistics, delivering uninterrupted performance through a continuous power supply system. Capable of handling steel coils up to 300 tons, it combines reinforced V-shaped cradles with an intelligent hydraulic positioning mechanism to ensure secure loading and millimeter-level precision.

Ideal for steel mills, logistics hubs, and ports requiring continuous operation, the transporter seamlessly integrates with crane systems and production lines to streamline material flow. By optimizing loading, unloading, and transfer processes, it enhances operational safety while boosting logistics efficiency by approximately 40%, establishing itself as an essential component in modern heavy-industry supply chains.

Detailed Photos


Product Parameters

Model BJT-2t BJT-5t BJT-10t BJT-16t BJT-20t BJT-25t BJT-30t BJT-40t BJT-50t BJT-63t BJT-80t BJT-100t BJT-150t
Rated Load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size (mm) Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter(mm) 270 270 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 50 75 75
Running Speed(m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 20 20 20 18
Motor Power(kw) 0.8 0.8 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running Distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel Load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100
300ton Cable Reel Powered Trolley Coil Handling Transporter

FAQ


What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.

Packaging & Shipping

Certifications


300ton Cable Reel Powered Trolley Coil Handling Transporter
