V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport
V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport
V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport
V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport
V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport
V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport
V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport
V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport
Specifications
Model Number :
BXC
Product Name :
Battery-Power Transfer Cart
Brand Name :
BETTER
Model NO. :
BXC
Price :
US$3000-3500
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Special Function :
Anti-Explosion,Heat-Resistant,Lifting,Customized
Trademark :
BETTER
Supply Ability :
50 Sets/Month
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Production Capacity :
50 Sets/Month
Battery Voltage :
48-72V
Running Speed :
0-25m/min
Delivery Time :
15-30 days
Specification :
2000*2000*500
HS Code :
84289090
Payment Terms :
L/C,T/T
Material :
Steel
Wheel Diameter :
270-600mm
Place of Origin :
Xinxiang
Usage :
Heavy Duty Material Transportation
MOQ :
1 Piece
Load Capacity :
1-300ton
Origin :
Xinxiang
Description
V Shaped Frame AGV Transfer Cart For Transport Materials Coil

V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport

Product Overview

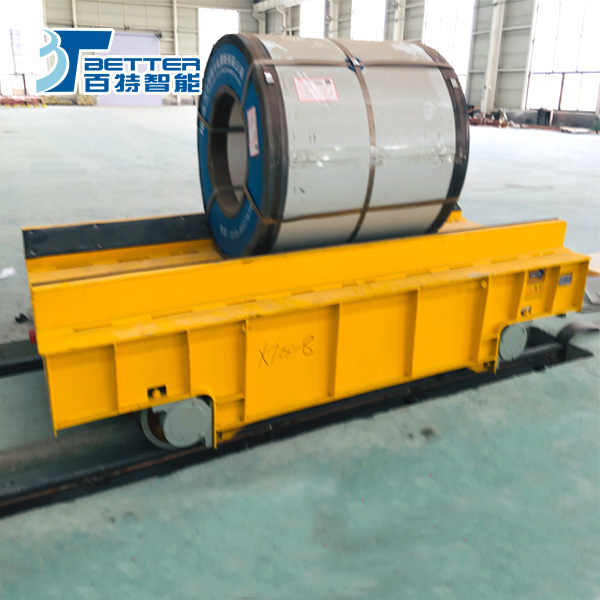

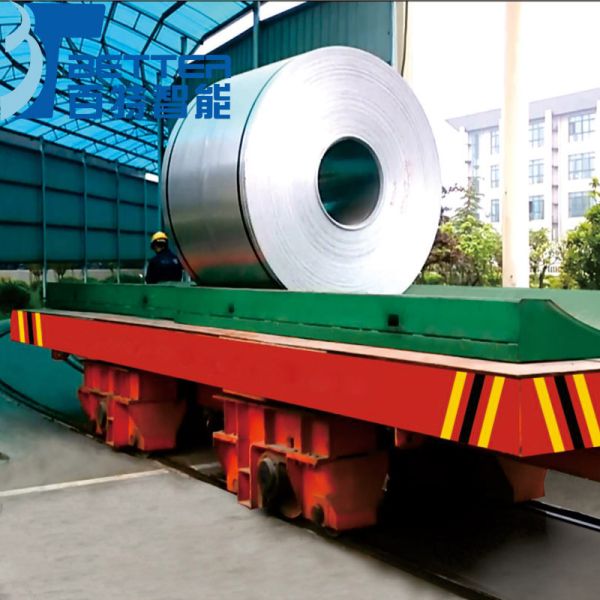

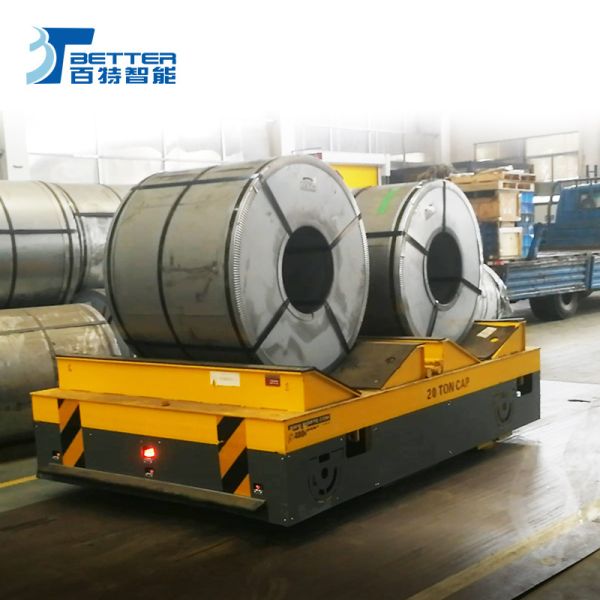

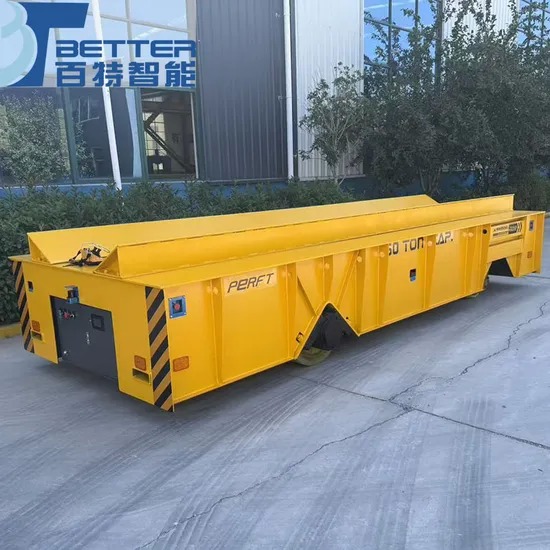

The V-shaped Frame AGV Transfer Cart is a battery-powered electric transfer trolley designed specifically for transporting material coils. The battery is installed inside the flat cart, providing power to DC traction motors through an electrical control system that manages start, stop, advance, retreat, and speed control functions.

This battery-powered rail transfer cart serves as an efficient electric transport solution within factory environments. It features a simple structure, convenient operation, large carrying capacity, easy maintenance, and long service life. Due to its convenience, economy, practicality, and easy cleaning advantages, it has become the preferred transport cart for moving heavy objects along fixed routes.

V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport

V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport

Product Specifications
ModelBXC-2tBXC-5tBXC-10tBXC-16tBXC-20tBXC-25tBXC-30tBXC-40tBXC-50tBXC-63tBXC-80tBXC-100tBXC-150t
Rated Load (t)25101620253040506380100150
Table Size Length (mm)20003500360040004000450045005000550056006000650010000
Table Size Width (mm)1500200020002000220022002200250025002500260028003000
Table Size Height (mm)4505005005505506006006506507008009001200
Wheel Base (mm)1200250026002800280032003200380042004300470049007000
Rail Inner Gauge (mm)1200143514351435143514351435143514351435180020002000
Wheel Diameter (mm)270270300350350400400500500600600600600
Wheel Quantity4444444444448
Ground Clearance (mm)50505050505050505075757575
Running Speed (m/min)0-250-250-250-200-200-200-200-200-200-200-200-200-18
Total Power (kw)232.22.22.233.5456.381015
Battery Capacity (Ah)150180180200220220260300330400400440600
Battery Voltage (V)48484848484848484848727272
Running Time When Full Load (hours)4.325.44.84.3443.53.63.333.63.22.9
Running Distance for One Charge (km)6.58.17.25.14.84.84.24.343.64.33.83.2
Max Wheel Load (KN)14.425.842.664.577.794.5110.4142.8174221.4278.4343.8265.2
Recommended Rail ModelP15P18P18P24P24P38P38P43P43P50P50QU100QU100
Product Image
V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport
Customization Information
How can Transfer Carts be customized?

Please provide the following information for customization:

  • What load or product will be transferred onto the cart?
  • What is the weight of the heaviest lift or load?
  • What are the dimensions? (Length; Width; Height)
  • What is the trip time and frequency? (# of Trips per shift, Shifts per day)
  • What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
  • What is the distance to travel?
  • Other relevant information or using conditions

V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport

V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport

Key Advantages
  • Low noise - Operates with minimal noise levels
  • Maximum safety - Offers guarantee of maximum safety for operators and materials handled
  • Easy for operation - These vehicles are easy to drive and operate immediately upon delivery
  • Easy to implement into manufacturing process - Operates on standard floors without complex or permanent installation
  • Suitable for All Kinds of Weight - Excellent for handling both small and extremely large loads with payloads up to 300 tons per trolley

V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport

Packaging & Shipping

Standard Container Shipping: For equipment with length less than 6m and width less than 2.2m, transported by 20ft container. For length between 5.9m and 12m, transported by 40ft container.

Multiple Units: 2-3 sets can be transported by full container. Single sets can be transported by LCL Container.

Oversized Equipment: For width beyond 2.2m with length less than 12m, transported by flat rack (20 or 40 ft). Equipment beyond these dimensions requires bulk cargo shipping.

V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport

V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport

Certifications

Our products meet industry standards and certification requirements. Please contact us for specific certification details.
