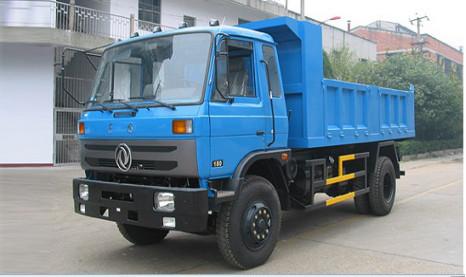

Dongfeng Dump Truck 4*2 Cummins engine
Dongfeng Dump Truck 4*2 Cummins engine
Specifications
Brand Name :
Dongfeng
Model Number :
EQ3126
Place of Origin :
China
MOQ :
1 unit
Price :
USD25800/unit
Payment Terms :
T/T
Delivery Time :
30 working days
Packaging Details :
in container
dimension :
6800×2462×2690 mm
wheelbase :
4200 mm
power :
190hp
tire :
12R22.5
emission :
Euro 3
Description

Dongfeng Dump Truck 4*2 Cummins engine

Dongfeng Dump Truck 4*2 Cummins engine

Drive mode 4×2
Engine Model Cummins B190 20
Type 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
Max. power(Kw/rpm) 140/2500
Max. torque(N.m/rpm) 670/1300-1500
Displacement(ml) 5900
Emission National III
Type OF Fuel Diesel
Compression ratio (17.3±0.5):1
Cab CBP12-G 1 berth
Capacity 3 persons
Gearbox Type Fast 8JS118
Max. torque(N.m) 1180
Gear ratio 8 forward &1reverse 11.40 7.94 5.63 4.06 2.81 1.96 1.39 1.00/11.35
Clutch Φ395mm Diaphragm Spring Clutch
Frame Height×Width× Thickness(mm) 300×90×(8+6)
Frame width 940 (front ) , Frame width 810 ( rear )
No of Spring leaves 8/10+7
Tyre Size 10.00-20, 10.00R20
Air conditioner No
Dimensions Overall dimension (mm) 6800×2462×2690
Inner Dimension (mm) 4800×2300×900
Wheel base (mm) 4200
Front/Rear tread(mm) 1940/1860
Appr./Depa. angel (°) 25/28
Performance Max. speed(km/h) 85
Max. gradeability(%) 25
Min. turning diameter(m) 16
Mass Payload (kg) 13,000
Curb weight(kg) 6,700
G.V.W (kg) 19,700
