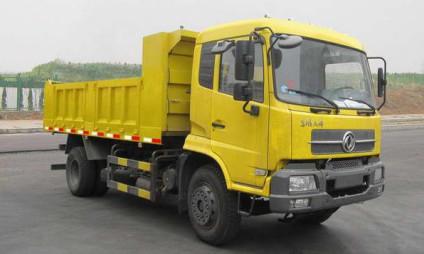

Dump Truck 4*2 Cummins engine 20tons
Dump Truck 4*2 Cummins engine 20tons
Specifications
Brand Name :
Dongfeng
Model Number :
DFL3120B1
Place of Origin :
China
MOQ :
1 unit
Price :
USD33650/unit
Payment Terms :
T/T
Delivery Time :
30 working days
Packaging Details :
in container
dimension :
8000×2500×2960 mm
wheelbase :
4500 mm
power :
190hp
tire :
12R22.5
emission :
Euro 3
Description

Dongfeng Dump Truck 4*2 Cummins engine

Dump Truck 4*2 Cummins engine 20tons

Drive mode 4×2
Engine Model Cummins B210 20
Type 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
Max. power(Kw/rpm) 155/2500
Max. torque(N.m/rpm) 700/1500
Bore /Stroke(mm) 102×120
Displacement(ml) 5900
Type of fuel Diesel
Compression ratio 17.5:1
No. of valves 2
Cab D530 one and a half row
Capacity 3 persons
Gearbox Type Fast8JS118
Max. torque(N.m) 1180
Gear ratio 8 forward/1 reverse 11.40 7.94 5.63 4.06 2.81 1.96 1.39 1.00 / 11.35(R)
Clutch Φ395mm push-type diaphragm spring clutch
Frame H×W× T(mm) 300×800×(8+6)
No of Spring leaves 8/10+8
Tyre Size 11.00R20
Air conditioner A/C
Dimensions Overall dimension (mm) 8000×2500×2960
Inner dimension (mm) 5400×2300×800
Wheel base (mm) 4500
App./Dep. angel (°) 25/20
Performance Max. speed(Km/h) 90
Mass Payload (Kg) 13,000
Curb weight(Kg) 8,735
G.V.W (Kg) 21,735.00
