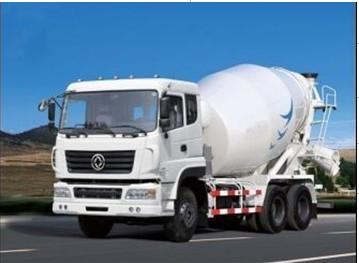

White Concrete Mixer Truck 8m3 10m3 12m3 14m3 Volume For Mixer Concrete
White Concrete Mixer Truck 8m3 10m3 12m3 14m3 Volume For Mixer Concrete
Specifications
Brand Name :
dongfeng
Place of Origin :
china
MOQ :
1
Price :
USD40000-70000.00
Supply Ability :
300-500 units per unit
Delivery Time :
30 working days
Packaging Details :
in nude
Engine :
Cummins engine
tanker :
carbon steel
using :
mixer concrete
color :
mobile cement mixer trucks
drive mode :
6X4
Volume :
8m3-14m3
Description
Dongfeng Concrete Mixer Truck EQ5251GJB
Specification
Drive mode 6×4
Engine Model Cummins L340 33
Type 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
Max. power(Kw/rpm) 250/2200
Max. torque(N.m/rpm) 1350/1400
Displacement(ml) 8900
Type of fuel Diesel
Compression ratio (16.6±0.5):1
Cab D310-S1 single berth
Gearbox Model 9JS150T-B
Max.torque(N.m) 1500
Clutch Φ430mm diaphragm spring clutch
Frame Height×Width× Thickness(mm) 300×90×(8+6)
Frame width 940 (front ), Frame width 810 ( rear )
Tyre Size 11.00-20
Air conditioner A/C
Dimensions Overall dimension (mm) 8840×2500×3930
Wheel base (mm) 3650+1350
Front/Rear tread(mm) 1986/1860
Appr./Depa. angel (°) 30/18
Min. ground cleanrance(mm) 250
Special function Mixing capacity(m³) 9
Angel of inclination of mixing drum(°) 13
Geometric volume(m³) 14.3
Filling ratio(%) 58
Feeding speed(m³/min) ≥3
Discharge speed(m³/min) ≥2
Residual ratio(%) ＜0.8
Collapsed degree range(mm) 40-230
Hydraulic oil pump Rexroth A4VTG090
Hydraulic motor Rexroth AA2FM90
Max peak 45 MPa System Delivery capacity : 90ml/rev
Hydraulic speed reduction gear PMP (PMB6.5sp)
Max operating torque: 65000 N.m
Reduction gear ratio ratio: 1:120.3
Oil tank Emmegi or Binglun with 18L capactiy
