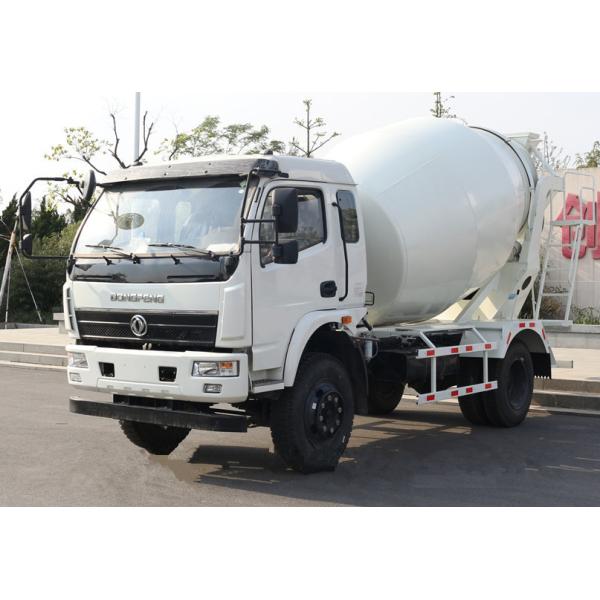

6 Wheel 4x2 Concrete Mixer Truck EQ3060 With 3 - 4m3 Capacity ISO Approved
6 Wheel 4x2 Concrete Mixer Truck EQ3060 With 3 - 4m3 Capacity ISO Approved
Specifications
Brand Name :
Dongfeng
Model Number :
EQ3060
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
USD14000
Mix capacity :
4m3
Drive type :
4x2
Engine :
140hp
Wheelbase :
3800mm
tanker material :
16MnQ345
Water tanker :
400L
name :
concrete transit mixer truck
Description

6 wheel 4x2 Concrete Mixer Trucks , 3 - 4m3 Transit Mixer Trucks

Dimension(mm)
Outer 7570*2220*2910
Wheel Base(mm) 3800
Tread(F/R)(mm) 1750/1586
F/R suspension 1210/1960
Weight(kg)
Curb Weight(kg) 3645
Payload(Kg) 6000
G.V.W(kg) 8125
Engine
Engine type Cummins EQB140-30
Emission standard Euro III
Power 103/2500
Torque 502/1500
Bore*Stroke(mm) 107*124
Displacement(ml) 3922
Mixing specification
Mixing capacity(m³) 4
tanker material 16MnQ345
Angel of inclination of mixing drum(°) 16-18
Feeding speed(m³/min) 2
Discharge speed(m³/min) 2
Residual ratio(%) ＜0.7
Mixing speed(r/min) 0-18
Transport mixing speed(r/min) ‘3-4
Water tanker(L) 400
