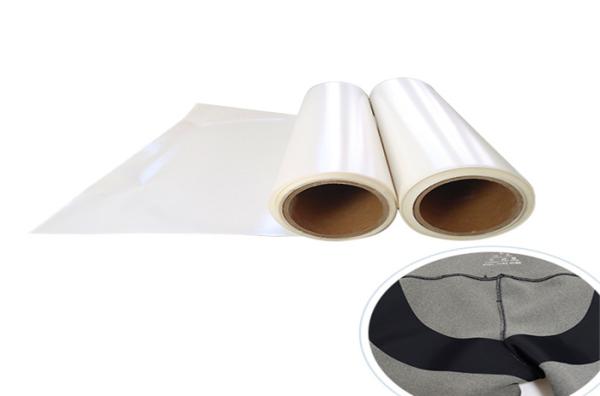

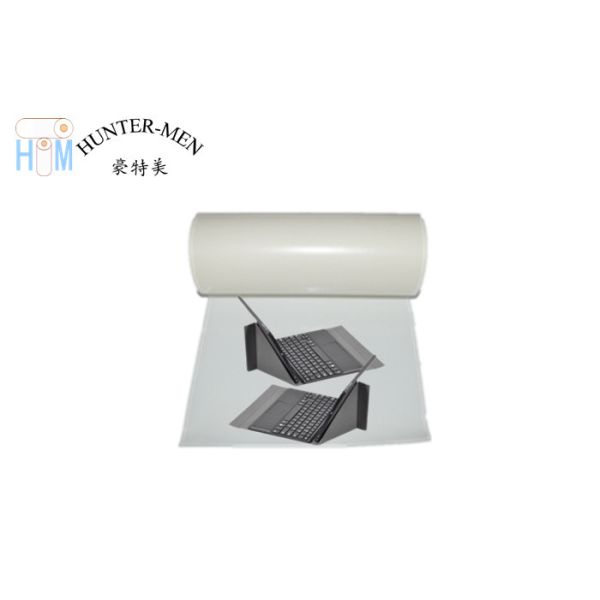

TPU Adhesive Plastic Film Low And High Temperature Cyclic Test
TPU Adhesive Plastic Film Low And High Temperature Cyclic Test
Specifications
Brand Name :
Hunter Men
Model Number :
HT02-08
Certification :
SGS,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
50 rolls
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, D/A, D/P,Alibaba，Paypal
Supply Ability :
300rolls per day
Delivery Time :
1-15 work days
Packaging Details :
100 Yards/Carton or as your demands
Structure :
TPU + Glassine Release Paper
Name :
TPU Adhesive Plastic Film
Proportion :
1.18±0.02g/cm³
Melt Flow Index: :
25±5g/10min（Condition:ASTMD1238-04）
Melt Flow Index :
28g/10min
Operate Temperature :
100-160℃
Thickness(mic) :
50mic,80mic,100mic,150mic
Width(mm) :
1400mm
Length(Yards) :
100 Yards per roll or as your demands
Normal Size :
140cm*100yards per roll
Description

Milky Translucent Resistance 24Hours Low and High Temperature Cyclic Test TPU Adhesive Plastic Film

Description:

HT02-08 is thermoplastic material,it can be heat plasticized adhesive repeated. It has excellent adhesion for textile, polyester, cotton, blended fabric, TPU,PVC,PC,ABS and has good resilience, elasticity, heat resistance, cold resistance and water resistance.HT02-08 possesses excellent chemical additives resistant, and it can resist 24hour -20℃ to + 70℃ cyclic test.

Physical Characteristics:

Color Milky Translucent Release Liner Glassine Release paper
Density 1.18±0.05g/cm³ Conventional thickness 50mic,80mic,100mic,150mic
Melt Flow Index

28g/10min

Conventional Width 140cm
Hardness (Shore A) 96A Length 100yards
Melt Point 90℃ Normal Size /Rolls

140cm(width)*100yards(Length)

Recommended Bonding Conditions:

First Backing Operate Second Hot Pressure Operate
Backing Temperature 100℃-120℃ Hot Pressure Temperature 120℃-160℃
Hot Pressing Time 1-5seconds Hot Pressure Time 5-15seconds
Pressure 0.6mpa Pressure 0.6mpa

Applications:

HT02-08 widely applied in TPU and leather lamination,moblie phone case, metals,automobile trims,Ic card sealing, PVC lamination etc.

TPU Adhesive Plastic Film Low And High Temperature Cyclic Test

How to Use:

Hot melt adhesive film is usually processed by iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot pressure machine.The processing structure have two layers of material, three layers of materials or more layers.


Two Layers :

TPU Adhesive Plastic Film Low And High Temperature Cyclic Test

Three Layers :

TPU Adhesive Plastic Film Low And High Temperature Cyclic Test

Packaging Details:

1PC/PE FILM, 100yard/roll, 2 rolls/CTN, or it's up on the customer's option

Delivery Detail:

Shipped in 1-15 days after payment

About Us:

TPU Adhesive Plastic Film Low And High Temperature Cyclic Test Shenzhen CIty Hunter-Men Plastics Products CO.,LTD as a professional manufaturer was established in 2013, with rich experience specializing in R&D and producting all kinds of hot melt adhesive products. Owing varied production machines to match custom demands. Mainly Markets are Europe, America, South Asia, South Africa and so on.

Our factory has passed ISO9001:2015 quality control certification system.
The ISO9001 system control standards are strictly enforced from the production of raw materials to the production of film.
TPU Adhesive Plastic Film Low And High Temperature Cyclic Test TPU Adhesive Plastic Film Low And High Temperature Cyclic Test TPU Adhesive Plastic Film Low And High Temperature Cyclic Test TPU Adhesive Plastic Film Low And High Temperature Cyclic Test TPU Adhesive Plastic Film Low And High Temperature Cyclic Test
Film Casting Machine Film Coating Machine Film&Tape Slitting machine Fully Automatism Number Control Slitter Fully Automatism Number Control Guillotine

Why Choose Us:

1, more than 10 years experience in production.

2, well-known products: Sichuan Famous Brand.

3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise

4, Excellent quality and Competitive price, OEM is available.

5, Stable supply: an extensive range of stock.

6, The whole process from material to end products is under supervision.
